  • 24 W
    Wattage 24 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 2880 lm
    Lumens 2880 lm
  • Ø90 mm
    Cut Out Dimensions Ø90 mm

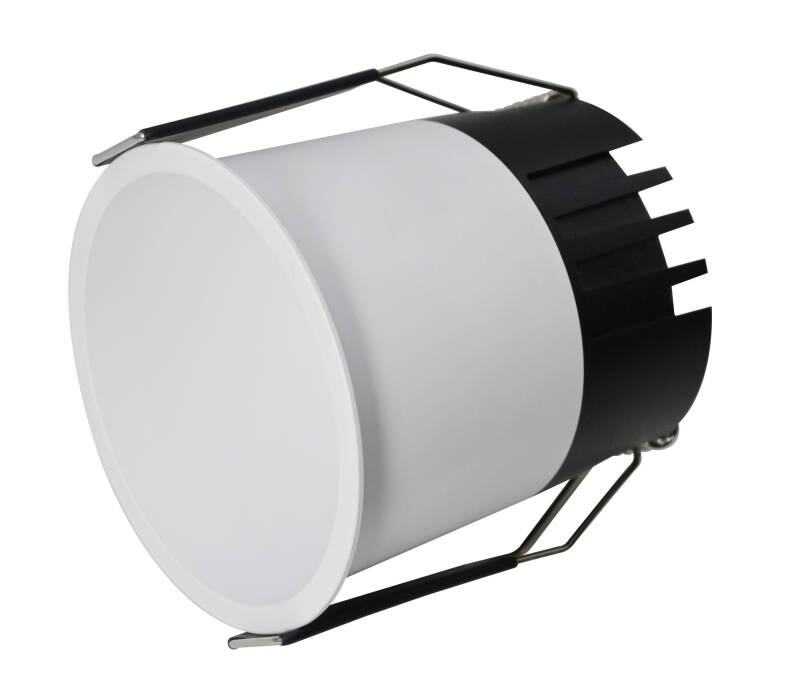

Image of Deep LED Downlight 24W Ø90 mm Cut Out
  • 24 W

    Wattage

    24 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 2880 lm

    Lumens

    2880 lm

  • Ø90 mm

    Cut Out Dimensions

    Ø90 mm

  • 102 mm

    Diameter

    102 mm

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

  • 85 mm x Ø102 mm

    Dimensions

    85 mm x Ø102 mm

  • 85 mm

    Height

    85 mm

  • IK05

    IK Protection

    IK05

  • 120 lm/W

    Luminous Efficiency

    120 lm/W

  • 36º

    Beam Angle

    36º

Deep LED Downlight 24W Ø90 mm Cut Out

Download technical datasheet

Ref. Ledkia: 168120

Colour Temperature Neutral White 4000K

Colour Black

Pre-Order, estimated shipping from 01/11/2025

£19.99

VAT included
Energetic efficiency

Pre-Order, estimated shipping from 01/11/2025

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 Day Returns

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-sales service.

    • 24h Free Delivery

      If you place your order today before 2:30 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £ 49.99 (incl. VAT).


      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-sales service.

Dimensions

  • Cut Out DimensionsØ90 mm
  • Diameter102 mm
  • Height85 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Technical Information

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle36º
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, UKCA
    • ColourBlack
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index90
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature4000K
    • Current Intensity600 mA
    • DimmableNo
    • Driver Intensity600 mA
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension30 V-40 V
    • Electrical Insulation ClassII
    • Fitting MaterialAluminium
    • Frequency50-60 Hz
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK05
    • InstallationRecessed
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • Light ColourNeutral White
    • Lumens2880 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency120 lm/W
    • ShapeCircular
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage24 W

  • Product Data

    • Guarantee3 years
    • Product SeriesDeep

  • Product Information

    • LocationOutdoor, Indoor
    • Replaceable Light SourceNo
Big discounts on ceiling fans

Description

The Deep LED Downlight 24W Ø90 mm Cut Out is designed for technical applications requiring powerful, directed, and glare-free lighting. This recessed spotlight is optimised for spaces where visual comfort is a priority, such as lobbies, hotel rooms, hallways, or bathrooms, thanks to its advanced technology and “deep” design that minimises the direct impact of the light source on the viewer.

Anti-glare design and professional performance

Thanks to its deep reflector design and the use of high-performance COB LED technology, this spotlight offers a concentrated light beam with a 36° beam angle, ideal for accent or spot lighting. The depth of the reflector, combined with well-controlled optics, achieves an estimated UGR below 13, making it an excellent choice for professional environments where visual comfort is paramount. Additionally, its CRI of 90 guarantees sharp and accurate color rendering.

Robust construction

Made of high-quality aluminum, this downlight features a compact and efficient structure, with an IP65 protection rating and IK05 impact resistance. These characteristics make it suitable for both indoor use and humid or splash-prone areas. Installation is quick and secure thanks to its spring mounting system and a cutout diameter of Ø75 mm.

Energy efficiency and warranty

With a power consumption of 24W and a luminous efficacy of 120 lm/W, this spotlight provides up to 2880 lumens of real output. It operates directly on 220V AC and includes an external driver with an output range of 30V-40V and a constant current of 300 mA. The LIFUD driver can be replaced with a dimmable TRIAC, 1-10V, or DALI driver, adapting to the specific needs of any project.
