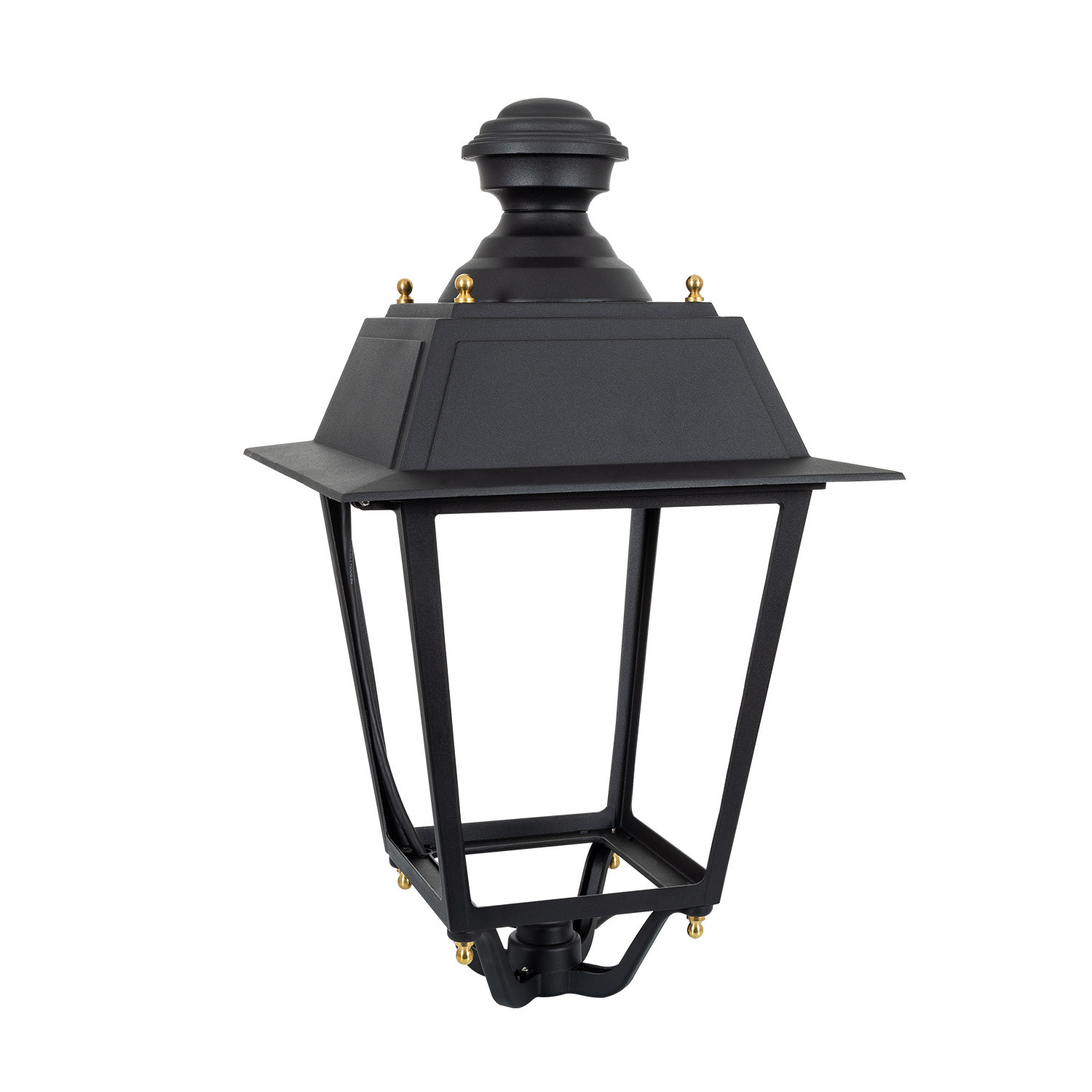

40W LED Street Light 5 Step Programmable LUMILEDS PHILIPS Xitanium Villa

Energetic efficiency
Download technical datasheet

Ref. Ledkia: 70514

Ref. Fab: VLL-40W-PHLPS-XTNM-5STP-SM-BN

Choose Colour Temperature

Cool White 4000K

Choose Optic

Symetric 120ºx120º

£336.39

20% VAT included

Buy now, pay later

Credit payment

You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


Custom-made products and cut-to-size strips are excluded.


Full conditions here: After-sales service.

If you place your order today before 16:30h, delivery within 24/48h (working days).


Shipping is free on purchases over £ 49.99 (incl. VAT).


Full conditions here: Delivery methods.

payment method image 1

payment method image 2

At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


More information: Payment methods.

Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


You will find the exact product warranty in the technical details.


Full conditions here: After-sales service.

Dimensions

  • Total Weight:10,2 Kg
  • Size:440x766 mm

Downloads

  • Technical Data Sheet PDF

  • Xitanium Outdoor LED Driver

Certificates and Stamps

Certificate

Energy Efficiency

Efficiency energeticRegulation 2021
Efficiency energeticRegulation 2023

Technical Specifications

  • Power:40 W
  • Power Factor:0.95
  • Voltage:220-240V AC
  • Multi-Voltage:100-240V AC
  • Frequency:50-60 Hz
  • Protection Class:I
  • Dimmable:Programmable
  • Light Source:LUMILEDS SMD5050
  • Number of LEDs:24
  • Lumens:6000 lm
  • Luminous Efficiency:150 lm/W
  • LED Performance:160 lm/W
  • Energy Efficiency 2021 (UE-1369/2017):A+
  • Energy Efficiency 2023 (UE-2019/2015):C
  • Beam Angle:140ºx60º / 120ºx120º
  • Use:Outdoor
  • IP Protection:IP66
  • IK Protection:IK09
  • FHSINST:Less than 0,1%
  • Material:Aluminium, Glass
  • Size:440x766 mm
  • Fixing Diameter:Ø77 mm
  • Total Weight:10,2 Kg
  • Working Temperature:-20°C ~ +45°C
  • Driver:PHILIPS Xitanium
  • Life Span:100,000 Hours
  • Warranty:5 Years
  • Certifications:CE & RoHS, ENEC
  • Brand ComponentLUMILEDS

Our advantages

  • Team of experts at your service

    Personal customer service

  • 24-hour express delivery

    Stock of more than 12,000 references

  • Warranty up to 5 years

    Our professionals guarantee you the highest quality and reliability

  • Best price guarantee

    Compared to the most outstanding websites in the industry

Description

The 40W LED Street Light 5 Step Programmable LUMILEDS PHILIPS Xitanium Villa is one of the latest generation of luminaires, offering instantaneous ignition thanks to its LED technology, as well as great power. It is the ideal replacement for the old discharge lamps, improving the quality of light and significantly reducing energy consumption.


Characteristics of the 40W LED Street Light 5 Step Programmable LUMILEDS PHILIPS Xitanium Villa

Built into the LUXEON 5050 2D light source. The light source is protected with tempered glass with an IP66 protection factor that makes it weatherproof. Lumileds technology guarantees high light output with extreme durability. Lumileds is a company dedicated to the development, manufacture and distribution of lighting and also holds over 200 patents related to LED technology.

The body of the luminaire has been manufactured using the injection method to guarantee the optimum quality of the heatsink, in high quality aluminium. It has an interior hinge that improves its aesthetics without losing its versatility. It has been treated with a chemical and mechanical anti-corrosion treatment that is resistant to UV rays, which further improves its aesthetic durability. In addition, for greater safety the luminaire has a surge protector.

Characteristics of the 5 Steps Dimmable XITANIUM Driver

A LED driver transforms the alternating current from the mains into direct current suitable for shining the LED chips. The Xitanium Driver that it incorporates is from the prestigious company PHILIP, one of the most innovative and prestigious brands in the lighting industry. This driver is specially designed for Public Lighting. This range of drivers offers a unique reliability and flexibility, providing a high performance and optimum efficiency of LEDs. The entire range of Xitanium drivers incorporates an IP65 housing that protects against humidity, vibrations and temperature, guaranteeing maximum durability. In addition, it includes both over-temperature and surge protection.

In the case of this driver incorporates 5 steps, is to say 5 phases of regulation. This type of technology is called Fixed Time Based Dimming (FTBD), the 5 regulation phases are assigned a power and a time duration. In this way, when the traffic or the passers-by are practically null, the amount of light that the luminaire emits is reduced, adapting itself intelligently to the different night scenarios and reducing considerably the electrical consumption.

Reducing energy consumption means significant savings for any urban centre. Enjoy the best street lighting with the different options of our Villa Luminaire on our online store Ledia.

By default the luminaire driver is programmed in 4 steps:

Step 1: First hour → Brightness at 60%.

Step 2: Second hour → Brightness at 70%.

Step 3: Third hour → 80% Gloss

Step 4: Fourth hour → 90% Brightness

Step 5: Fifth hour to shutdown → Brightness at 100% Step 6: Fifth hour to shutdown → Brightness at 100% Step 7: Fifth hour to shutdown → Brightness at 100% Step 8: Fifth hour to shutdown

*Can be programmed on customer request

Thanks to our programmable luminaires, the brightness changes automatically to intelligently adapt to different night-time scenarios.

There are two types of fixture for this 40W Villa LUMILEDS PHILIPS Xitanium Programmable 5 Steps LED Luminaire. The fixing to the luminaire bracket will have a diameter of 27 mm and the fixing of the bracket to the column has a diameter of 77 mm


* The colour code of the luminaire is RAL 9011

* To install the LED Villa Luminaire on some columns you need the 'LED Villa Column Fixing Bracket' (see accessories).
