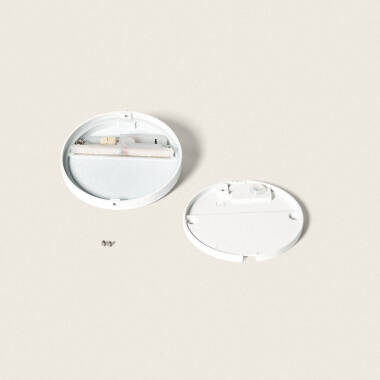

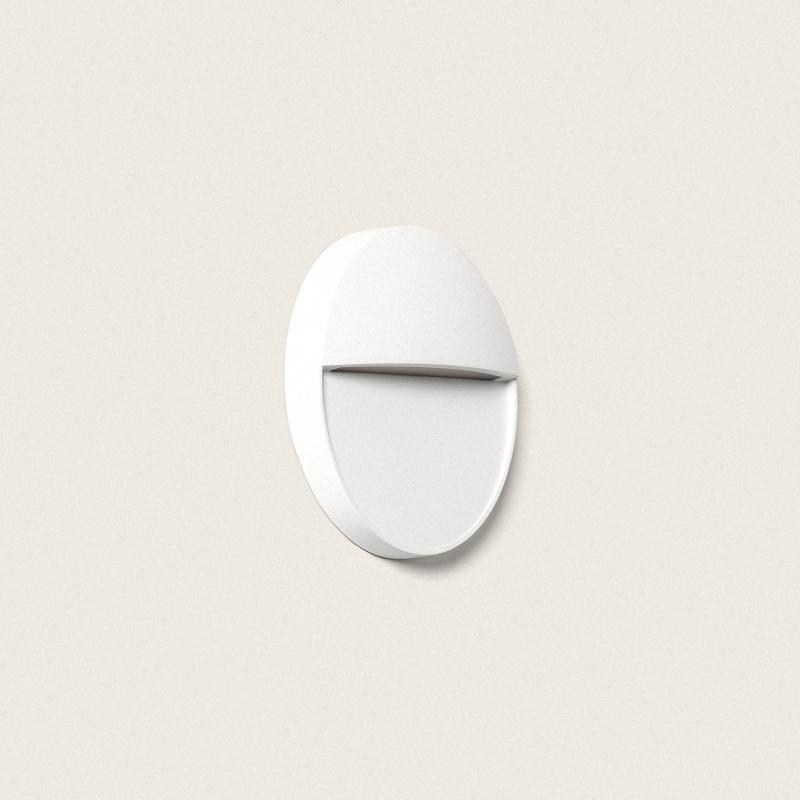

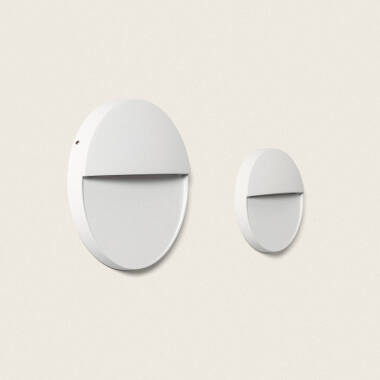

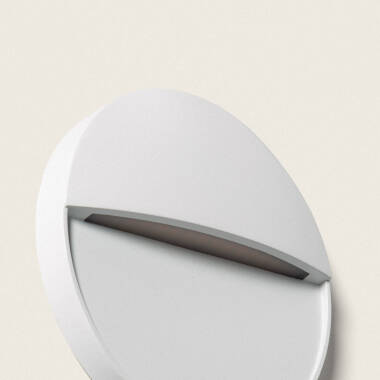

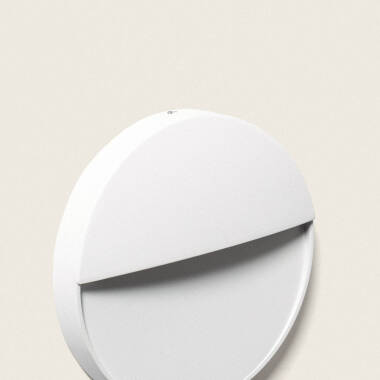

Jade 3W Round Outdoor Selectable CCT LED Wall Light
£17.99
Ref: 112432
Colour White
In Stock, delivery in 24/48h
Buy before 2:30 pm we’ll ship it today.
Buy now, pay later
Credit paymentDimensions
- Diameter110 mm
- Height25 mm
Downloads
112432_230604_Datasheet_en_GB
Instruction Manual
DoC_112432_230604
Certificates and Stamps
Technical Specifications
Electrical Features
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceSMD
- No. Of Lights1
- Remote ControlNo
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage3 W
Mechanical Features
- Ambient Working Temperature-20 °C~+45 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- DirectionalNoAbility to move or rotate the spotlight to direct the light as desired.
- Fire RatedNoIndicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
- IK ProtectionIK05Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationWall, Surface
- IP RatingIP54The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor, Indoor
- Working Temperature-20 °C~+45 °CInternal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
LED Features
- Beam Angle100ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Temperature2200K - 3000K - 4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours40.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourCool White
- Lumen300 lm
- Luminous Efficiency100 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Number of LEDs28
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialAluminium
Driver Information
- WifiNo
Description
The Jade 3W Round Outdoor Selectable CCT LED Wall Light is a compact wall lamp with a round, shallow profile and a discreet front visor that integrates cleanly on the wall; its integrated LED and selectable CCT support project-level control of the light tone.
General information about Jade 3W Round Outdoor Selectable CCT LED Wall Light
This wall light resolves as a circular, surface-mounted piece in aluminium, designed for installation on the wall with a single point of light. The selectable colour temperature (2200 K, 3000 K, 4000 K) and SMD LED source focus the piece on practical, project-driven lighting decisions without losing its minimal, architectural presence.
Design and visual presence
The thin 25 mm body projects little from the wall, creating a neat disc that reads clearly from the front. A shallow upper visor defines the aperture while keeping the geometry contained. The aluminium housing reinforces a precise outline, helping the lamp to sit flush within vertical compositions and circulation areas.
Use and application

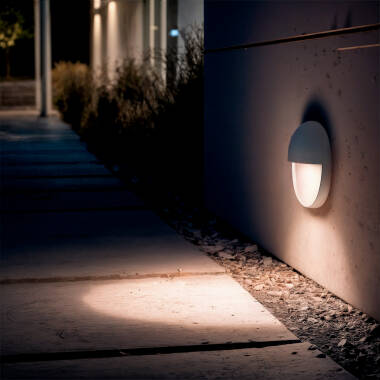

Suitable for indoor and outdoor use, this lighting solution supports routes and transition zones in decorative projects. The format works naturally in stairs, hallways, hotels and garden perimeters where a defined wall element is required. The wall installation and selectable CCT allow alignment with the visual needs of each space.
Key benefits
- The selectable 2200 K / 3000 K / 4000 K range adapts the tone to each project with a single fixture.
- IP54 protection supports outdoor placement while maintaining a clean, contained presence on the wall.
- Shallow 25 mm projection preserves a tidy profile on circulation walls.
- Aluminium construction offers a clear, material reading with a precise circular geometry.
- One point of light delivers 300 lumen from 3 W for focused, efficient output.
Highlighted specifications
Material: Aluminium; Light source: SMD LED integrated; Colour temperature: selectable 2200 K / 3000 K / 4000 K; Dimensions: 25 mm × Ø110 mm.
Installation and maintenance
Wall installation on surface according to the indicated installation system. Connection to 220–240 V AC as per site requirements. Routine care can be done with a soft, dry cloth to remove dust. Disconnect the power supply before any intervention.
Frequently asked questions
- What type of installation does it require? — Surface-mounted installation on the wall.
- Does it include the light source? — The lamp integrates an SMD LED module.
- What colour temperatures are available? — Selectable 2200 K, 3000 K or 4000 K.
- What are the dimensions? — 25 mm depth and Ø110 mm diameter.
