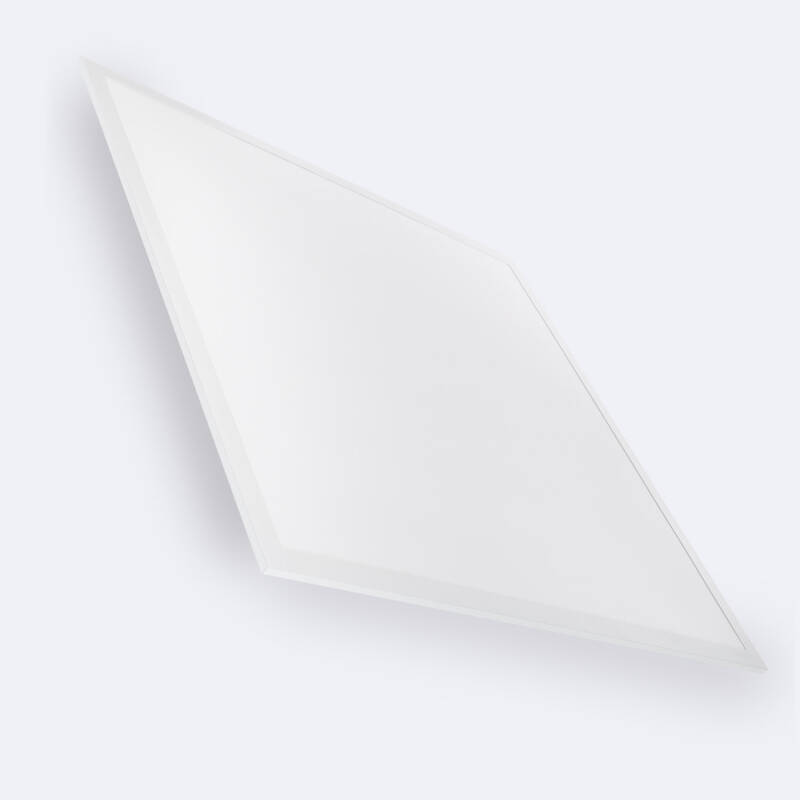

600x600mm 42W Dimmable LED Panel 4000lm PHILIPS Xitanium with Quick Connection Box & Safety Cable

Technical Specifications

• Electrical Features

  • Electrical Insulation ClassII
  • Frequency50-60 Hz
  • Light SourceSMD2835
  • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
    Nominal Voltage220 V - 265 V
  • Type Of DimmingDALI
  • Voltage level required for the product to function correctly.
    Voltage Range220-240V AC
  • Wattage42 W

• Materials and Finishes

  • Box FormatIndividual
  • ColourWhite
  • Fitting MaterialAluminium, PC
  • IncludesDriver
  • Type Of LensOpaal

• LED Features

  • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
    Beam Angle110º
  • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
    Colour Rendering Index80
  • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
    Colour Temperature6000K
  • Low-glare products offer more comfortable lighting, suitable for extended use.
    Glare FactorUGR <19
  • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
    Hours50.000 hours
  • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
    LED Performance110 lm/W
  • Light ColourDaylight
  • Lumen4000 lm
  • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
    Luminous Efficiency95 lm/W
  • Technology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
    No FlickerNo Flicker
  • Power Factor0.9

• Mechanical Features

  • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
    Ambient Working Temperature-20 °C~+50 °C
  • Frame60x60 cm
  • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
    IK ProtectionIK05
  • InstallationFalse ceiling
  • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
    IP RatingIP40
  • LocationIndoor
  • Sensor TypeWithout sensor

• Product Information

  • CertificatesCE, RoHS, TÜV, ENEC
  • Guarantee3 years
  • Product SeriesOrigin

• Driver Information

  • Driver BrandPHILIPS Xitanium
  • Driver Intensity1050 mA
  • Driver Model9290 034 25680
  • Driver Power42 W
  • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
    Driver Tension30 V-42 V
  • Type Of DriverDALI
  • WifiNo
