  • 220-240V AC
    Voltage Range 220-240V AC
  • IP20
    IP Rating IP20
  • 86 mm x 86 mm x 33 mm
    Dimensions 86 mm x 86 mm x 33 mm
  • 86 mm
    Width 86 mm
Image of DALI Scene Panel 4 Button in Aluminium
    Image of DALI Scene Panel 4 Button in Aluminium
    Image of DALI Scene Panel 4 Button in Aluminium
    Image of DALI Scene Panel 4 Button in Aluminium
1 / 3
  • 220-240V AC

    Voltage Range

    220-240V AC

  • IP20

    IP Rating

    IP20

  • 86 mm x 86 mm x 33 mm

    Dimensions

    86 mm x 86 mm x 33 mm

  • 86 mm

    Width

    86 mm

  • 86 mm

    Height

    86 mm

  • Aluminium, PC, PCB

    Fitting Material

    Aluminium, PC, PCB

  • 125 mA

    Current Intensity

    125 mA

DALI Scene Panel 4 Button in Aluminium

Download technical datasheet

Ref. Ledkia: 168345

Colour Anthracite

£83.99

VAT included

On demand, check availability date

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

  • 30 Day Returns

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 24h Free Delivery

    If you place your order today before 2:30 pm, delivery within 24/48h (working days).


    Shipping is free on purchases over £ 49.99 (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

Dimensions

  • Depth33 mm
  • Height86 mm
  • Weight185 kg
  • Width86 mm

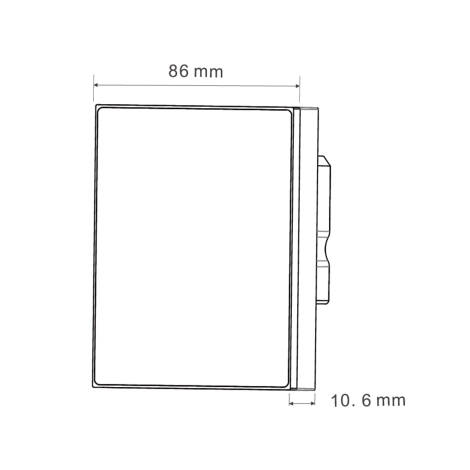

Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+45 °C
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, UKCA
    • ColourAnthracite
    • Current Intensity125 mA
    • Fitting MaterialAluminium, PC, PCB
    • Frequency50-60 Hz
    • InstallationRecessed
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC

  • Product Information

    • LocationIndoor
    • Number of Keys4 keys

  • Product Data

    • Guarantee3 years

Description

DALI Scene Panel with 4 Touch Buttons – Aluminum Finish

The DALI scene panel with 4 touch buttons is a sleek and durable control device designed for professional lighting installations. Created for quick activation of scenes or specific functions, this panel is ideal for projects where direct physical interaction is preferred without the need for screens or complex programming. Its compact format and aluminum finish make it a discreet yet elegant addition to high-end architectural environments.

Made from high-strength anodized aluminum, the panel features a smooth, minimalist front surface with backlit touch buttons for easy use in low-light conditions. Its capacitive interface, with no moving parts, ensures high durability and wear resistance—even in high-traffic areas such as meeting rooms, classrooms, auditoriums, or hotel and corporate common areas.

Each of the four buttons can be independently programmed via DALI commands to activate lighting scenes, luminaire groups, comfort modes, or even combined functions including blinds or sensors. Its DALI-2 system integration guarantees stable, interference-free communication over the bus. Additionally, LED status indicators provide clear visual feedback for the active mode or selected scene.

Installation is done via standard flush or surface-mounted electrical boxes, using front screws for secure and clean installation. No additional power supply is required, as the panel is powered directly from the DALI bus—reducing wiring needs and simplifying maintenance. Its internal electronics are protected against overloads and comply with international electromagnetic compatibility standards.

Thanks to its refined, professional design, this touch panel is especially suitable for environments that value both functionality and aesthetics—such as multipurpose rooms, showrooms, corporate receptions, or smart homes. It serves as a reliable and accessible control point for end users, enabling straightforward lighting control without mobile devices or access to main screens.

This panel offers a minimalist and effective solution for scene control in DALI systems, combining premium materials, precise tactile response, and easy integration into all types of professional spaces.
