  • 2 W
    Wattage 2 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • DALI
    Type Of Dimming DALI
  • IP20
    IP Rating IP20
Image of Touch Screen Secondary DALI for Scene Activation
    Image of Touch Screen Secondary DALI for Scene Activation
    Image of Touch Screen Secondary DALI for Scene Activation
    Image of Touch Screen Secondary DALI for Scene Activation
1 / 3
  • 2 W

    Wattage

    2 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • DALI

    Type Of Dimming

    DALI

  • IP20

    IP Rating

    IP20

  • No

    Battery Operated

    No

  • 86 mm x 86 mm x 33.6 mm

    Dimensions

    86 mm x 86 mm x 33.6 mm

  • 86 mm

    Width

    86 mm

  • 86 mm

    Height

    86 mm

  • Aluminium, PCB

    Fitting Material

    Aluminium, PCB

Touch Screen Secondary DALI for Scene Activation

Download technical datasheet

Ref. Ledkia: 168336

Colour Black

£200.99

VAT included

On demand, check availability date

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

  • 30 Day Returns

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 24h Free Delivery

    If you place your order today before 2:30 pm, delivery within 24/48h (working days).


    Shipping is free on purchases over £ 49.99 (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

Dimensions

  • Depth33.6 mm
  • Height86 mm
  • Width86 mm

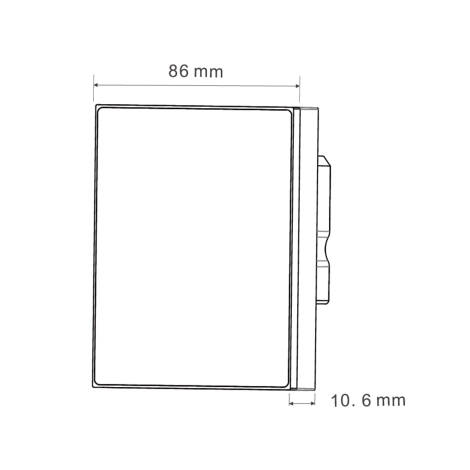

Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    168336_IM

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+45 °C
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, UKCA
    • ColourBlack
    • Fitting MaterialAluminium, PCB
    • Frequency50-60 Hz
    • InstallationRecessed
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage2 W

  • Product Data

    • Guarantee3 years

  • Product Information

    • LocationIndoor
    • Type Of DimmingDALI

Description

The secondary DALI touch panel is specifically designed for scene activation in professional lighting installations. This device acts as a local user interface within DALI systems, allowing direct and personalised control of luminaries, blinds, colour temperature, and other integrated elements. It is intended for projects where intuitive interaction with the lighting is required, without needing access to the main controller.

Equipped with a high-sensitivity, high-resolution capacitive touchscreen, the panel enables users to view and trigger predefined scenes, adjust light levels, and access control functions such as on/off switching, dimming, and colour tuning (CCT). Its graphical interface is fully customised, making it easy to adapt the layout to each specific project. Response is immediate and reliable, making it ideal for environments where operational efficiency is critical.

In terms of connectivity, this panel communicates directly using the DALI-2 protocol, ensuring full compatibility with drivers, sensors, and controllers certified under this standard. It does not require an external power supply, as it is powered directly from the DALI bus, simplifying installation and eliminating the need for additional wiring. Built from high-quality materials, it offers mechanical durability and operational stability for intensive use.

The panel is wall-mounted using a standard electrical box and features a robust, discreet mounting system that maintains the aesthetic of the space. Its slim profile and black or white tempered glass finish make it ideal for modern architectural environments, adding a professional and tech-forward look without interfering with interior design. It is particularly recommended for meeting rooms, executive offices, hotel common areas, or high-end smart homes.

This panel does not function as a master controller but rather as a secondary access point within a DALI network, ideal for complementing existing automation systems. It can operate alongside sensors, gateways, or central controllers, offering a stylish and functional local interface. Thanks to its customisation options and ease of integration, it provides an effective solution for scene control in projects that demand high standards in both design and functionality.
