  • 220-240V AC
    Voltage Range 220-240V AC
  • 360 W
    Max Wattage 360 W
  • DALI, TRIAC
    Type Of Dimming DALI, TRIAC
  • IP20
    IP Rating IP20

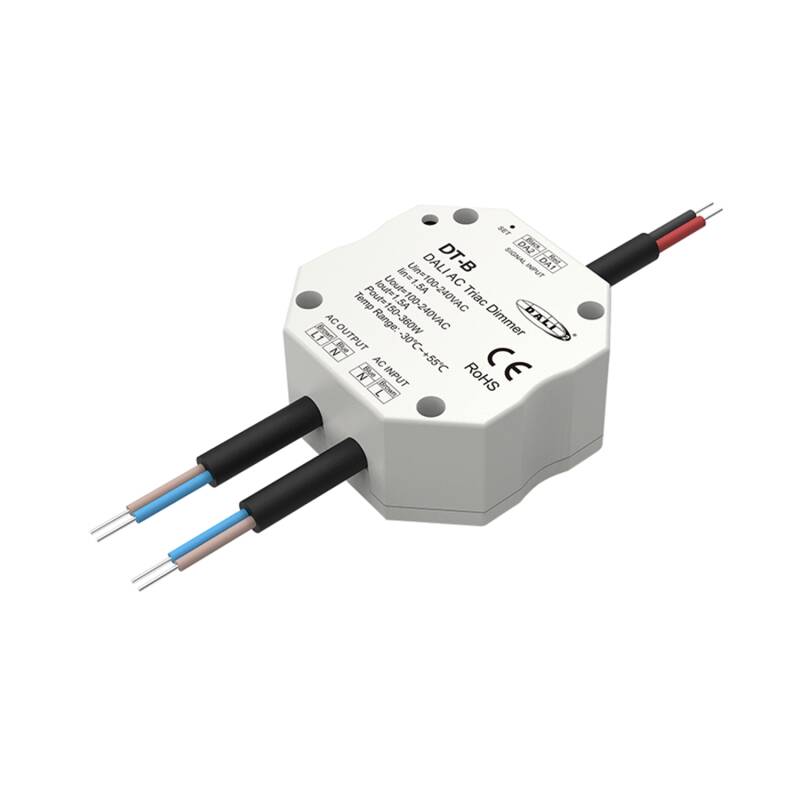

Image of 1 Channel DALI to TRIAC Dimming Switch
    Image of 1 Channel DALI to TRIAC Dimming Switch
    Image of 1 Channel DALI to TRIAC Dimming Switch
1 / 2
  • 220-240V AC

    Voltage Range

    220-240V AC

  • 360 W

    Max Wattage

    360 W

  • DALI, TRIAC

    Type Of Dimming

    DALI, TRIAC

  • IP20

    IP Rating

    IP20

  • 75 mm x 75 mm x 40 mm

    Dimensions

    75 mm x 75 mm x 40 mm

  • 75 mm

    Width

    75 mm

  • 75 mm

    Height

    75 mm

  • PC

    Fitting Material

    PC

  • Yes

    Dimmable

    Yes

  • 1.5 A

    Current Intensity

    1.5 A

1 Channel DALI to TRIAC Dimming Switch

Download technical datasheet

Ref. Ledkia: 109414

Colour White

£22.39

VAT included

In Stock, delivery in 15-20 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

  • 30 Day Returns

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 24h Free Delivery

    If you place your order today before 2:30 pm, delivery within 24/48h (working days).


    Shipping is free on purchases over £ 49.99 (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

See alternatives

Dimensions

  • Height75 mm
  • Depth40 mm
  • Width75 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-10 °C~+45 °C
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, UKCA
    • ColourWhite
    • Current Intensity1.5 A
    • DimmableYes
    • Fitting MaterialPC
    • Frequency50-60 Hz
    • InstallationRecessed
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • Max Wattage360 W
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage100-240V AC
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC

  • Product Data

    • LocationIndoor
    • Warranty5 years

  • Product Information

    • Type Of DimmingDALI, TRIAC
Outdoor LED bollard

Description

The 1 Channel DALI to TRIAC Dimming Switch is a trailing edge TRIAC dimmer that operates with the DALI digital signal. It allows for smooth and precise control of light intensity, which is especially useful in applications where careful dimming is required. It enables adjusting the minimum brightness level, providing additional customisation according to specific lighting needs. This dimmer also allows for completely turning off the luminaire.

It provides a unique DALI address and an output channel. The DALI address can be automatically assigned through the DALI master. It complies with DALI protocol standards 101, 102, 205 (IEC 62386) and is compatible with DALI products from other international incorporations, ensuring its interoperability in existing systems. In addition to its dimming functionality, the dimmer offers protection against overheating and overloading, with the ability to recover automatically. This ensures the safety and durability of the device and its lighting system as a whole.
