Wattage 10 W
Voltage Range 220-240V AC
Lumen 1350 lm
Number of LEDs 12
Wattage
10 W
Voltage Range
220-240V AC
Lumen
1350 lm
Number of LEDs
12
Type Of Dimming
TRIAC
Power Factor
0.93
IP Rating
IP65
Battery Operated
No
Dimensions
130 mm x 110 mm x 38 mm
Width
110 mm
Height
130 mm
IK Protection
IK08
Dimmable HE PRO 10W LED Floodlight 145lm/W IP65
Ref. Ledkia: 51761
(3)5 out of 5 stars
Before £10.89
£7.59
VAT included
Colour Temperature Cool White 4000K
In Stock, delivery in 24/48h
Buy before 2:30 pm we’ll ship it today.
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
24h Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £49.99 (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Dimensions130 mm x 110 mm x 38 mm
- Cable Length400 cm
Downloads
PDF Datasheet 51761_103208 EN
DoC_51761_103208
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS SMD2835
- Nominal Voltage190 V - 260 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Type Of DimmingTRIAC
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage10 W
LED Features
- Beam Angle120ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours50.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- LED Performance145 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourCool White
- Lumen1350 lm
- Luminous Efficiency133 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Number of LEDs12
- Power Factor0.93
- Standard colour deviation (MacAdam)SDCM ≤ 5
- ULOR5 %
Mechanical Features
- Ambient Working Temperature-20 °C~+40 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK08Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationSurface
- Installation of the bracketWall with U-bracket, On-wall base with U-bracket
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- Optic120ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee5 years
- Product SeriesHE PRO
Materials and Finishes
- ColourBlack
- Fitting MaterialGlass, Aluminium
Driver Information
- WifiNo
Description
The Dimmable HE PRO 10W LED Floodlight offers a luminous efficiency of 133 lm/W with a TRIAC dimmable driver, delivering 1,350 lumens through a wide 120º optic. Designed for professional outdoor lighting, it combines performance and control in a compact form.
General information about Dimmable HE PRO 10W LED Floodlight 145lm/W IP65
This floodlight from the HePro series features an aluminium housing with IP65 protection and IK08 impact resistance, ensuring durability in demanding environments. It incorporates LUMILEDS SMD2835 LEDs and a driver compatible with 220-240 V AC mains voltage. The product maintains a low ULOR of 5%, minimising upward light emission. Its compact dimensions of 130 mm x 110 mm x 38 mm facilitate versatile installation options. Certified with CE, RoHS, and UKCA, this floodlight is engineered for reliable operation and longevity.
Use and applications
The Dimmable HE PRO 10W LED Floodlight is designed for outdoor scenarios such as façades and access points, where precise lighting control is essential. It suits sectors including public administration and construction due to its robust build and efficient performance, supported by its aluminium enclosure and protective ratings.
Operating within a temperature range of -20 °C to +40 °C and featuring a power factor of 0,93, this floodlight ensures consistent functionality under typical outdoor conditions. Its surface mounting with U-bracket installation facilitates secure fitting. The dimmable driver offers control flexibility, making it suitable for projects where lighting adaptability and maintenance efficiency are priorities.
Key benefits
- Enhanced energy efficiency through high luminous efficacy, delivering more light per watt.
- Reliable protection against dust and water thanks to IP65 rating, suitable for outdoor installations.
- Robust mechanical resistance with IK08 impact protection, ensuring durability in harsh environments.
- Flexible dimming control enabled by the TRIAC driver, allowing customised lighting levels.
- Long service life of approximately 50,000 hours, reducing maintenance requirements.
- Compact design enabling easy installation in various outdoor locations.
Highlighted specifications
Wattage: 10 W; Colour Rendering Index (CRI): 80; Electrical Insulation Class: I; Beam Angle: 120º.
Installation and maintenance

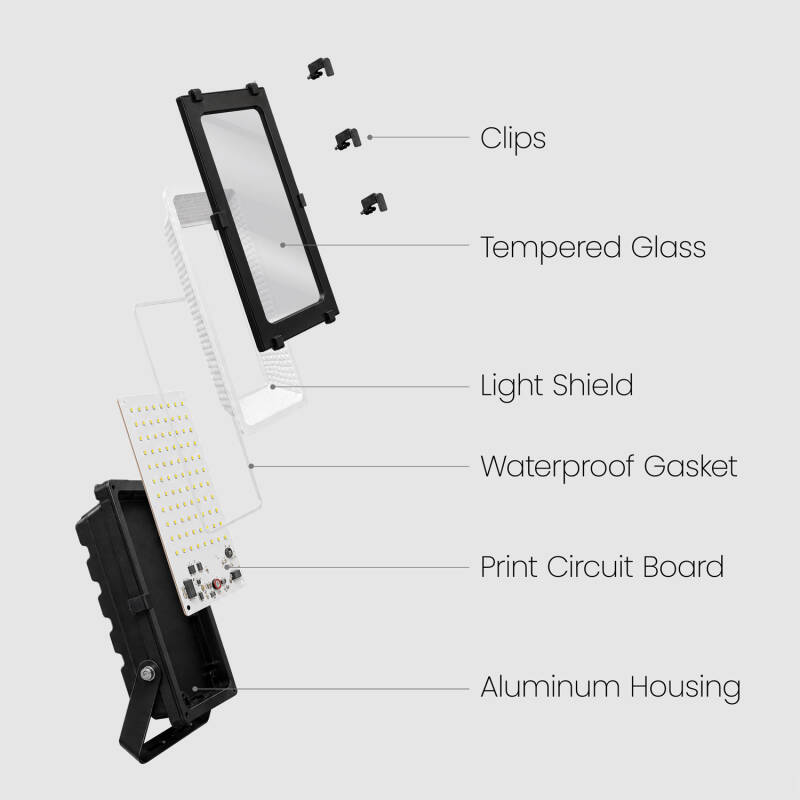

Installation is carried out via surface mounting using a wall or on-wall base with U-bracket, ensuring secure and stable fixing. The floodlight incorporates tempered glass and a sealing gasket to maintain its IP65 protection. Proper installation according to the indicated system is essential for optimal performance.
Disconnect the power supply before any intervention.
Specialized lighting distribution in United Kingdom. If you are looking to buy Dimmable HE PRO 10W LED Floodlight 145lm/W IP65 with a professional warranty, it is a leading choice for durability and efficiency. Estimated shipping in 15 to 20 days (subject to stock availability). Check price and availability here.
Frequently asked questions
- What type of mounting does the floodlight require? — Surface mounting with a U-bracket is used for secure installation.
- What protection ratings does this floodlight have? — It features IP65 for water and dust resistance and IK08 for impact protection.
- Is the floodlight dimmable? — Yes, it includes a TRIAC dimmable driver for flexible light control.
- What is the operating temperature range? — The product functions between -20 °C and +40 °C.
- What materials are used in the floodlight construction? — The housing is aluminium with tempered glass and sealing components.
