Voltage Range 12V DC, 24V DC
Max Wattage 384 W
IP Rating IP20
Dimensions 42 mm x 33 mm x 177 mm
Voltage Range
12V DC, 24V DC
Max Wattage
384 W
IP Rating
IP20
Dimensions
42 mm x 33 mm x 177 mm
Width
33 mm
Height
42 mm
Fitting Material
Metal

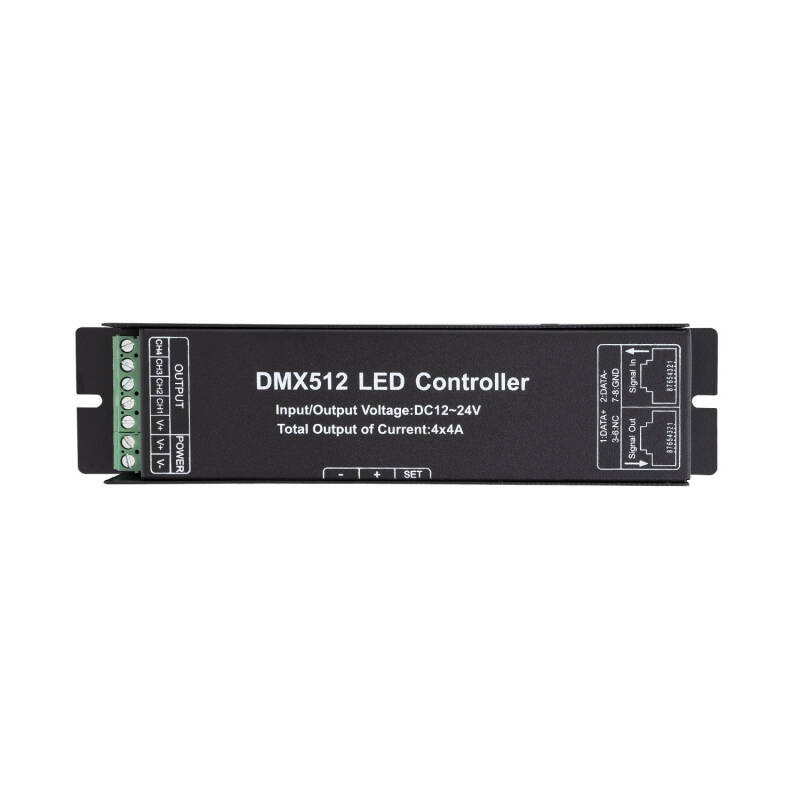

4 Channel DMX512 LED Controller
Ref. Ledkia: 654
(1)5 out of 5 stars
£19.99
VAT includedIn Stock, delivery in 24/48h
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
24h Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £49.99 (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Depth177 mm
- Width33 mm
- Height42 mm
Downloads
Technical Data Sheet PDF
DoC_654_0
Certificates and Stamps
Technical Specifications
Electrical Features
- Max Wattage384 W
- Voltage Range12V DC, 24V DCVoltage level required for the product to function correctly.
Materials and Finishes
- ColourBlack
- Fitting MaterialMetal
Mechanical Features
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Description
This DMX512 LED Controller retransmits signals under standard DMX through 4 fixed RGBW channels (RGB+ White), allowing you to control the behaviour of your LED lights at all times. It’s easy to use, just connect a console that’s compatible with standard DMX to the corresonding RJ-45 input, then assign a channel using the available buttons that are on the side of the controller, then connect the Red, Green, Blue, White and V+ attachments to the output tabs and then connect the power supply to the corresponding power tabs. This controller can either be used on its own or in combination with other DMX controllers. Output intensity per channel = 4A.
_x000D_*Only compatible with 12V and 24V LED Strips.
