MiBoxer MLR2 12/24V DC Mini Monochrome LED Controller

MiBoxer
Download technical datasheet

Ref. Ledkia128452

Manuf. ref.MINI-MLR2-6A

Light Colour Monochrome

£8.89

VAT included

In Stock, delivery in 15-20 days

Not Included Remote

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment
    • 30 Day Return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-sales service.

    • 24h Free Delivery

      If you place your order today before 2:30 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £ 49.99 (incl. VAT).


      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-sales service.

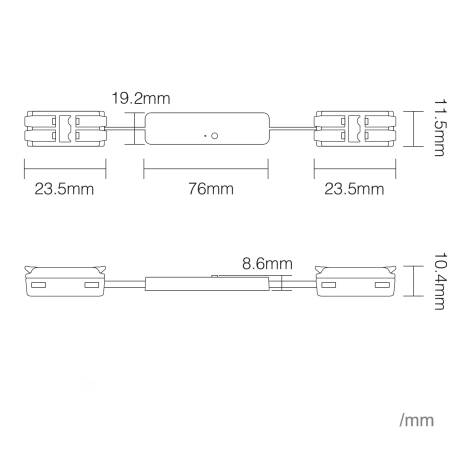

Dimensions

  • Depth76 mm
  • Height11 mm
  • Width19 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    Instruction Manual

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Technical Information

    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, UKCA
    • DimmableYes
    • Fitting MaterialABS, PC
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • Light ColourMonochrome
    • Max Wattage144 W
    • Maximum Output Current6 A
    • Voltage level required for the product to function correctly.
      Voltage Range24V DC, 12V DC
  • Product Data

    • Manufacturer or company responsible for designing and producing the product. A recognized name ensures quality and support.
      BrandMiBoxer
    • Guarantee3 years
  • Product Information

    • AppTuya Smart
    • CompatibilityAmazon Alexa, Google Assistant
    • ConnectivityRF
    • LocationIndoor
    • Type Of DimmingAPP, Remote Control, Push button
OutLED: TOP products at incredible prices

Description

The Mini Monochrome LED Strip Controller Dimmer 12/24V DC MiBoxer MLR2 is a professional device designed for advanced control of monochrome LED strips in low-voltage installations. Compact, efficient, and easy to install, it allows precise regulation of light intensity, offering installers and users full control over lighting in residential, commercial, or architectural design environments.

Main Features

The MLR2 offers 4096 levels of smooth dimming, with an adjustable minimum brightness down to 0.1% and a regulation range from 0.1% to 100%. This precision enables the creation of customised atmospheres, from soft ambient lighting to maximum intensity, all with a smooth transition and no perceptible flicker. Its control system operates via 2.4 GHz RF signal, reaching distances of up to 30 metres. Additionally, it supports pairing with up to 12 remote controls, facilitating management in larger-scale projects.

Advanced Functions

The controller includes automatic signal forwarding, allowing the remote control coverage to be extended indefinitely through linked controllers. It also features a Do Not Disturb Mode, especially useful in areas with frequent power outages, optimising consumption and preventing unwanted switch-ons. It is compatible with the Tuya Smart app (requires 2.4 GHz gateway) and voice assistants Alexa, Google Assistant, and Yandex Alice, enabling integration into advanced home automation systems.

Technical Specifications

The MiBoxer MLR2 operates on an input voltage of 12-24V DC, with a maximum output current of 6A and power ranging between 72 and 144W depending on the operating voltage. Its output is constant voltage, with IP20 protection, suitable for indoor applications. It offers an operating temperature range between -10 and +40 ºC, ensuring stability and durability. Moreover, it complies with strict international safety and electromagnetic compatibility standards. It comes with a 5-year warranty.

Installation and Pairing

The pairing process with the remote control is simple: just switch the power off and on after 10 seconds or press the “SET” button on the controller; then, press the remote’s “I” button three times within 3 seconds. The light will blink slowly three times indicating successful pairing. This procedure allows both initial pairing and unpairing of remotes.

Professional Applications

The MLR2 controller is ideal for architectural lighting, interior decoration, retail, hospitality, and residential projects. Its fine dimming capability and compatibility with smart systems make it a versatile tool for creating dynamic atmospheres with energy-efficient consumption.

The Mini Monochrome LED Strip Controller Dimmer 12/24V DC MiBoxer MLR2 offers an advanced solution for professionals seeking precision, reliability, and ease of integration in modern LED lighting projects.
