Wattage 8 W

Wattage
8 W
Voltage Range
220-240V AC
Power Factor
0.9
IP Rating
IP20
Battery Operated
No
Dimensions
20.5 mm x 29.8 mm x 142 mm
Width
29.8 mm
Height
20.5 mm
Fitting Material
PC
Brand
LIFUD

Wattage 8 W

8 W
In Stock, delivery in 24/48h

£10.99

VAT included

In Stock, delivery in 24/48h

Buy before 2:30 pm we’ll ship it today.

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

See alternatives

Dimensions

Height20.5 mm
Depth142 mm
Width29.8 mm

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

Technical Information
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+50 °C
- Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
  CertificatesCE, TÜV, ENEC, UKCA
- Driver Intensity100 mA-250 mA
- Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
  Driver Tension25 V-42 V
- Electrical Insulation ClassII
- Fitting MaterialPC
- Frequency50-60 Hz
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP20
- Power Factor0.9
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
- Wattage8 W
Product Data
- Manufacturer or company responsible for designing and producing the product. A recognized name ensures quality and support.
  BrandLIFUD
- LocationIndoor
- Warranty3 years

Description

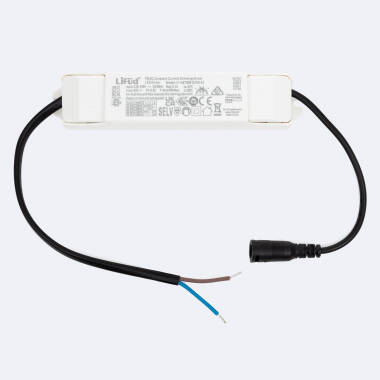

The LF-ABT008-0250-42 LED Triac Dimmable Lifud LED Driver is a professional solution from the renowned LIFUD brand, ideal for a wide range of lighting applications such as LED panels, LED downlights, LED boards and LED ceiling lights. This Driver is designed to connect directly to the Jack connector, facilitating installation and ensuring optimum compatibility. Its main function is to convert AC mains current into a DC current suitable for powering LED chips, ensuring that they operate efficiently and safely. To ensure compatibility with your lighting system, it is important to check the voltage and current output specifications of the driver.

Features of the 220-240V LIFUD TRIAC Dimmable No Flicker Driver 25-42V Output 100-250mA 2.5-8W LF-ABT008-0250-42

This specific Lifud model, the LF-ABT008-0250-42, excels in its ability to offer an adjustable multi-voltage output, ranging from 25V to 42V, which allows it to be used in different LED lighting configurations without compromising performance. This driver is designed to be Triac dimmable, allowing for effortless fine tuning of the light intensity. This dimming capability not only enhances the atmosphere of any space, but also contributes to the energy efficiency and longevity of your LED luminaires.

In addition, the output current can be adjusted from 100mA to 250mA via a DIP switch, providing exceptional flexibility. When the driver is switched on, it automatically adjusts the voltage required to maintain a constant and stable output, which is essential for the longevity and efficacy of the LEDs. With an outstanding power factor, this LED driver not only ensures quality illumination but also operates with superior energy efficiency, reflected in optimised power consumption and long-term cost savings.
