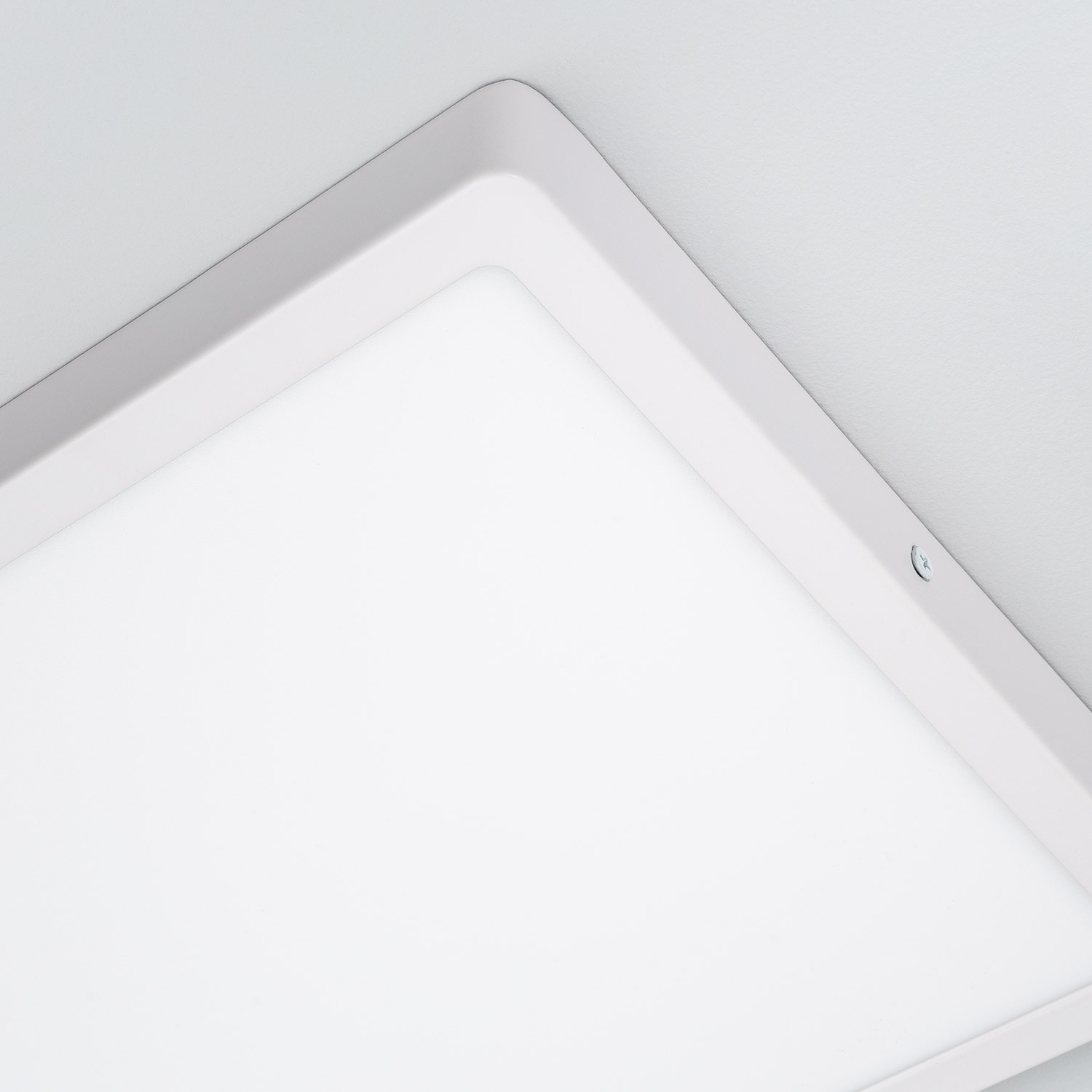

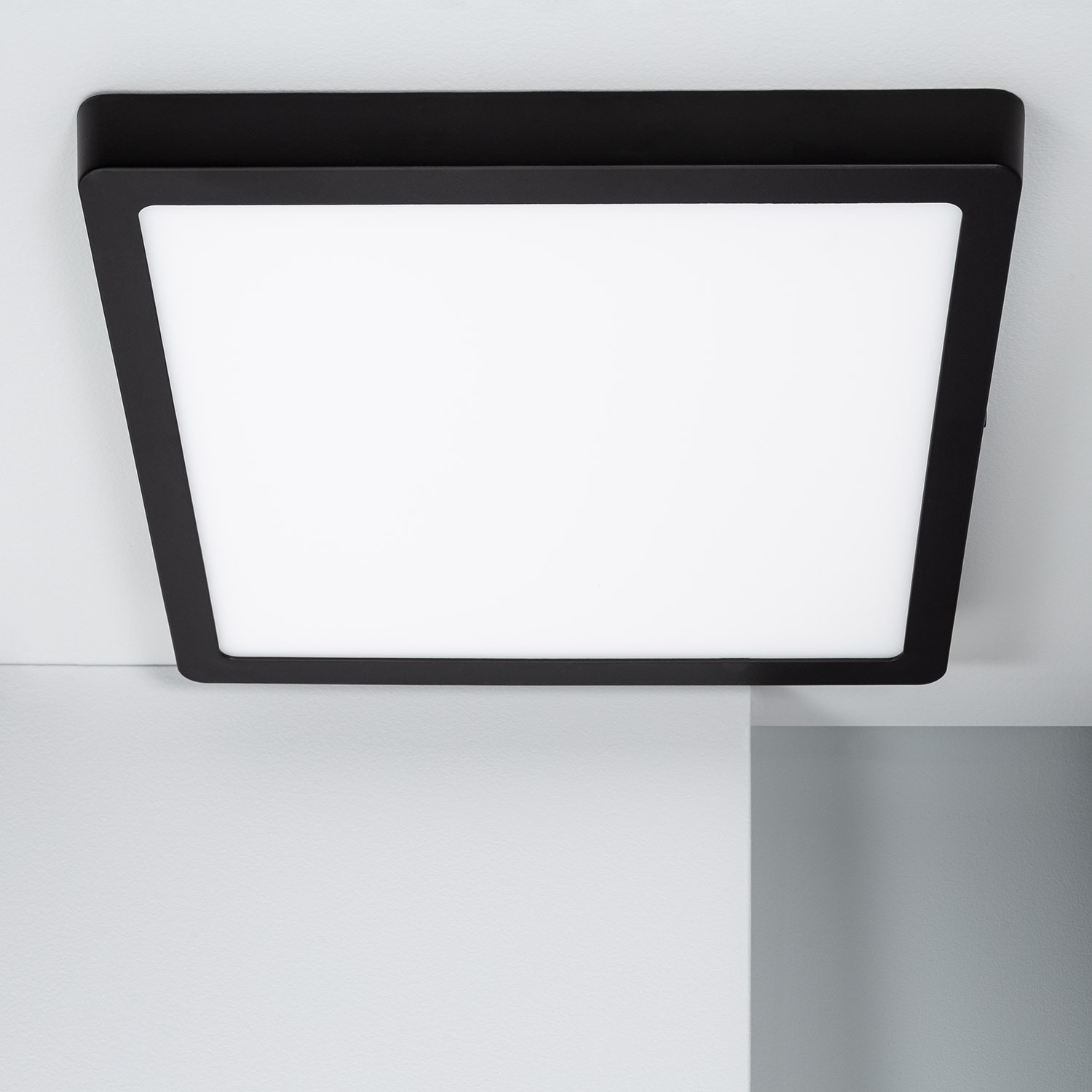

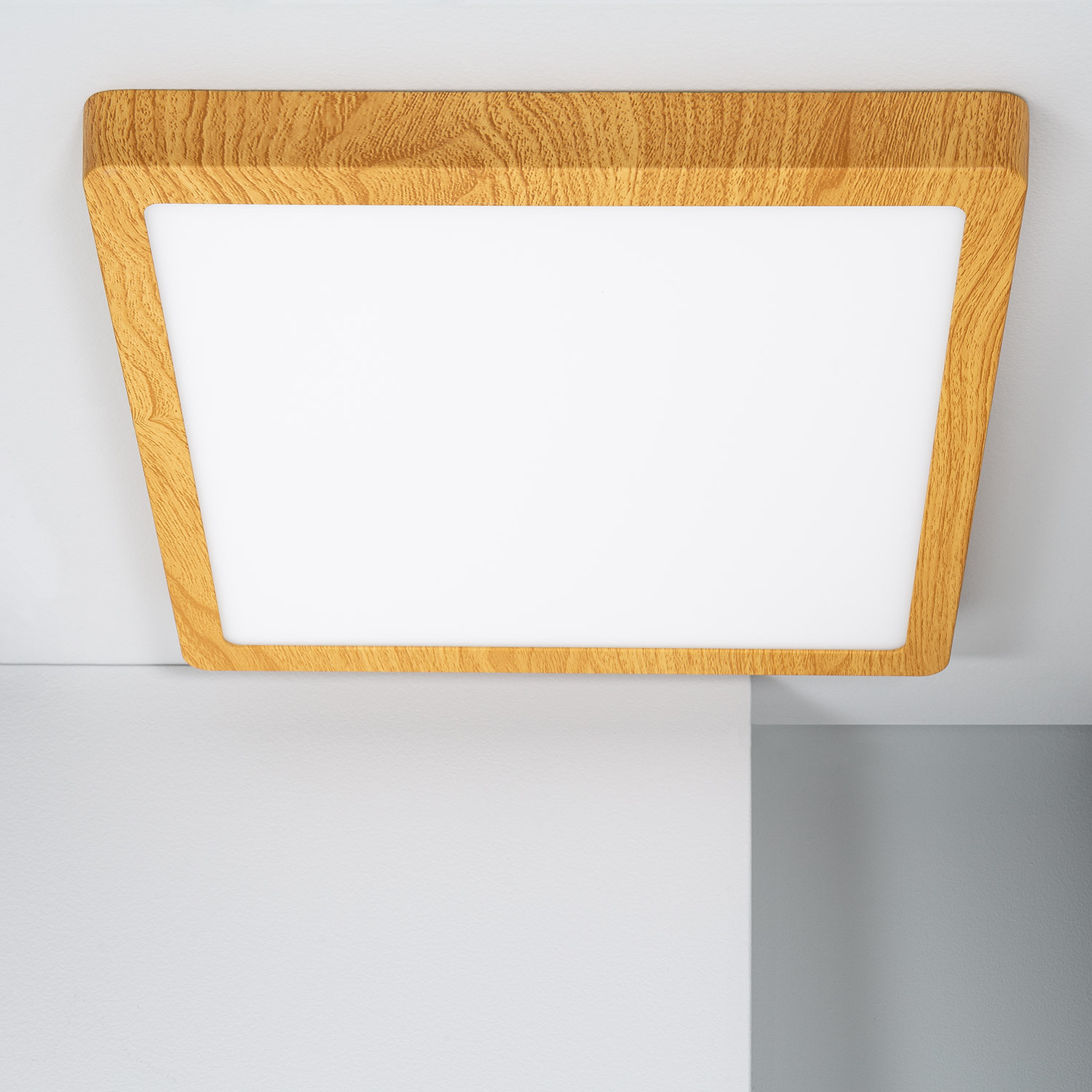

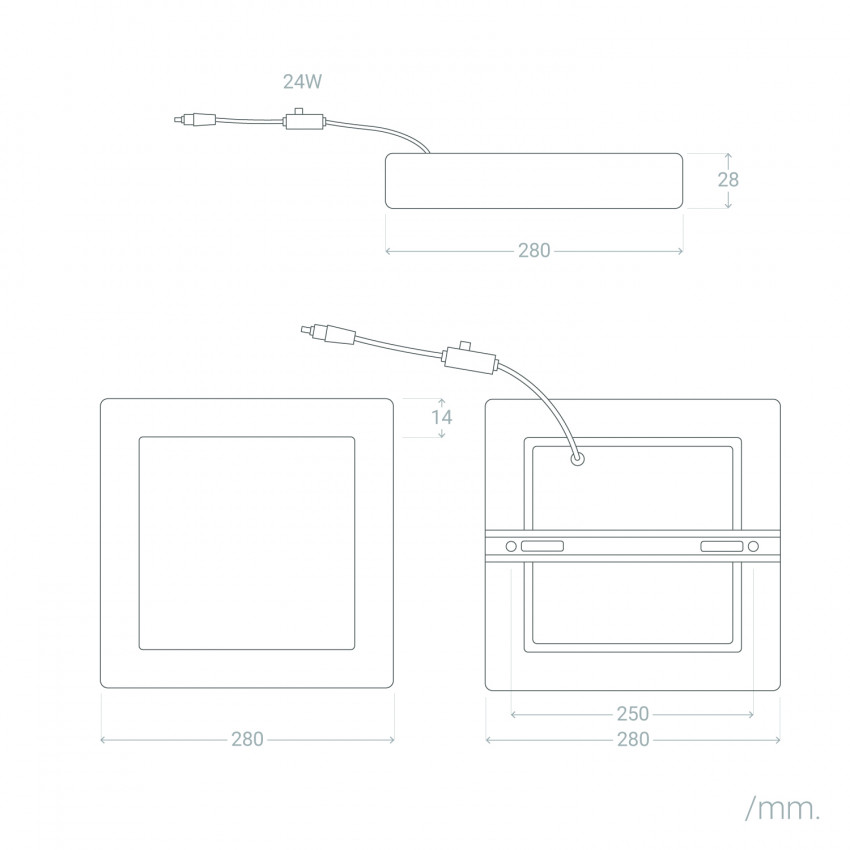

24W Galan Aluminium CCT Selectable SwitchDimm Slim Square LED Surface Lamp 280x280 mm

Technical Specifications

• Technical Information

  • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
    Ambient Working Temperature-20 °C~+50 °C
  • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
    CertificatesRoHS, CE, UKCA

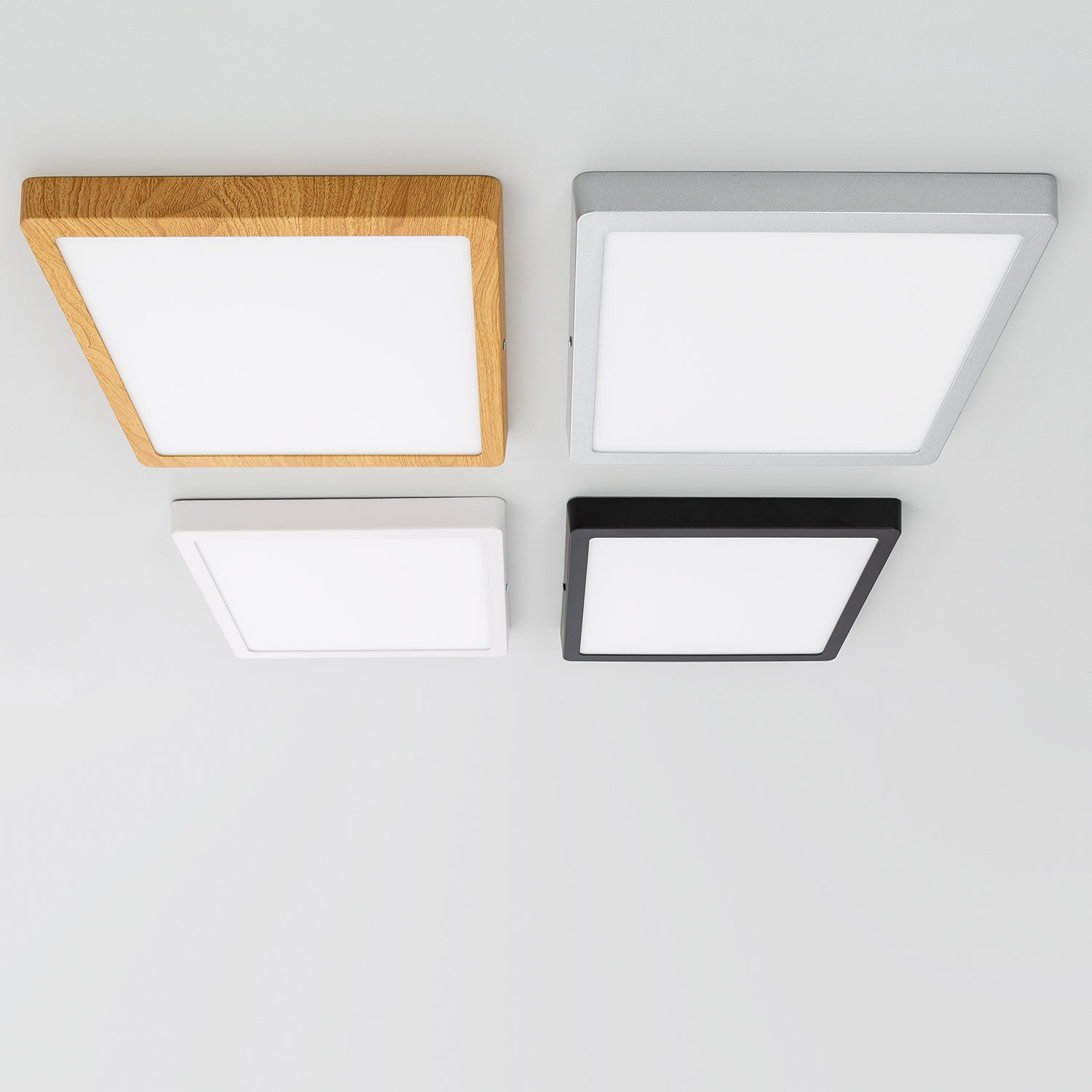

  • Specification of the color of the product or its light (in the case of products such as lamps or light bulbs), which may affect the aesthetics and functionality of its use.
    ColourNatural

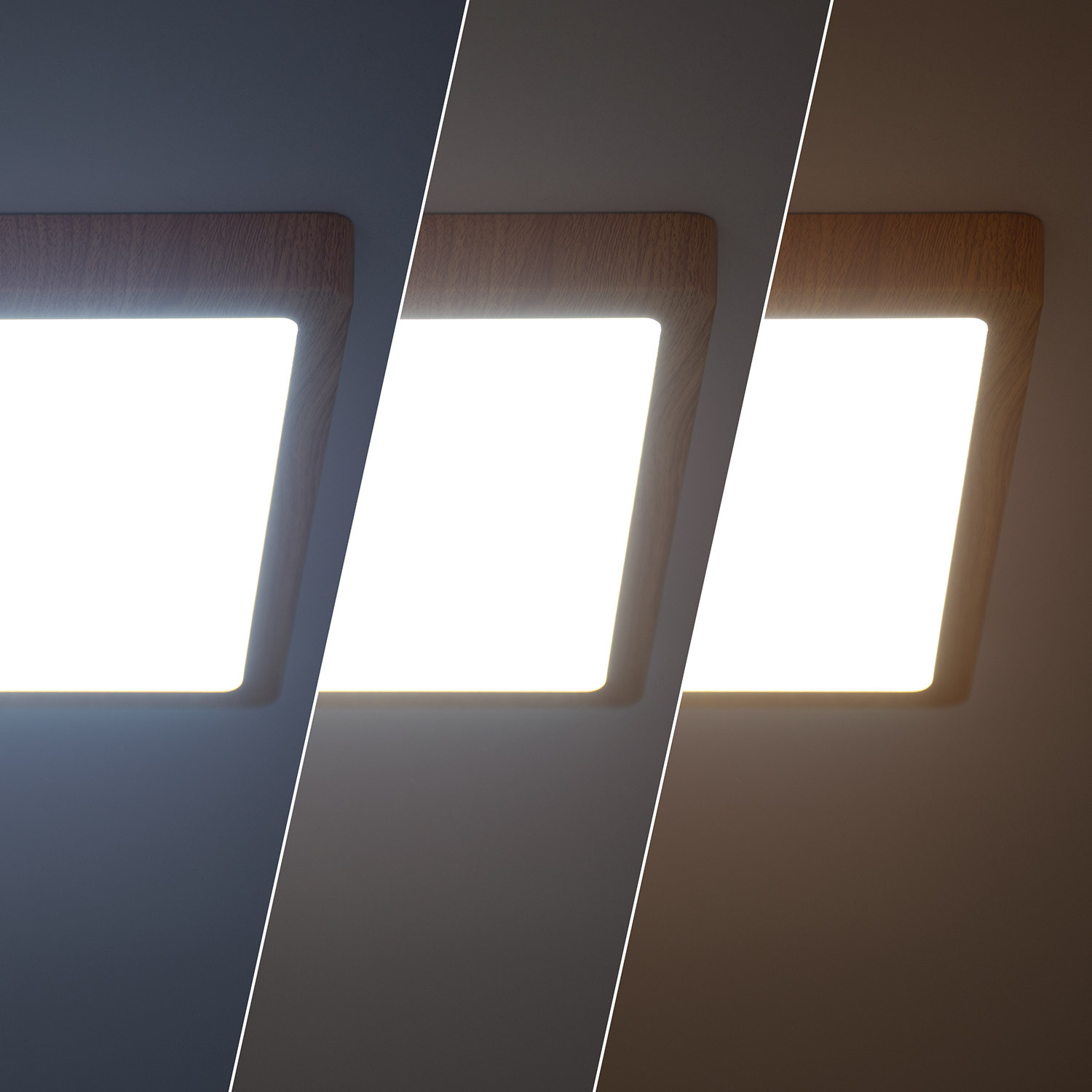

  • Defines the light tone, from warm white to cool white, measured in Kelvin (K).

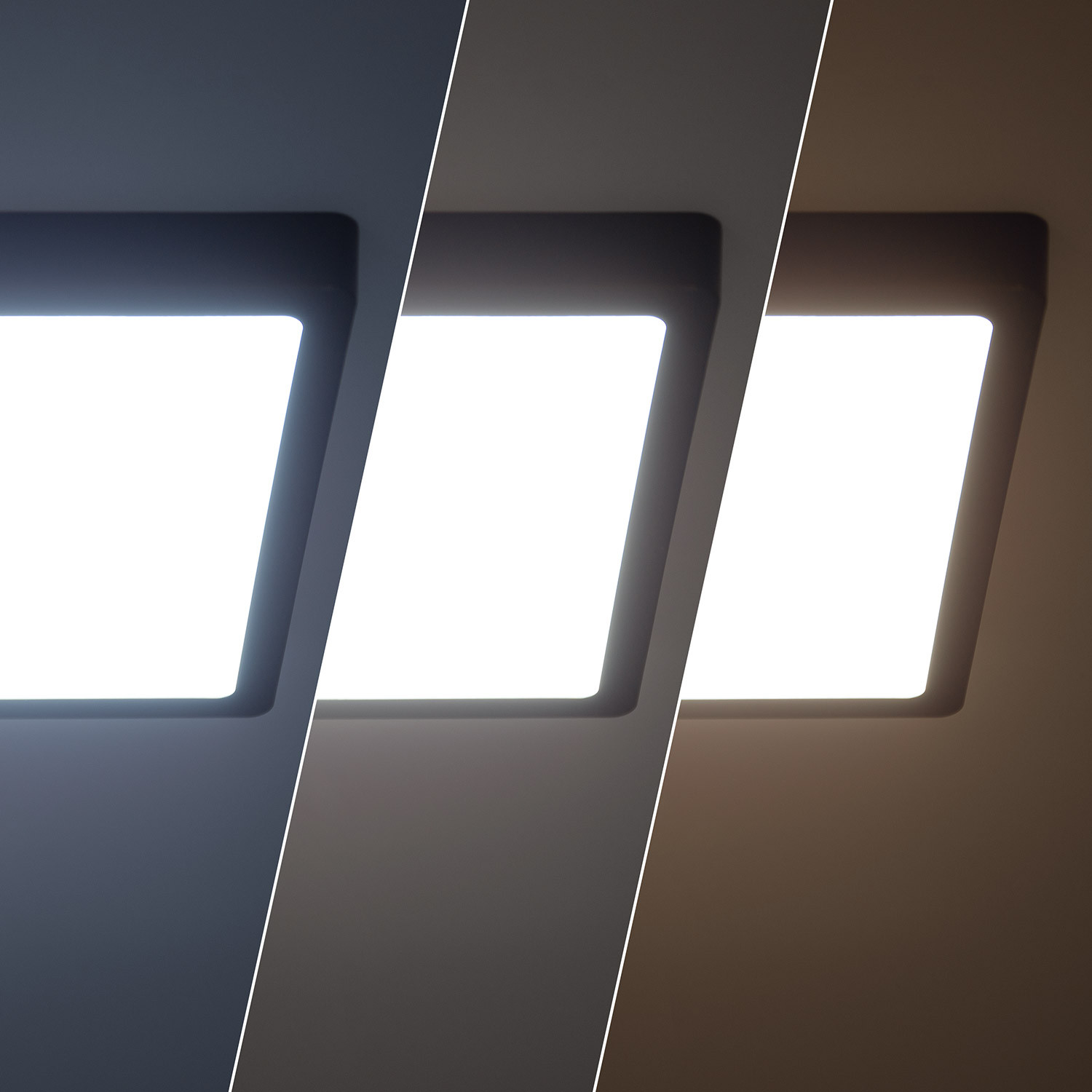

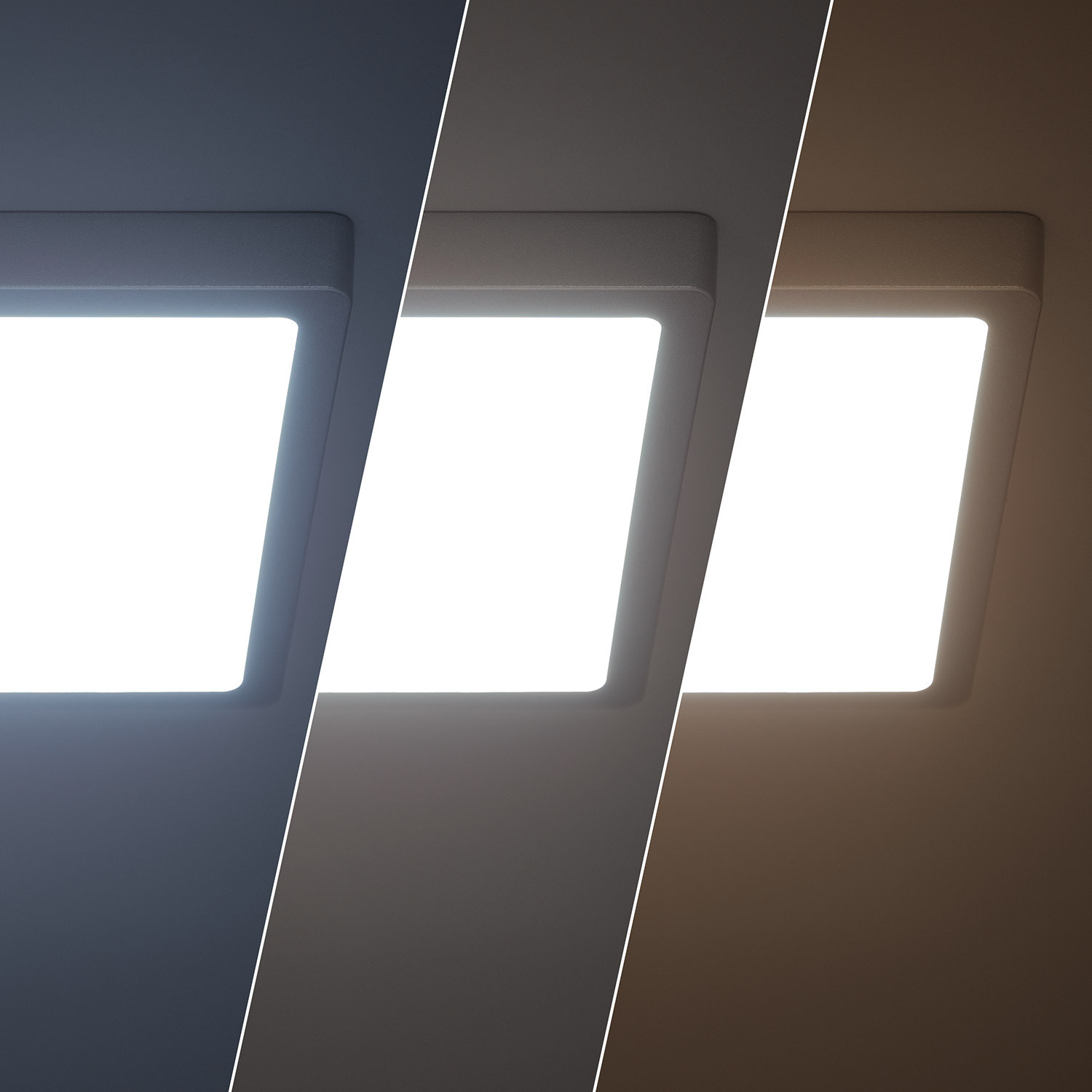

    Colour Temperature3000K - 6000K
  • It indicates that the product allows parameters such as light intensity, speed or color temperature to be adjusted, providing greater flexibility and customization.
    DimmableYes

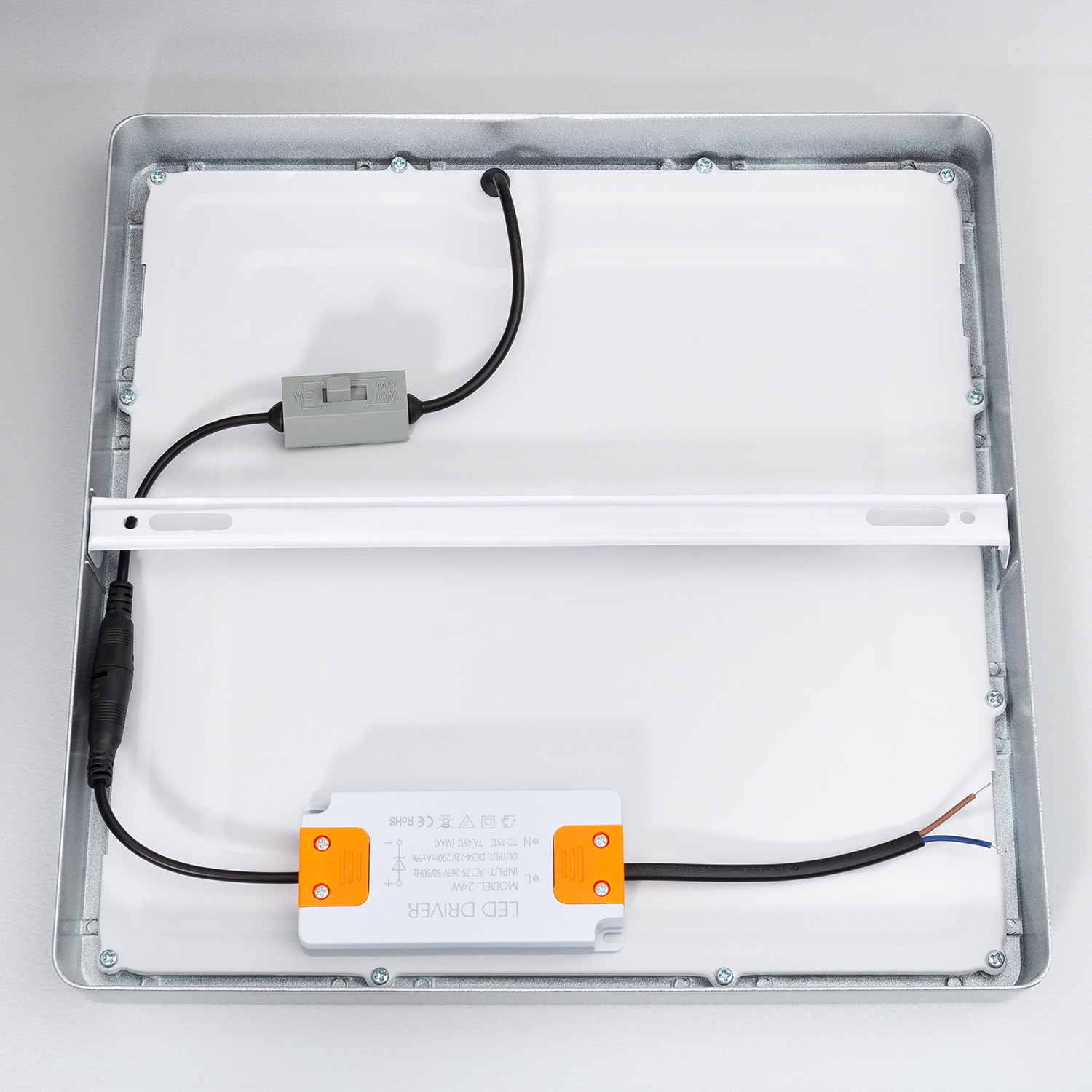

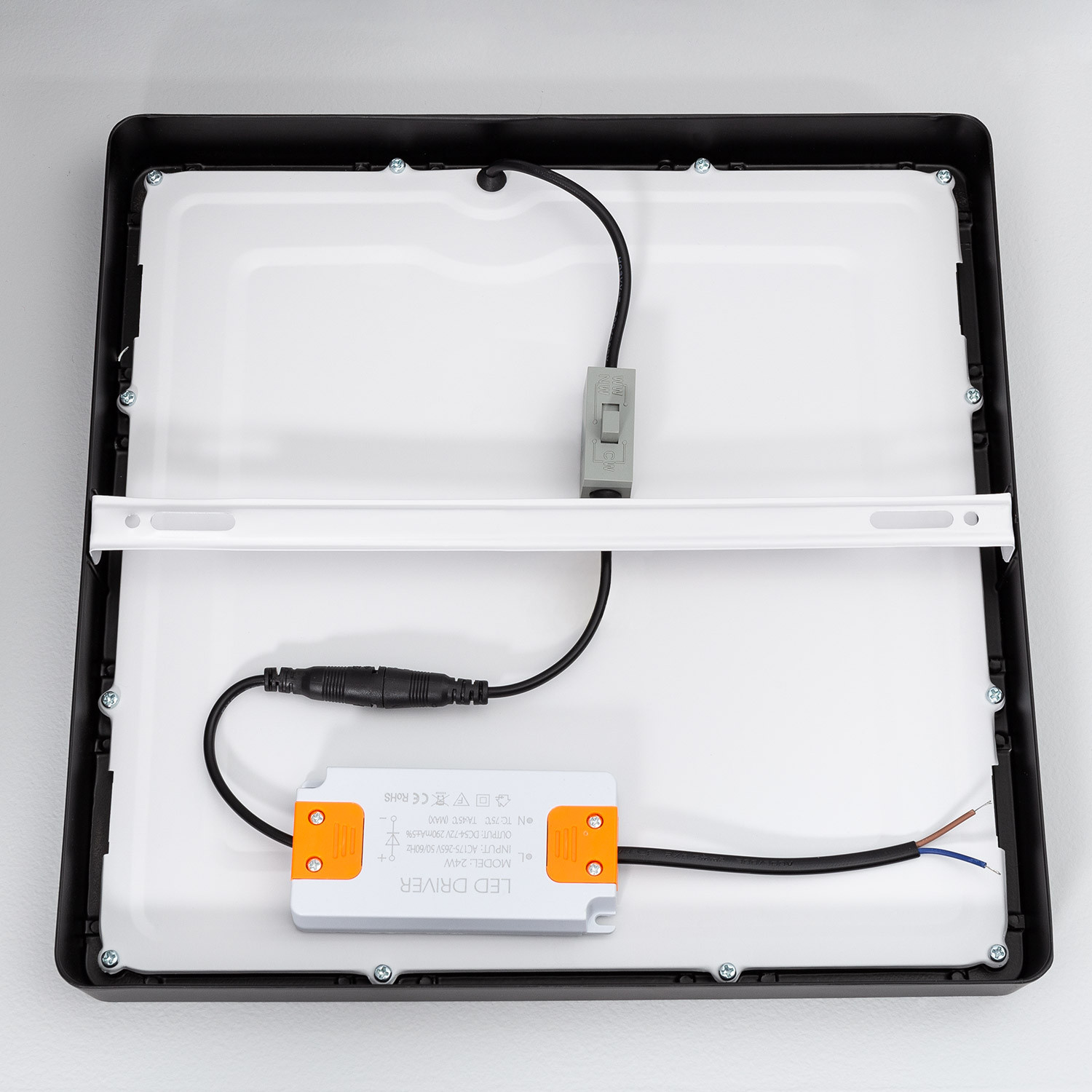

  • Level of electrical current that the driver is capable of handling to power components, such as LEDs, ensuring safe and efficient operation.

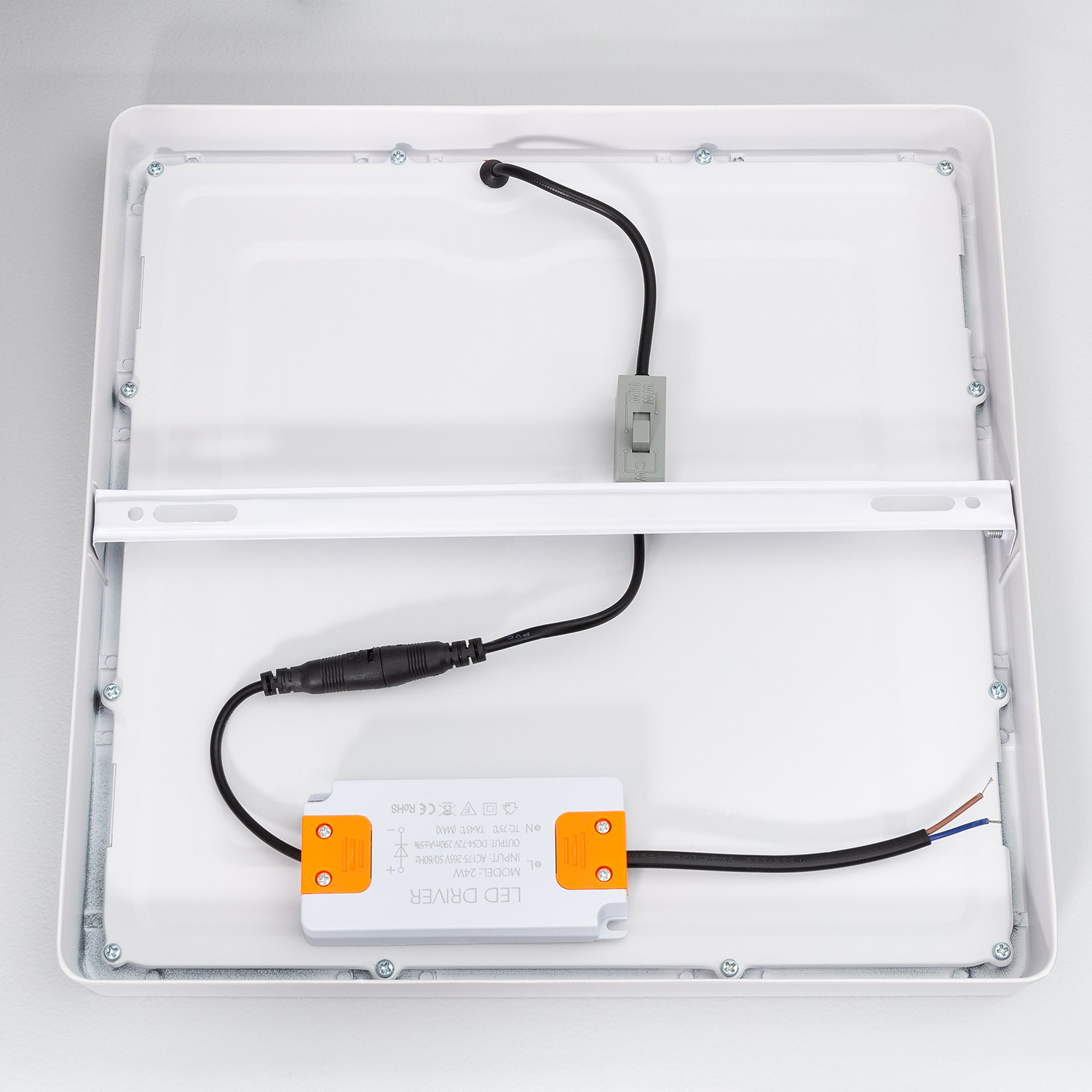

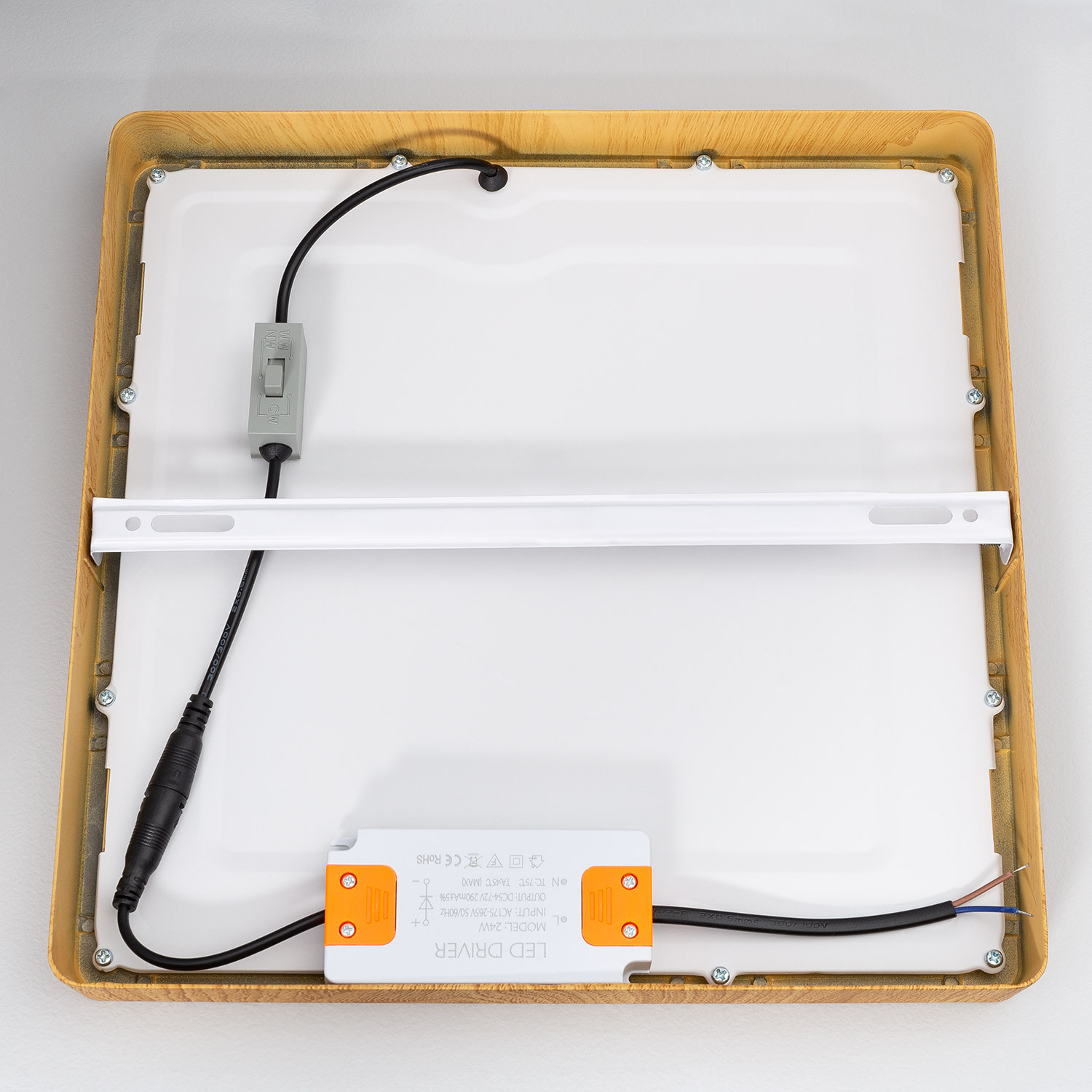

    Driver Intensity290 mA
  • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
    Driver Tension54 V-72 V
  • Level of electrical protection of the product against shocks. Indicates whether it is suitable for different conditions of use, guaranteeing safety in the installation.
    Electrical Insulation ClassII
  • Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.

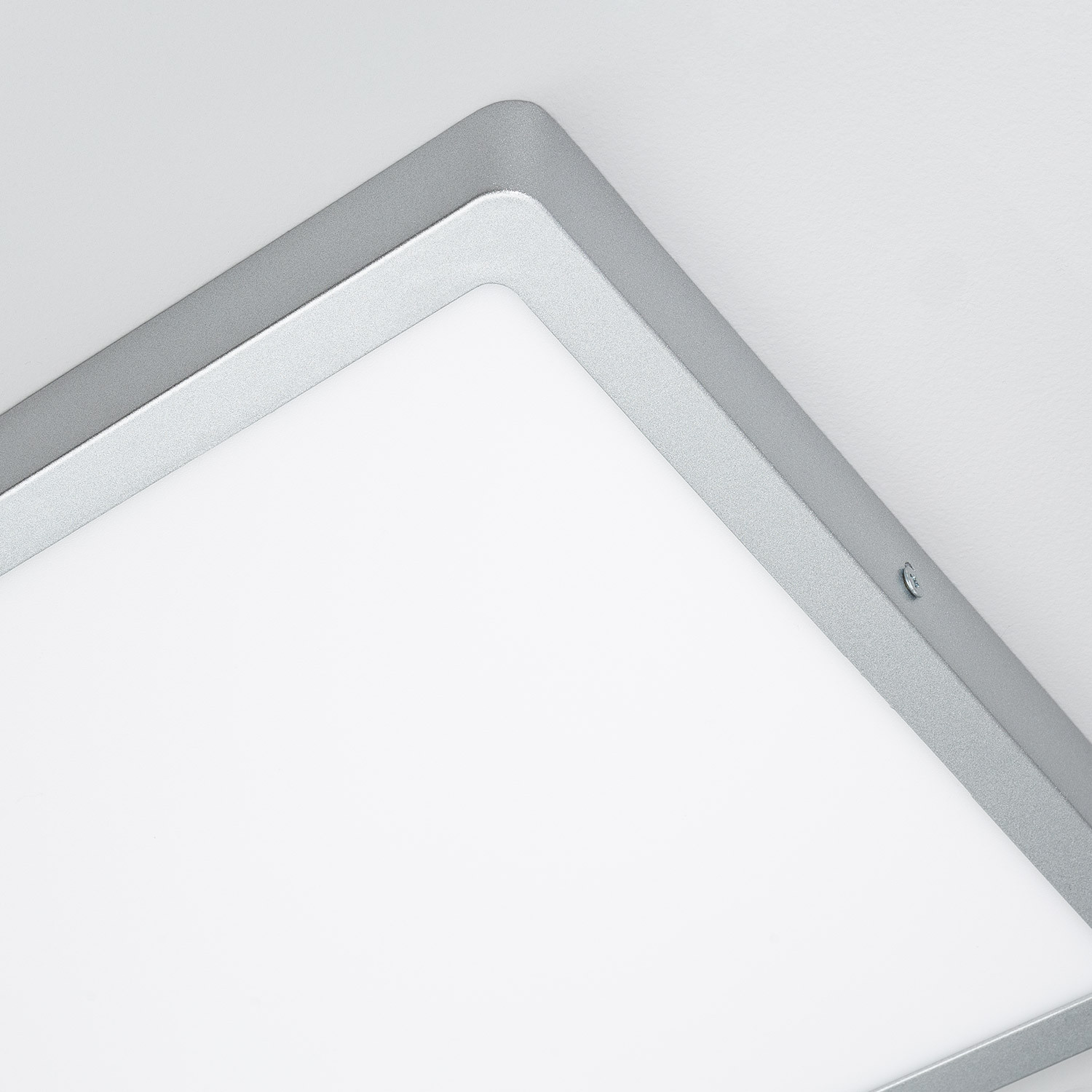

    Fitting MaterialAluminium
  • Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
    Frequency50-60 Hz
  • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
    Hours40.000 hours
  • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
    IK ProtectionIK05
  • Information on how the product should be placed or mounted, such as instructions on whether it requires professional installation or is easy to do by the end user.

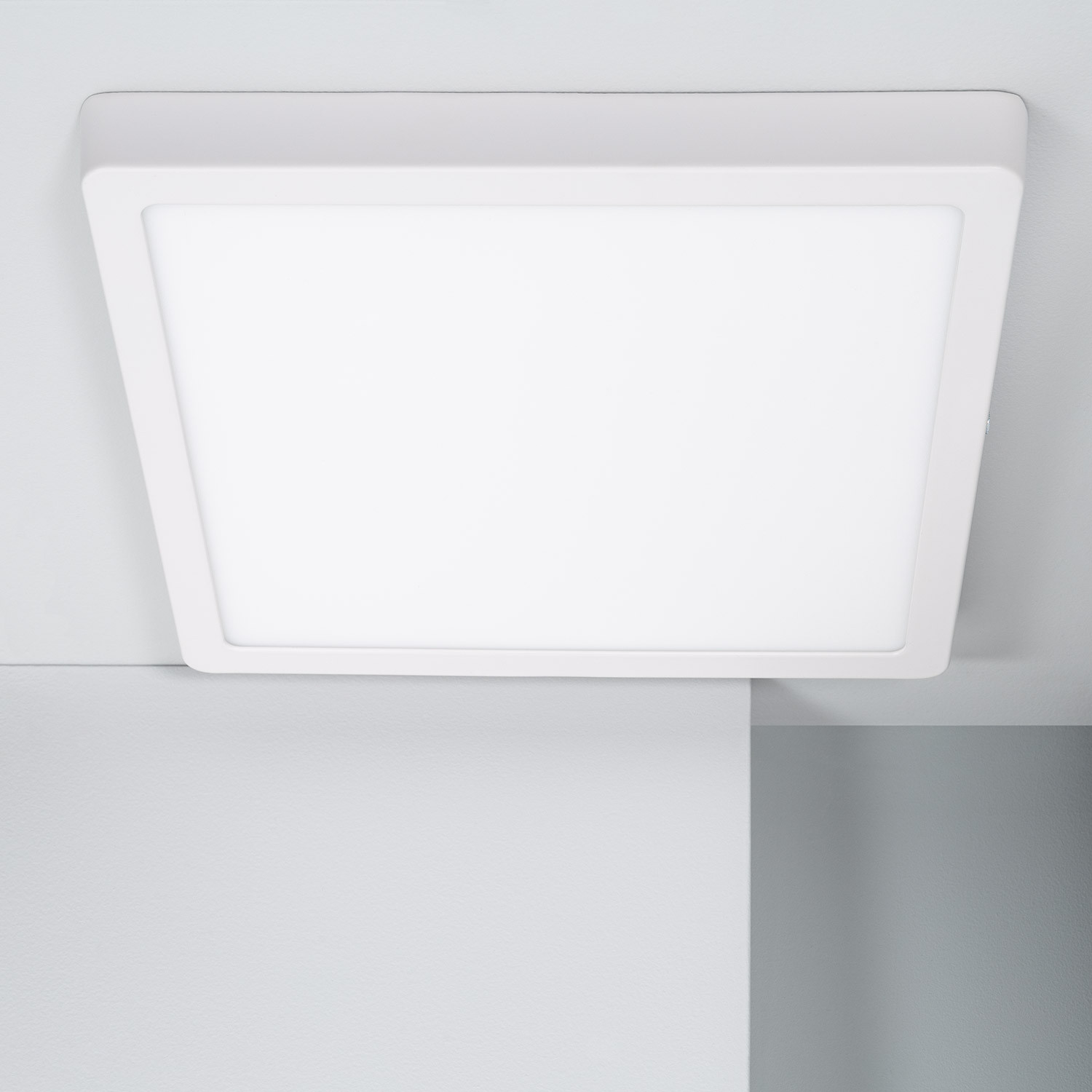

    InstallationSurface
  • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
    IP RatingIP20
  • Characteristic that describes the tone of light emitted by the product, such as warm, neutral or cool. It is measured in degrees Kelvin (K) and affects the atmosphere and the proper use of space.
    Light ColourCCT
  • Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
    LocationIndoor
  • Total amount of light emitted by the product, measured in lumens (lm). A high value ensures well-lit spaces.
    Lumens2400 lm
  • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
    Luminous Efficiency100 lm/W
  • Voltage level required for the product to function correctly.
    Voltage Range220-240V AC
  • Indicates how much energy the light source consumes, measured in watts (W). In LED lighting, the power is much lower than in traditional sources, and is related to the light intensity (lumens).
    Wattage24 W
  • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
    Working Temperature0 °C~+50 °C

• Product Data

  • Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
    Warranty3 years

• Product Information

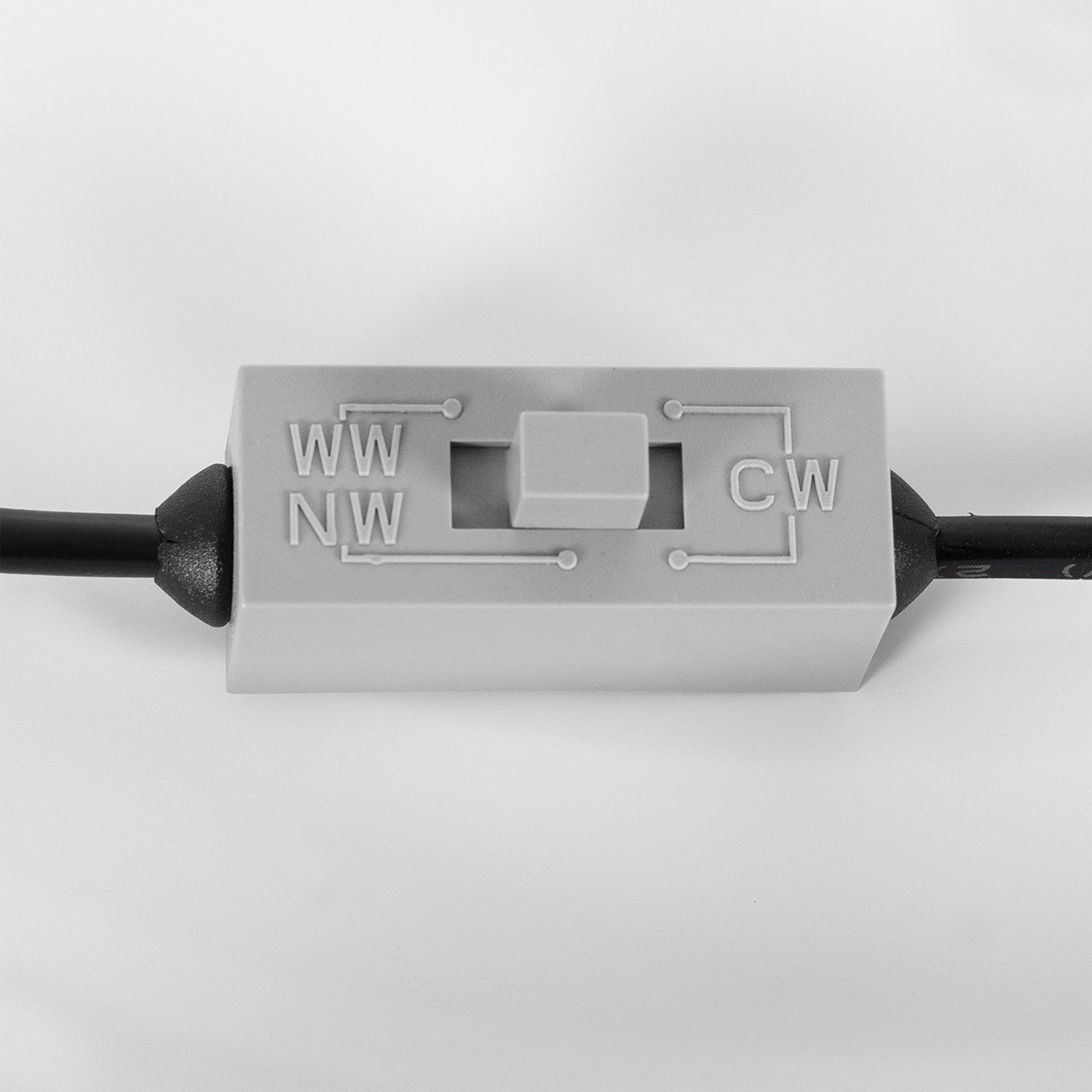

  • System used to control product characteristics, such as intensity regulation, color temperature or speed, adjusting its performance according to the user's needs.
    Type Of Dimming10% - 50% - 100%, SwitchDimm
