This product is discontinued
Below you can find the substitute product or some equivalents.
If you have any queries, please call us on telephone 020 3739 1978.

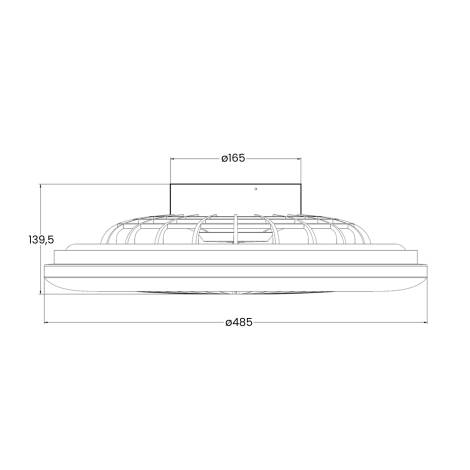

Dimensions
- Height140 mm
- Weight2.1 kg
- Mounting Plate Dimensions40 mm x Ø165 mm
- Diameter500 mm
Videos
How to Install a FanInstallation
How to Synchronize a Fan with “Tuya Smart”Tutorial
How to Synchronize Two Fans with the Same Remote ControlTutorial
Downloads
Technical Data Sheet PDF
111477_228544manual
DoC_111477_228544
Certificates and Stamps
Technical Specifications
Electrical Features
- ConfigurationWith light
- Electrical Insulation ClassI
- Fan Wattage18 W
- Frequency50-60 Hz
- Number Of Speeds6
- Remote ControlYes
- Sound level range30 dB - 47 dB
- Speed Range650 RPM - 1050 RPM
- Summer/Winter ModeYesFunction that reverses the fan's rotation to optimize air circulation according to the season. In summer, it helps to cool, and in winter, it distributes heat more efficiently.
- Type Of DimmingAPP, Remote Control
- Type Of MotorDC
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Adjustable In HeightNo
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- InstallationSurface
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- Recommended AreaMedium (between 10-20 m²)
Product Information
- BrandTECHBREY
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesZante
Driver Information
- AppTuya Smart
- CompatibilityAmazon Alexa, Google Assistant
- ConnectivityWi-Fi
- WifiYes
LED Features
- Hours40.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourCCT
Materials and Finishes
- Blade ColourTransparent
- ColourWhite
- Fitting MaterialABS Plastic
- IncludesRemote control remote control
Description
The Zante 35W SMART WIFI RGB+W LED Ceiling Fan in Ø 50cm has an elegant look that makes it a decorative and functional element.
This Fan has 2 light points:
- Upper indirect RGB light
- Lower direct White CCT light
The Zante SMART WIFI RGB+W LED Ceiling Fan in Ø 50cm has WIFI control that allows adjusting both the colour of the upper light (RGB) and the brightness of the lower light and its colour temperature, making it possible to adjust and adapt to the desired atmosphere by the user.
Configuration and management will be carried out through the TUYA application available for iOS and Android operating systems. This can be downloaded from the App Store and Google Play respectively.
Absolute compatibility with Amazon Alexa, Google Home.
It has remote control, with 6 functions:
- Fan on and off
- Main light on and off.
- Adjust and change the colour temperature of the main light to warm, neutral or cool.
- Turn on, off and change RGB indirect light colour.
- 6 speeds.
- Fan timer 2, 4 and 8 hours.
