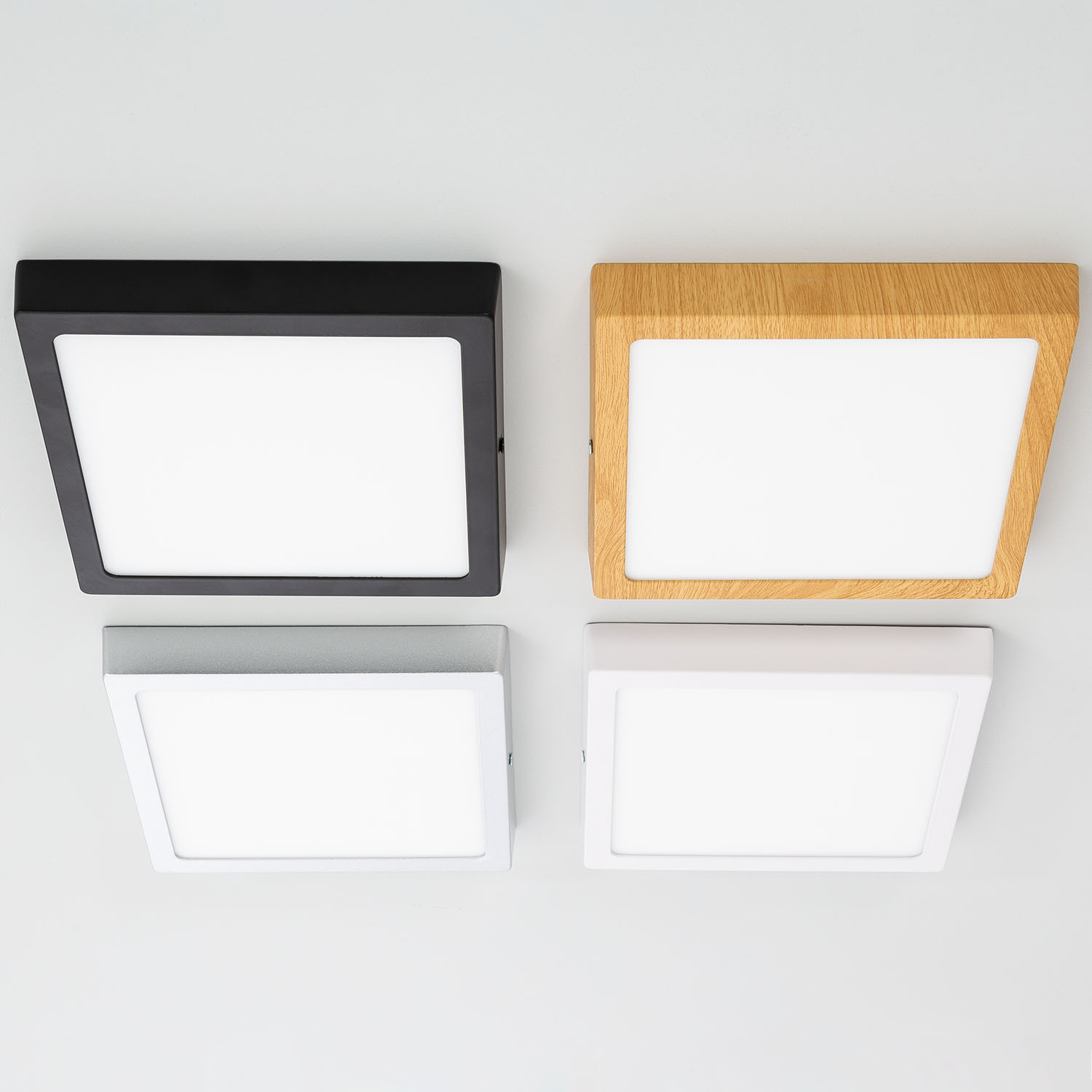

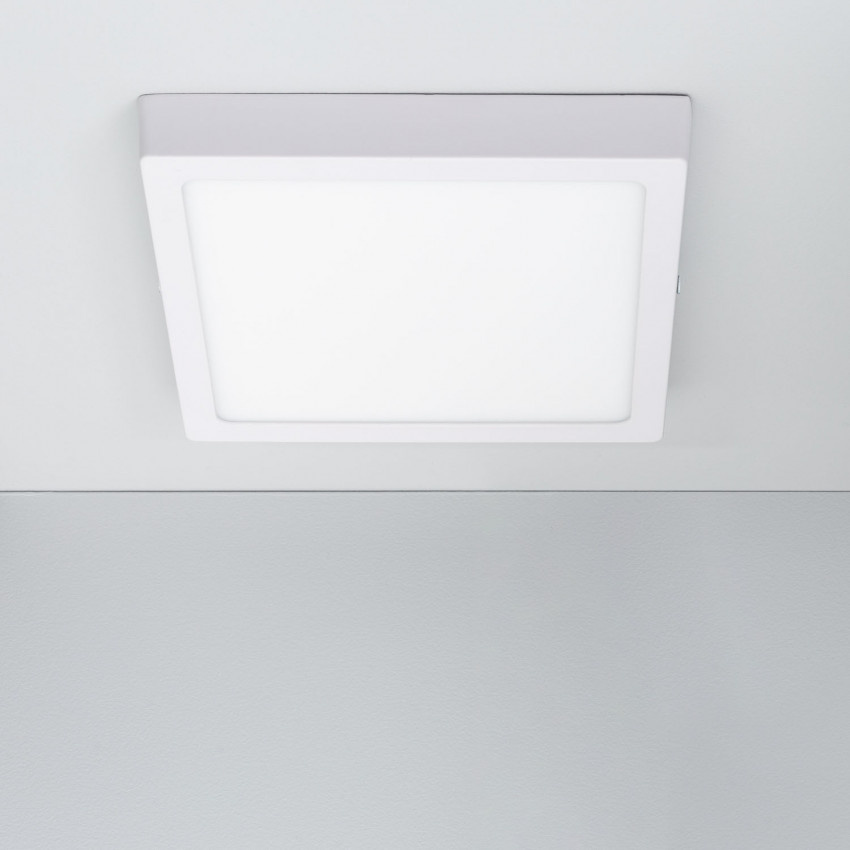

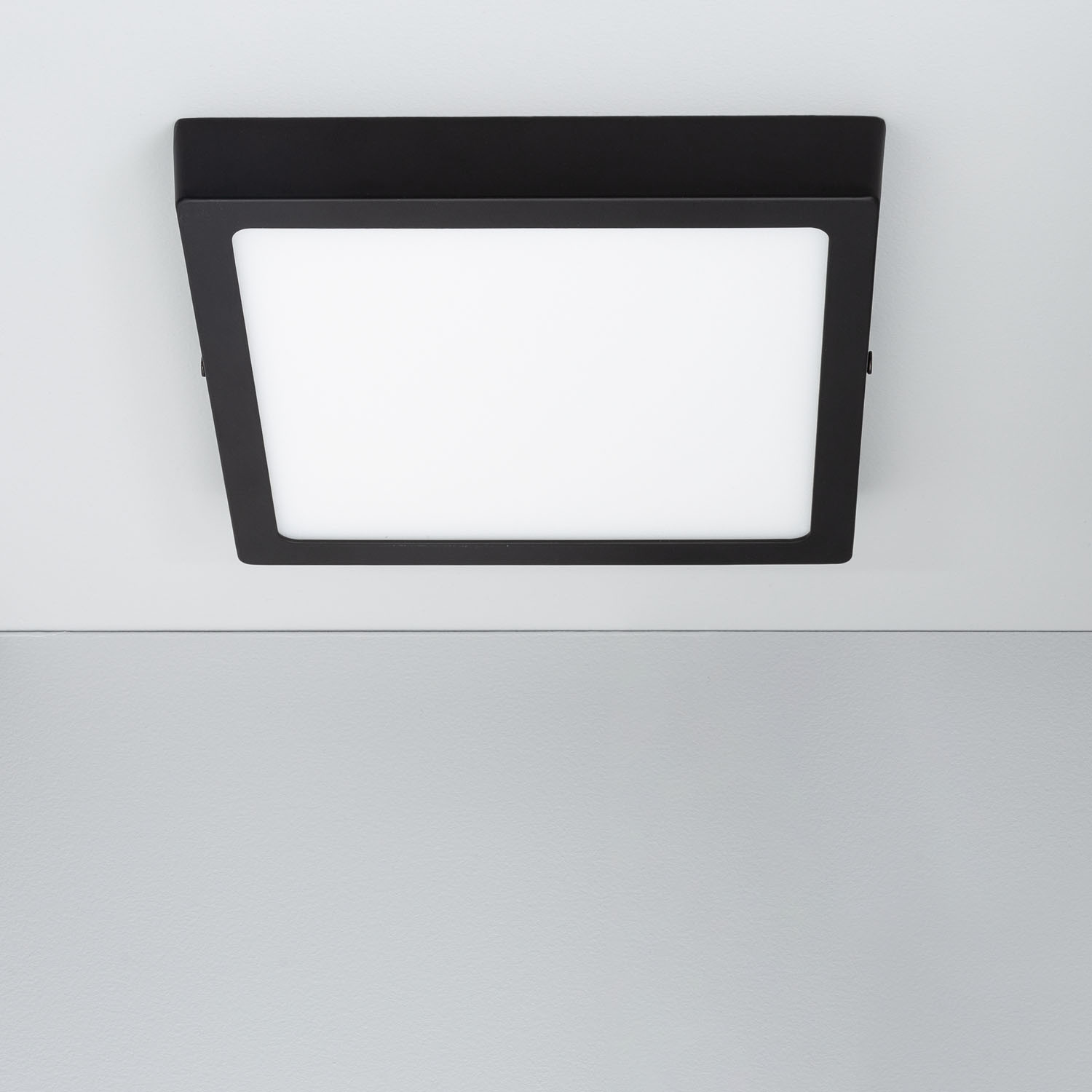

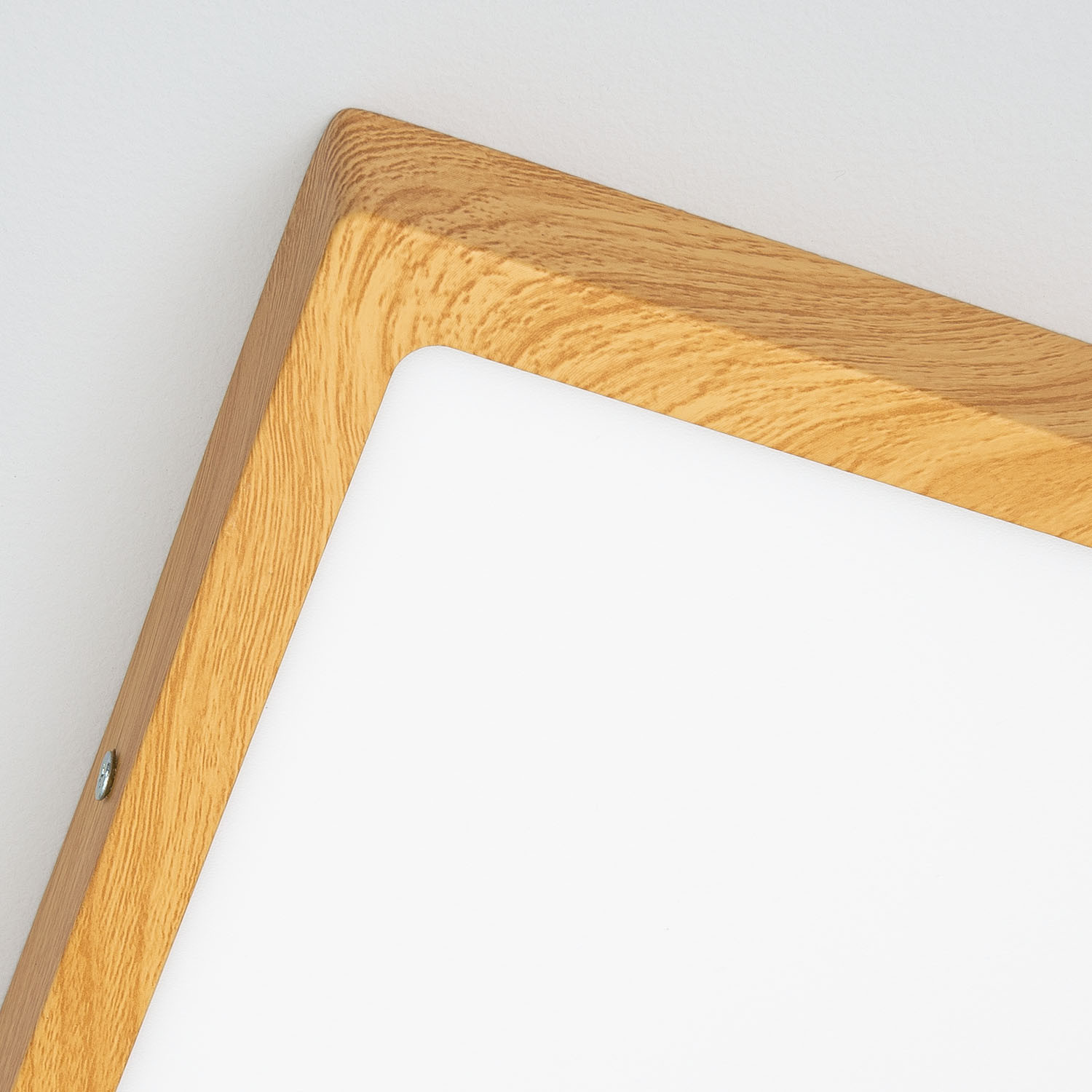

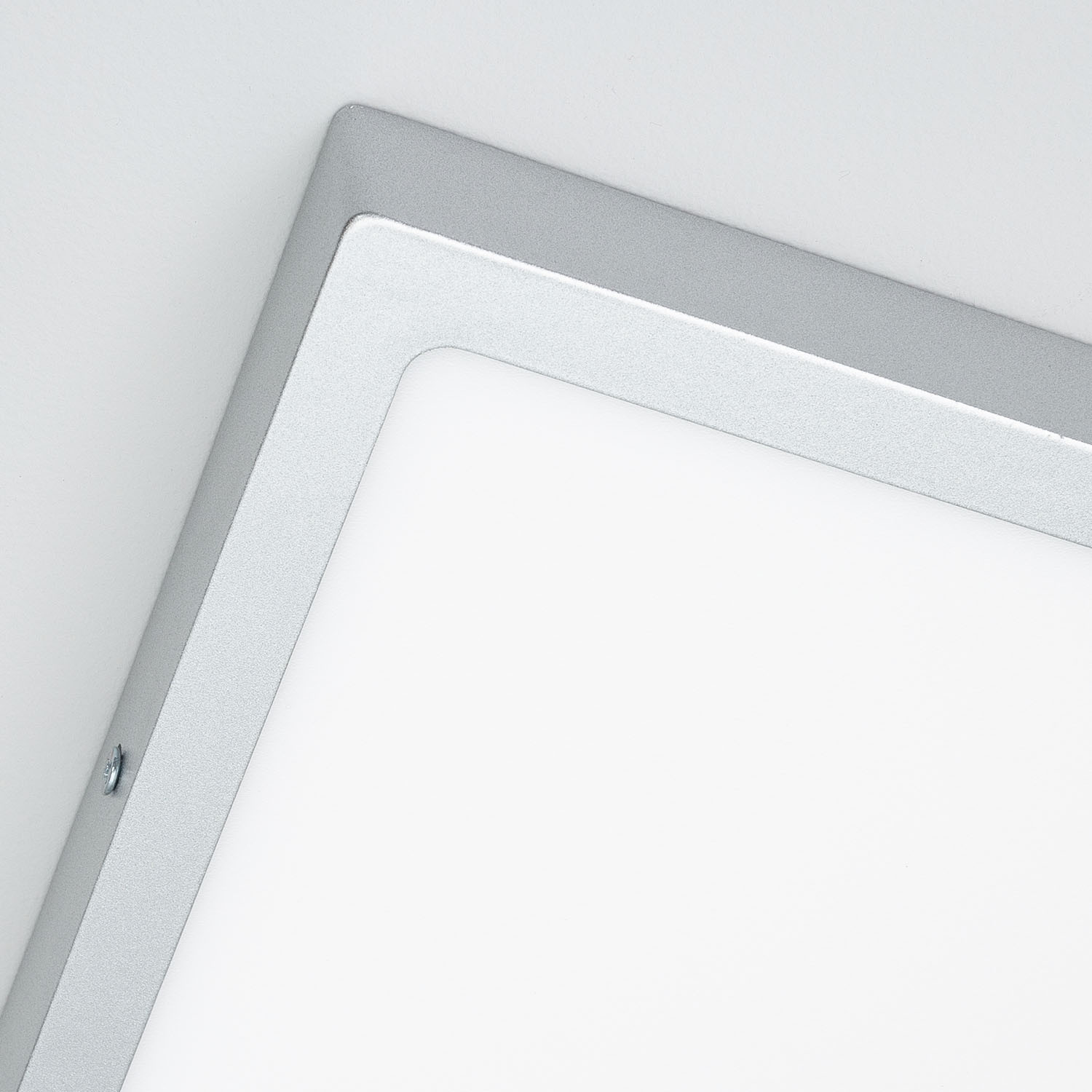

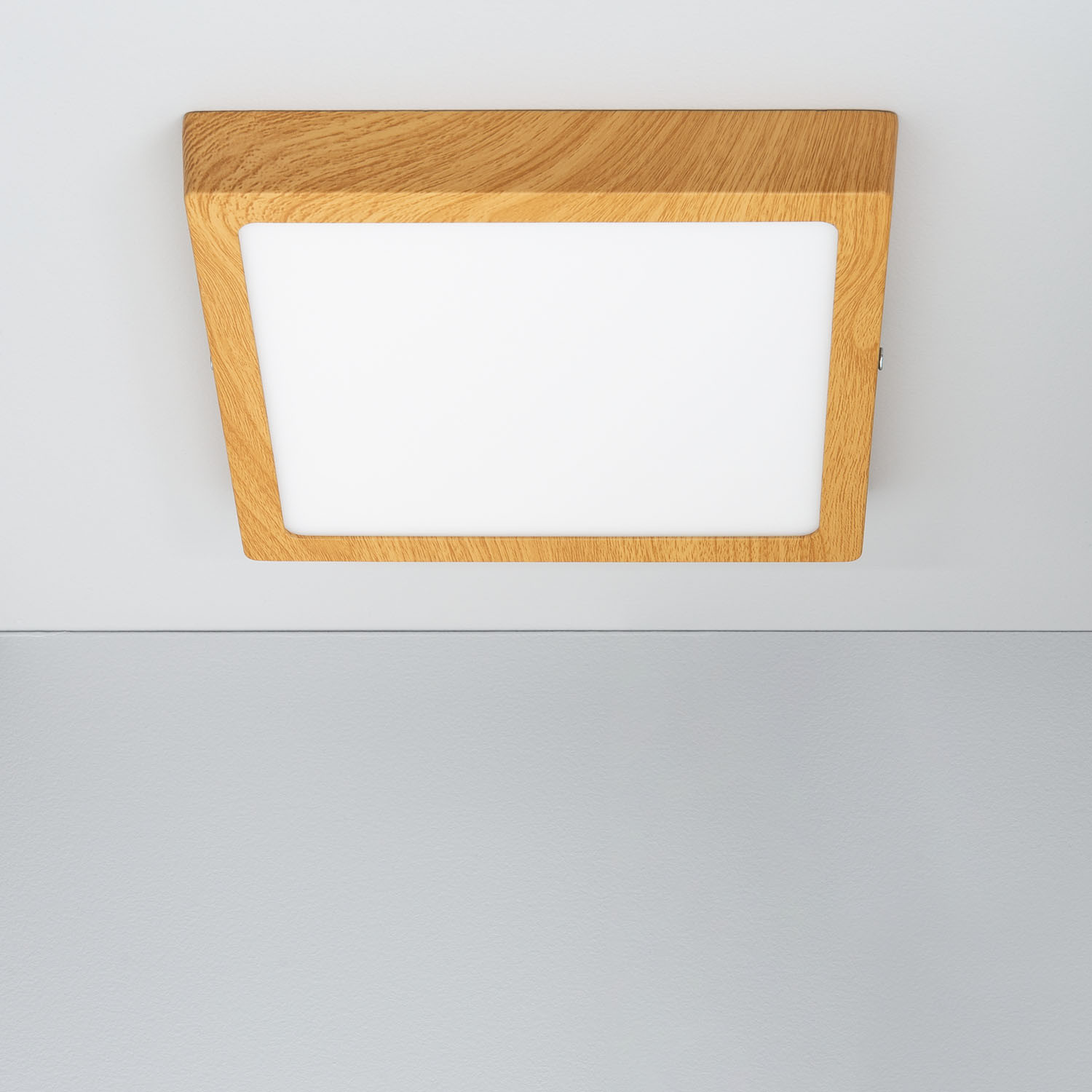

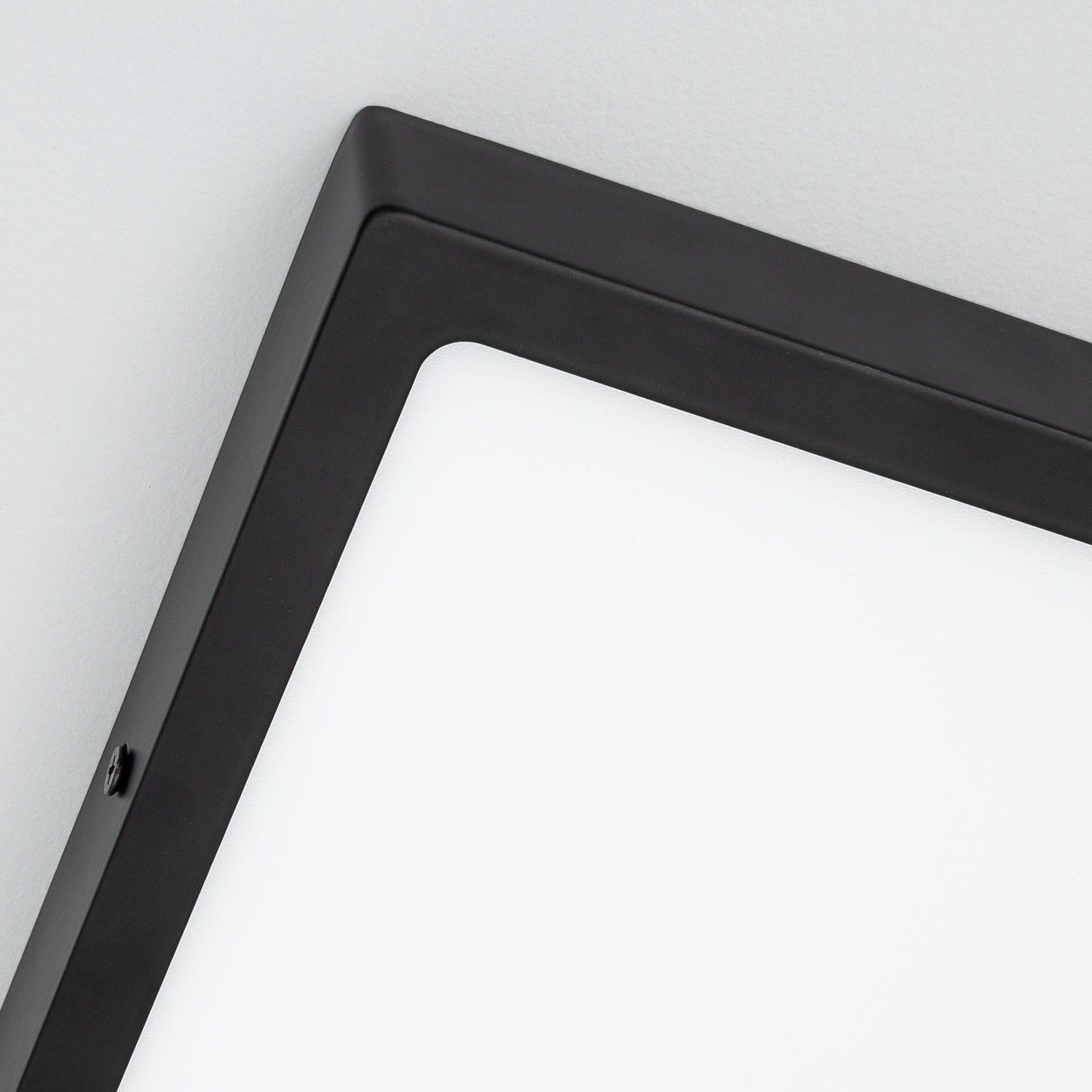

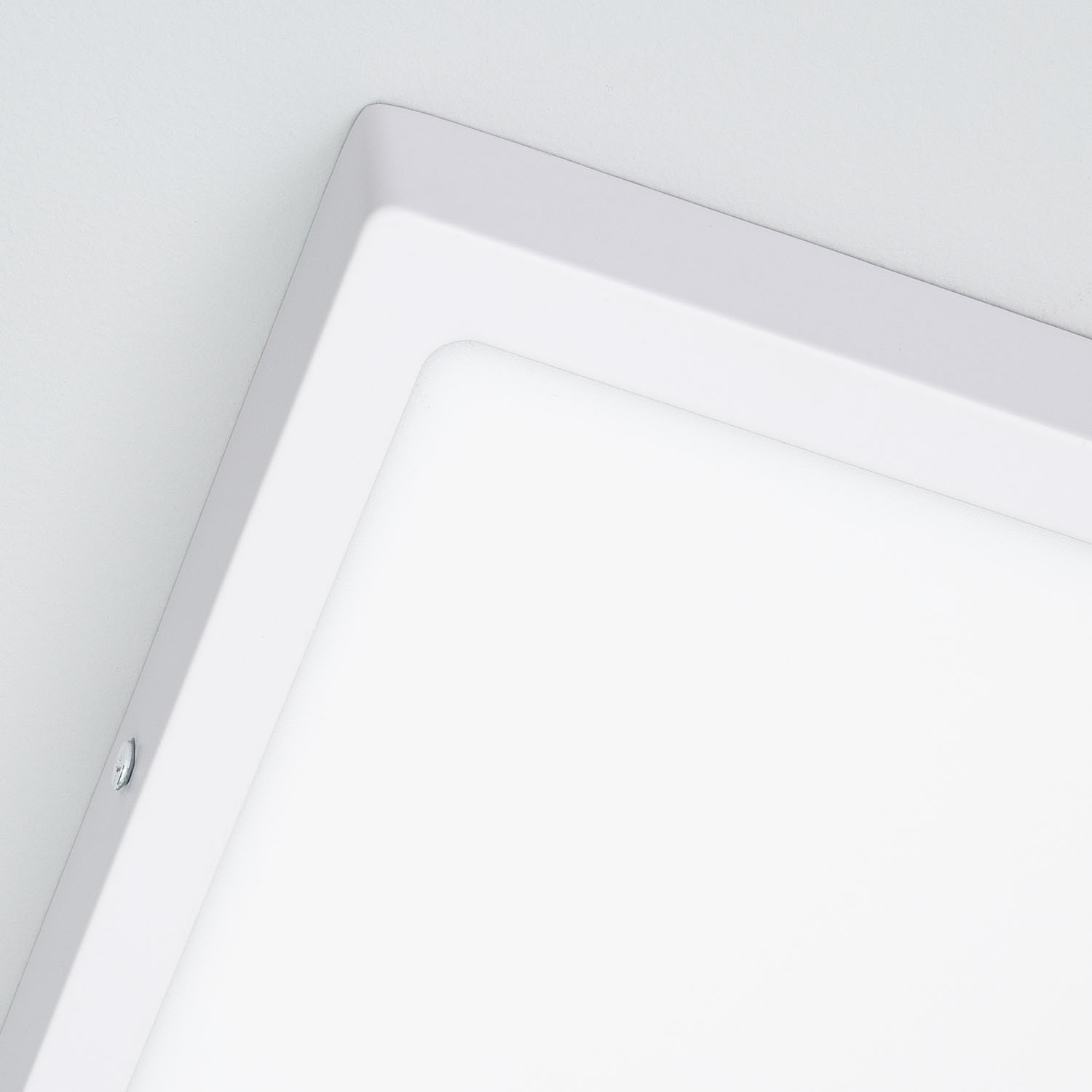

18W Galan Aluminium CCT Selectable SwitchDimm Slim Square LED Surface Lamp 210x210 mm

Energetic efficiency

£16.29

£19.49

-16%

Ref: 95547

Colour Natural

In Stock, delivery in 24/48h

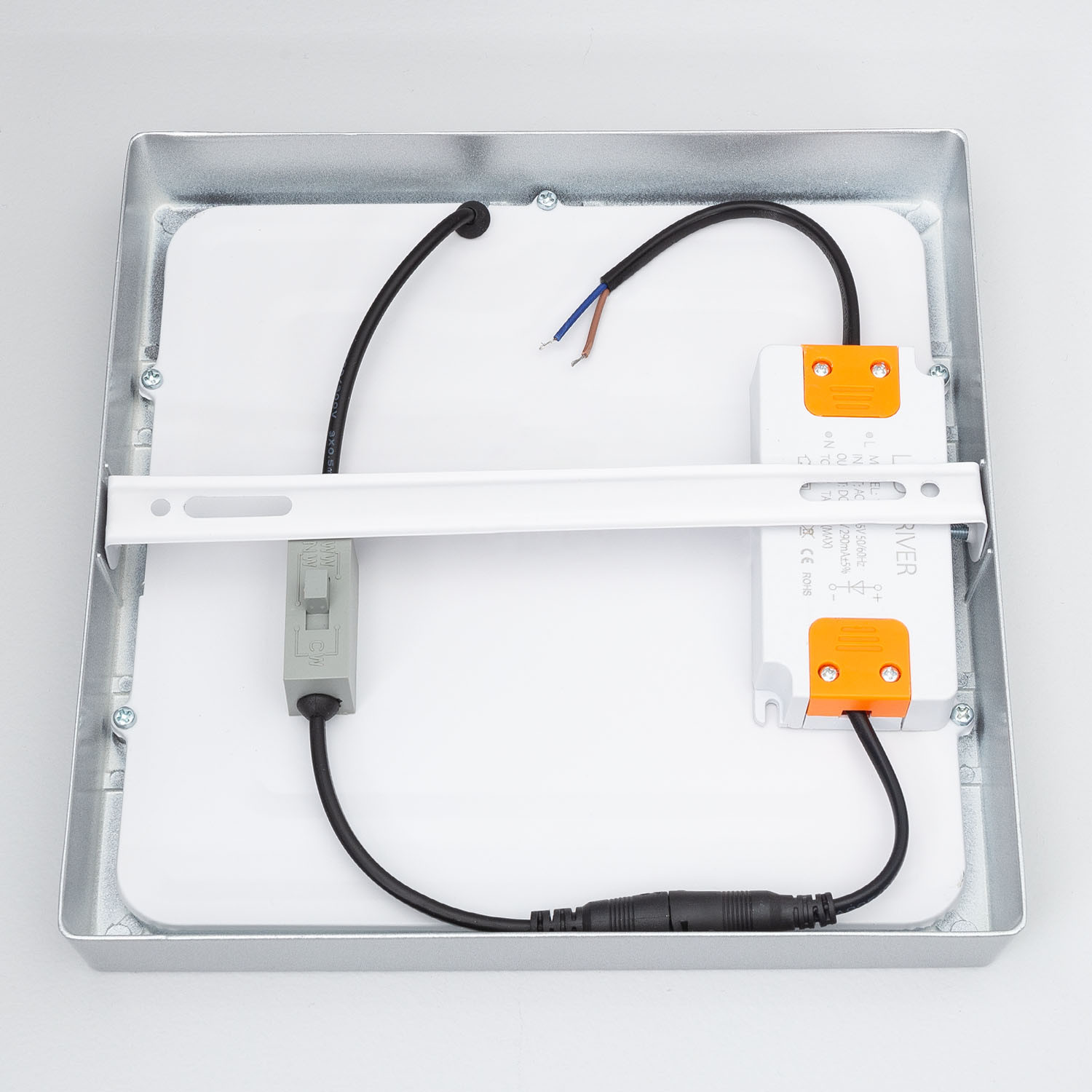

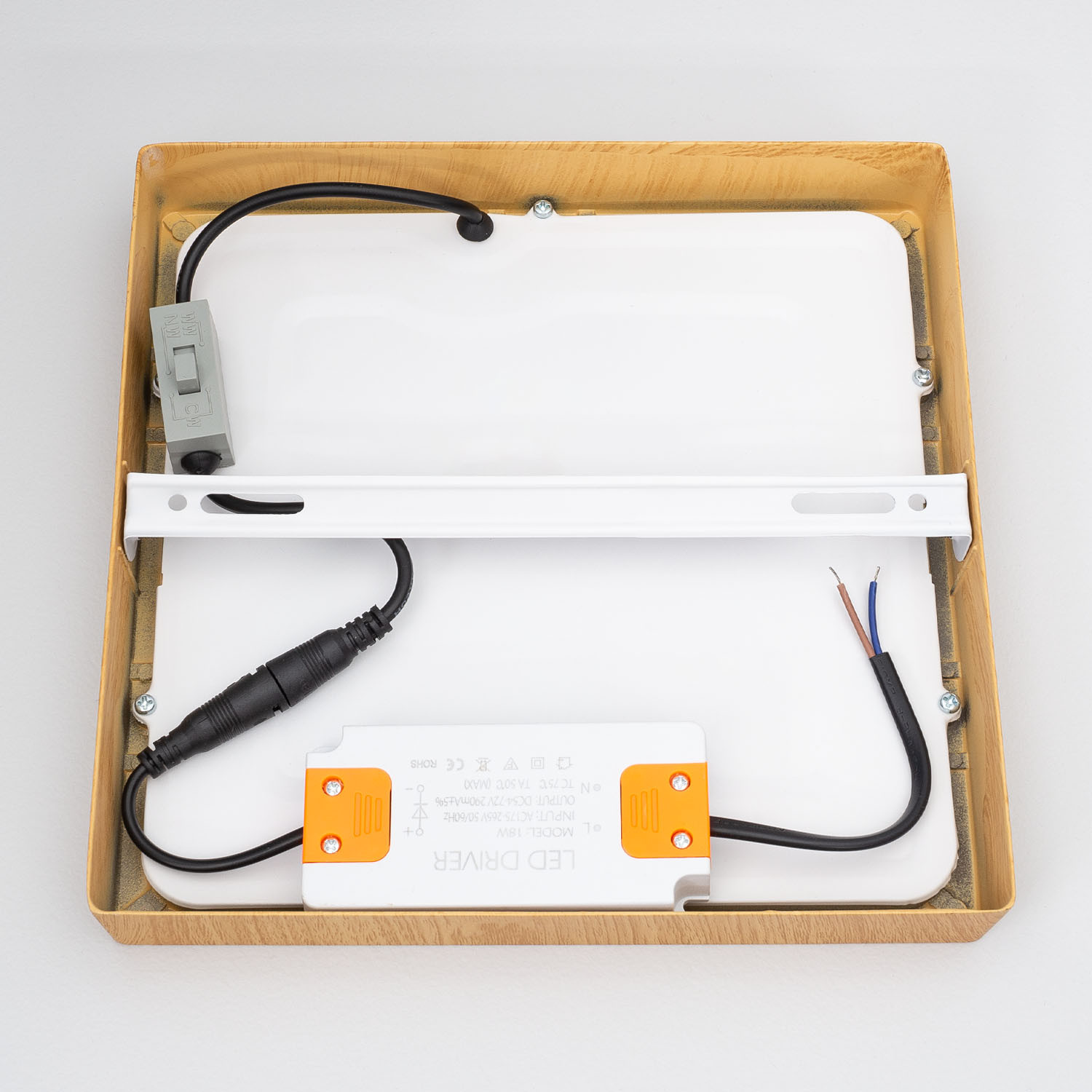

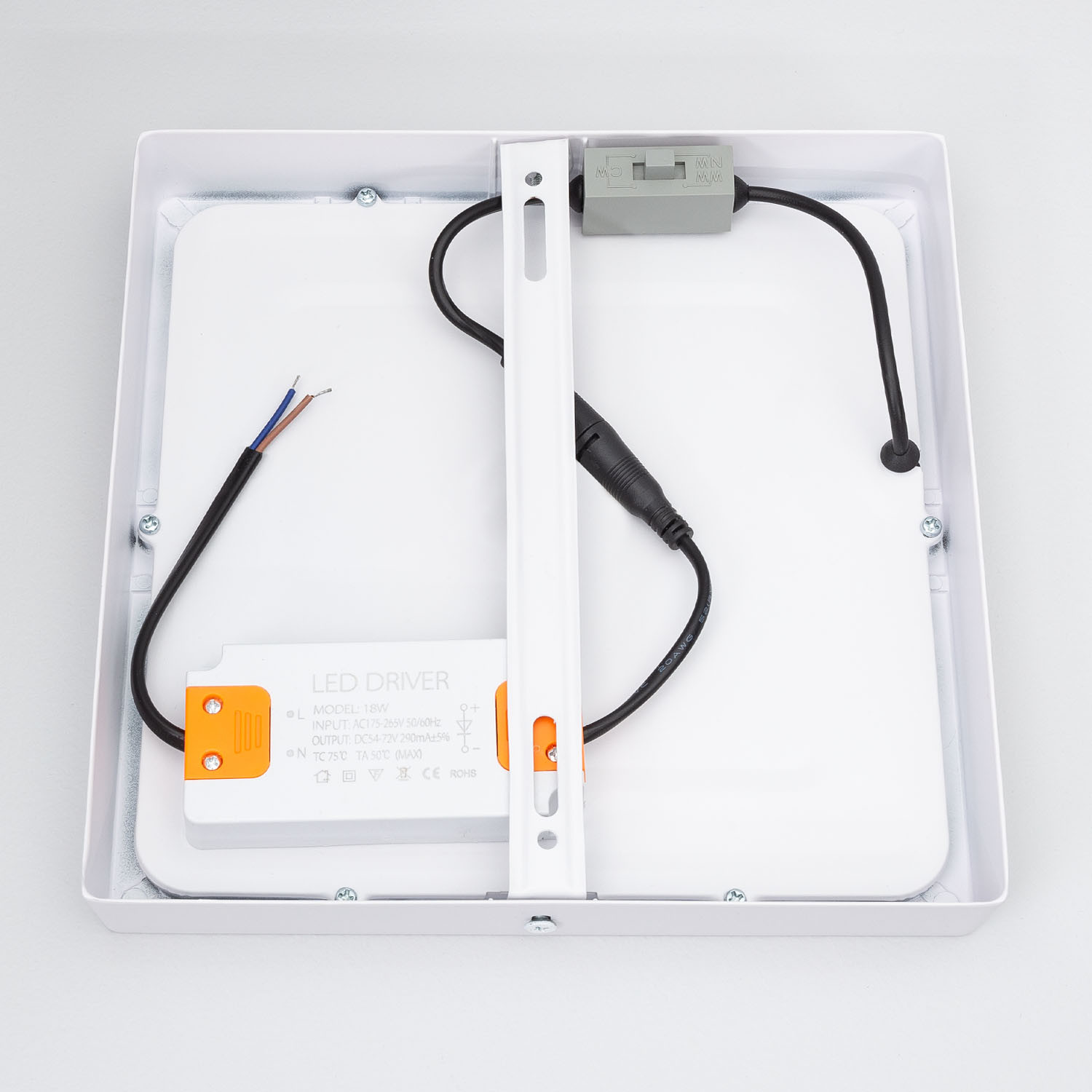

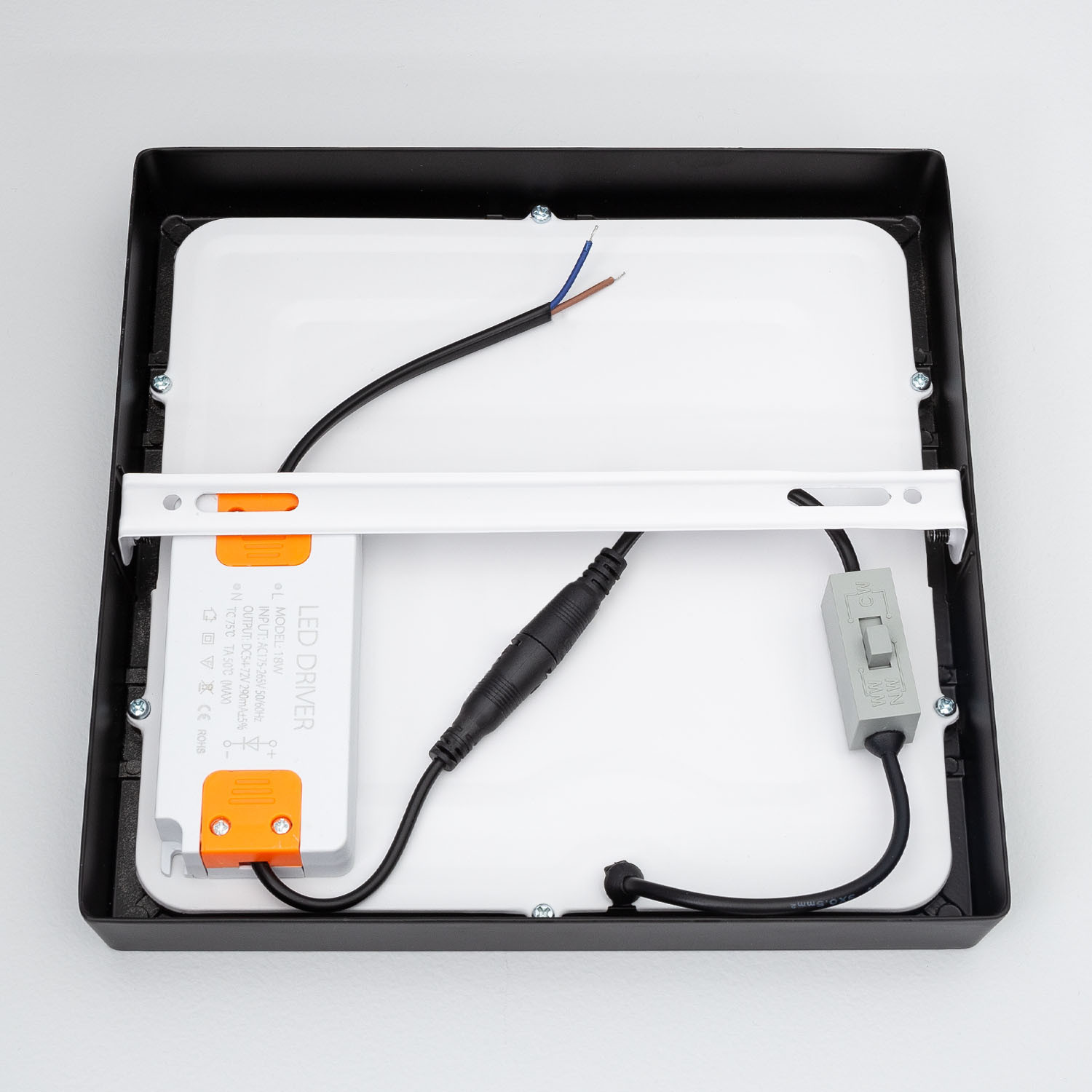

Includes Driver

Buy now, pay later

Credit payment
Are you a professional? Register and enjoy special conditions.

You may like

Dimensions

  • Height28 mm
  • Depth210 mm
  • Dimensions28 mm x 210 mm x 210 mm
  • Width210 mm
Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+50 °C
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, UKCA
    • Specification of the color of the product or its light (in the case of products such as lamps or light bulbs), which may affect the aesthetics and functionality of its use.
      ColourNatural
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature3000K - 6000K
    • It indicates that the product allows parameters such as light intensity, speed or color temperature to be adjusted, providing greater flexibility and customization.
      DimmableYes
    • Level of electrical current that the driver is capable of handling to power components, such as LEDs, ensuring safe and efficient operation.
      Driver Intensity290 mA
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension54 V-72 V
    • Level of electrical protection of the product against shocks. Indicates whether it is suitable for different conditions of use, guaranteeing safety in the installation.
      Electrical Insulation ClassII
    • Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
      Fitting MaterialAluminium
    • Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
      Frequency50-60 Hz
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK05
    • Information on how the product should be placed or mounted, such as instructions on whether it requires professional installation or is easy to do by the end user.
      InstallationSurface
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • Characteristic that describes the tone of light emitted by the product, such as warm, neutral or cool. It is measured in degrees Kelvin (K) and affects the atmosphere and the proper use of space.
      Light ColourCCT
    • Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
      LocationIndoor
    • Total amount of light emitted by the product, measured in lumens (lm). A high value ensures well-lit spaces.
      Lumens1800 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency100 lm/W
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Indicates how much energy the light source consumes, measured in watts (W). In LED lighting, the power is much lower than in traditional sources, and is related to the light intensity (lumens).
      Wattage18 W
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature0 °C~+50 °C
  • Product Data

    • Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
      Warranty3 years
  • Product Information

    • System used to control product characteristics, such as intensity regulation, color temperature or speed, adjusting its performance according to the user's needs.
      Type Of Dimming10% - 50% - 100%, SwitchDimm
Illuminate your outdoor spaces

Description

The 18W Galan Aluminium CCT Selectable SwitchDimm Slim Square LED Surface Lamp 210x210 mm offers a soft, homogeneous and efficient illumination and has a modern and Nordic design.

Features of the 18W Galan Aluminium CCT Selectable SwitchDimm Slim Square LED Surface Lamp 210x210 mm

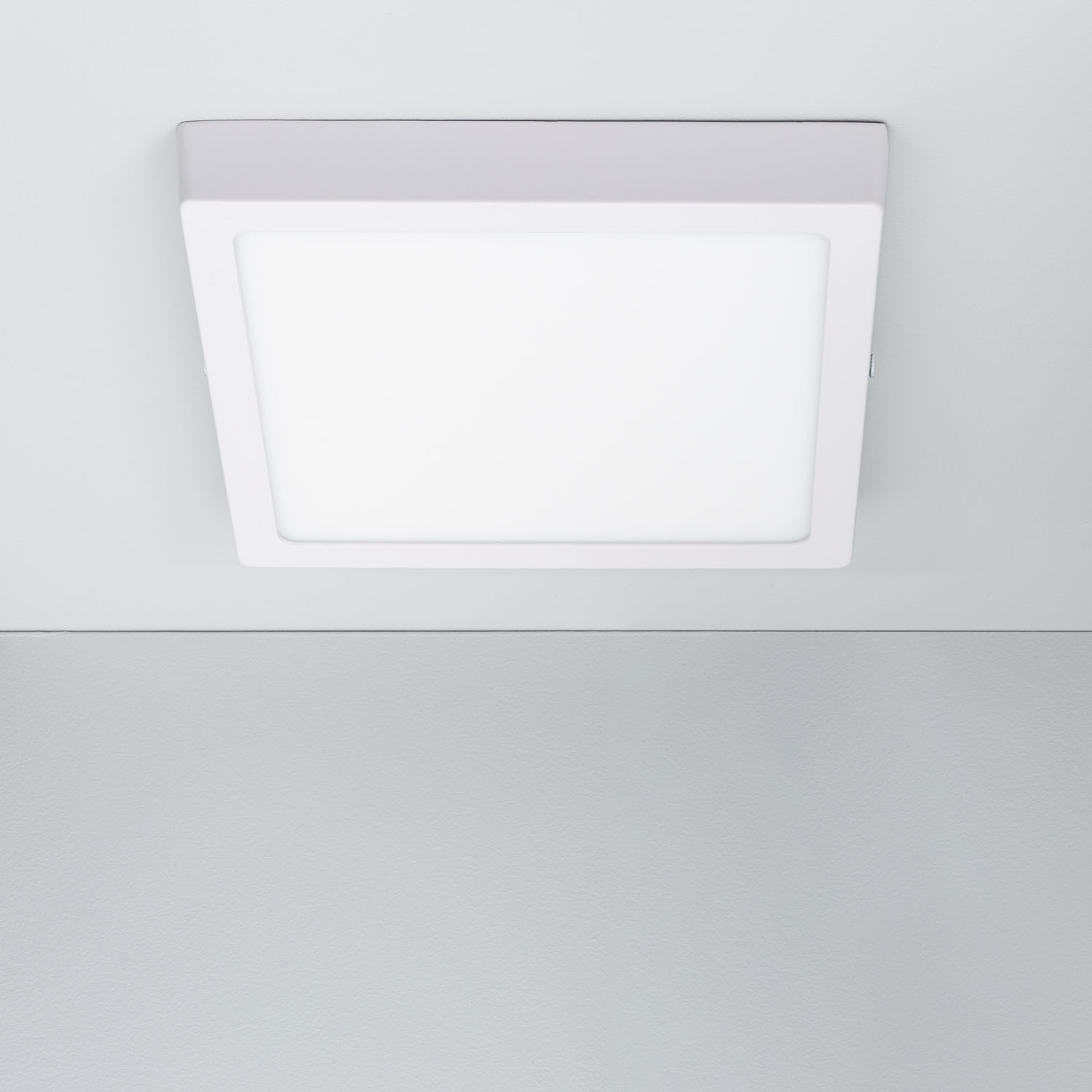

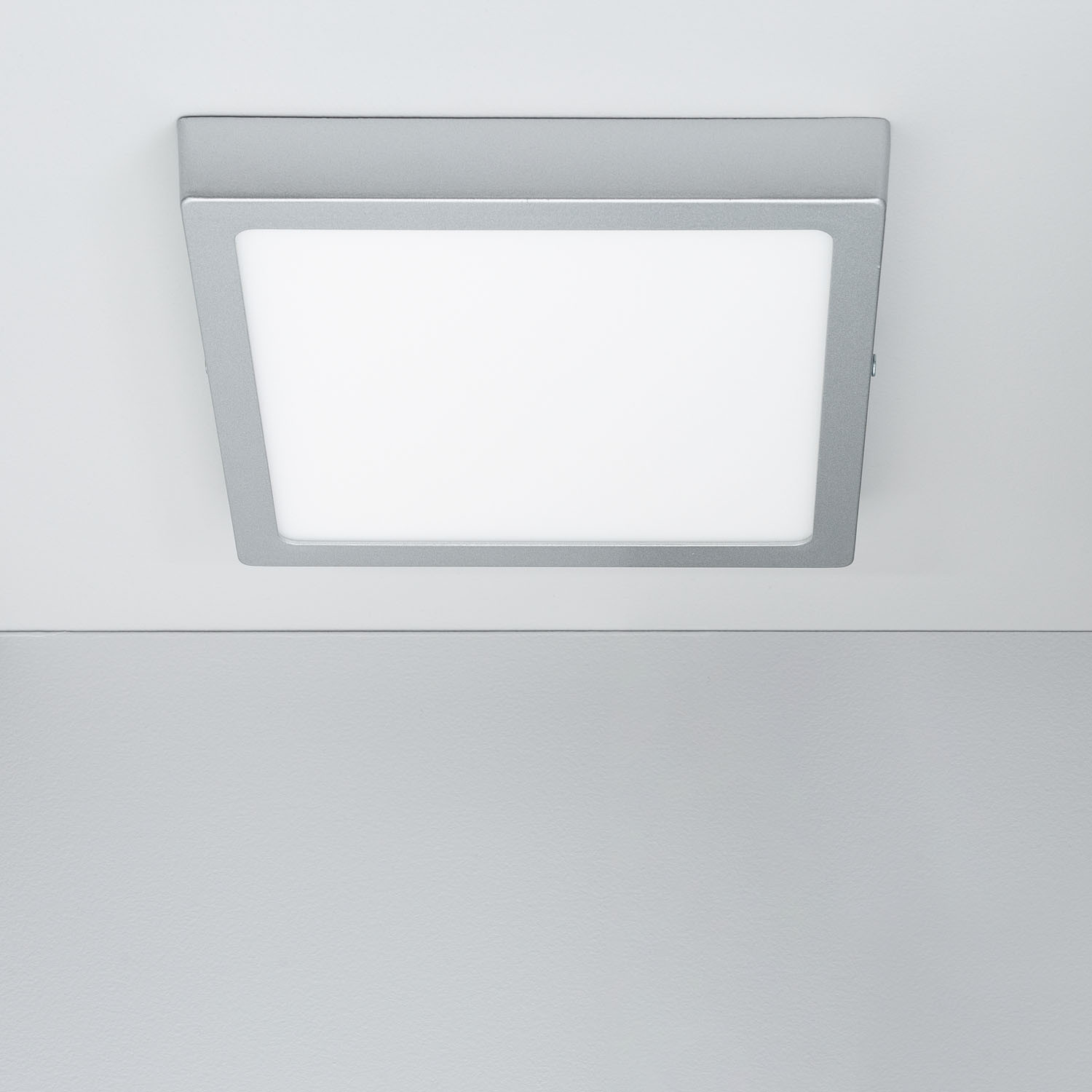

It adapts to all types of finishes and its installation in any type of ceiling, whether plaster, concrete or other types of surfaces, is really simple. The Galán Square LED ceiling light is recommended for new construction or refurbishment, replacing old spotlights. It is perfectly suitable for use in living rooms, offices, receptions, bedrooms, corridors, etc., although it is mainly used in homes.

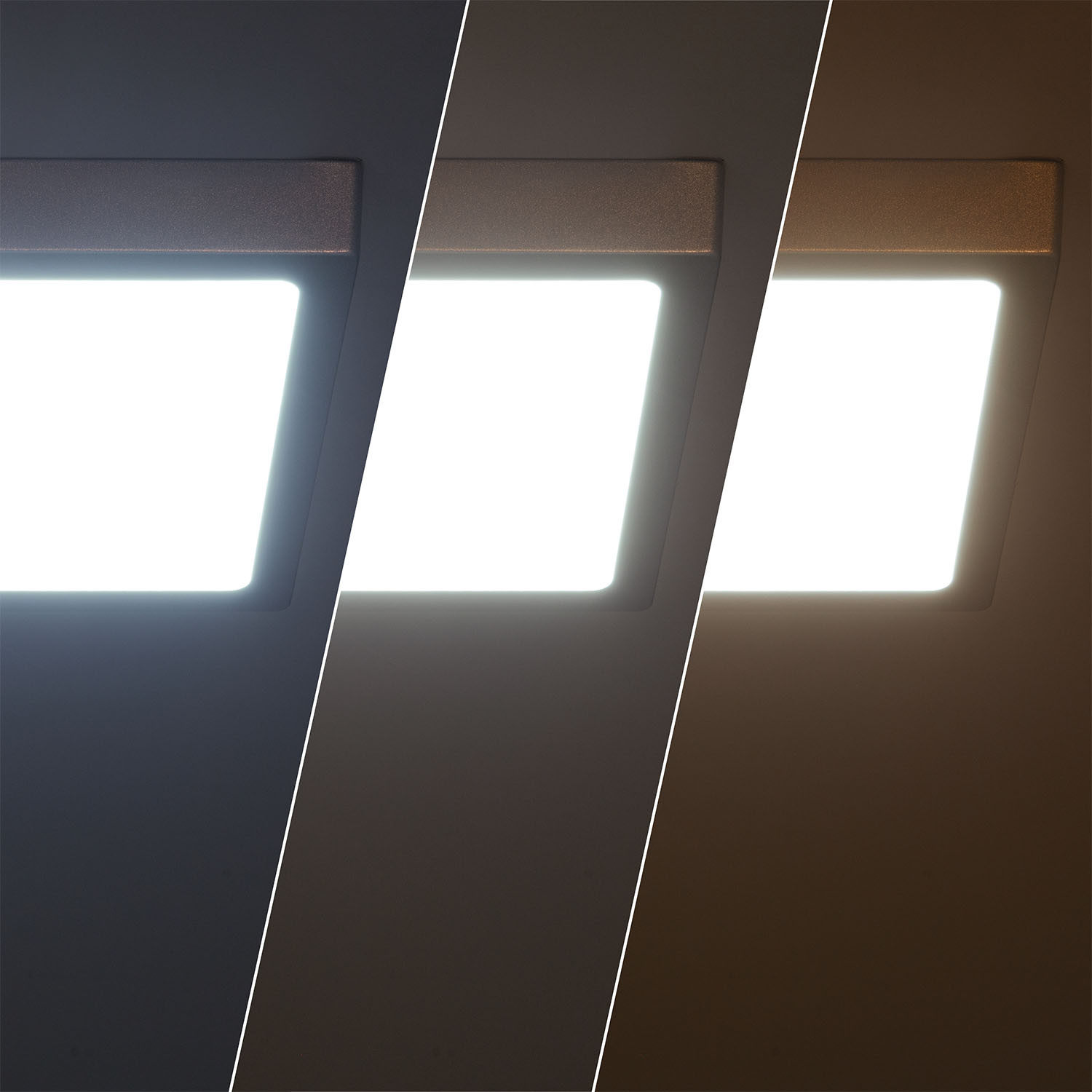

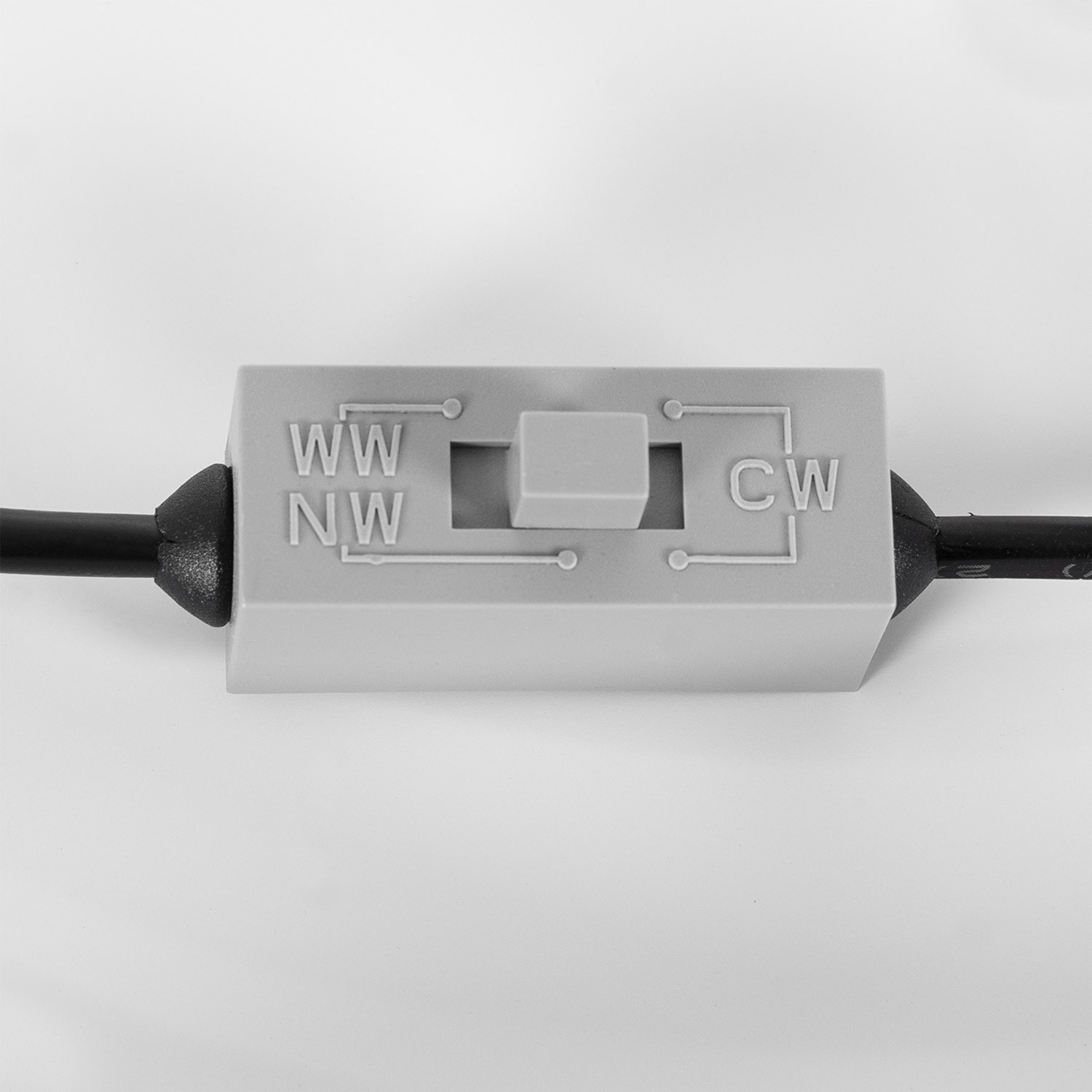

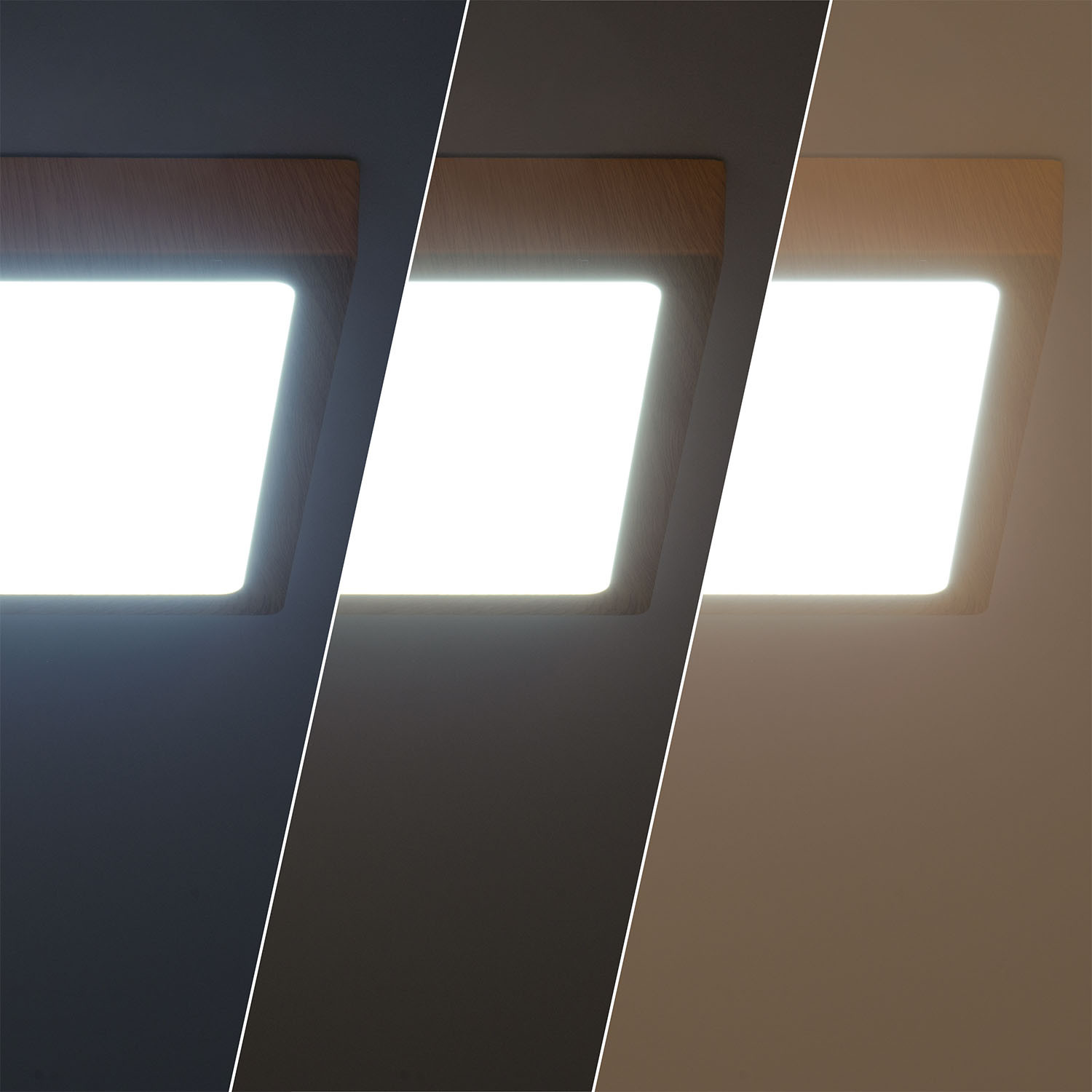

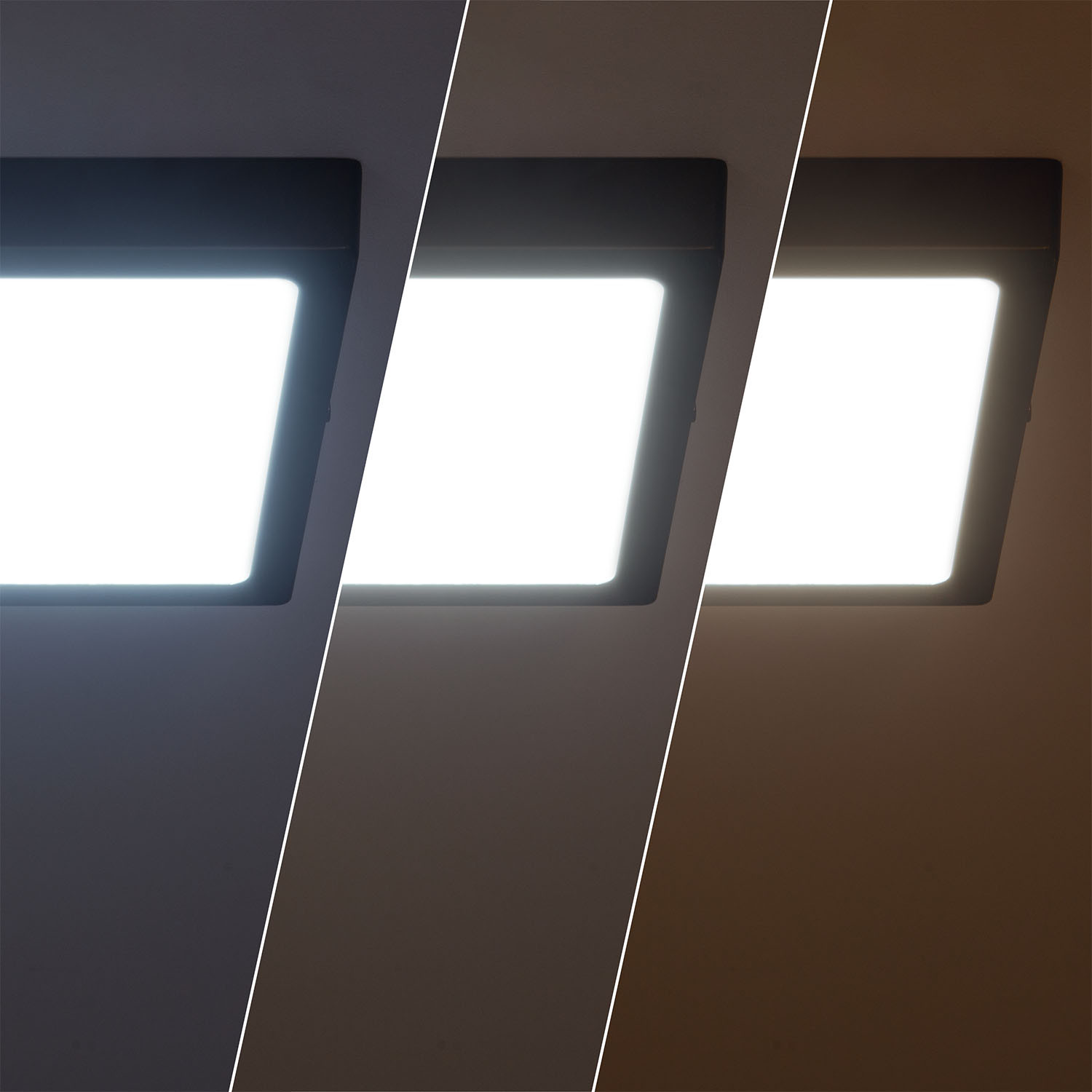

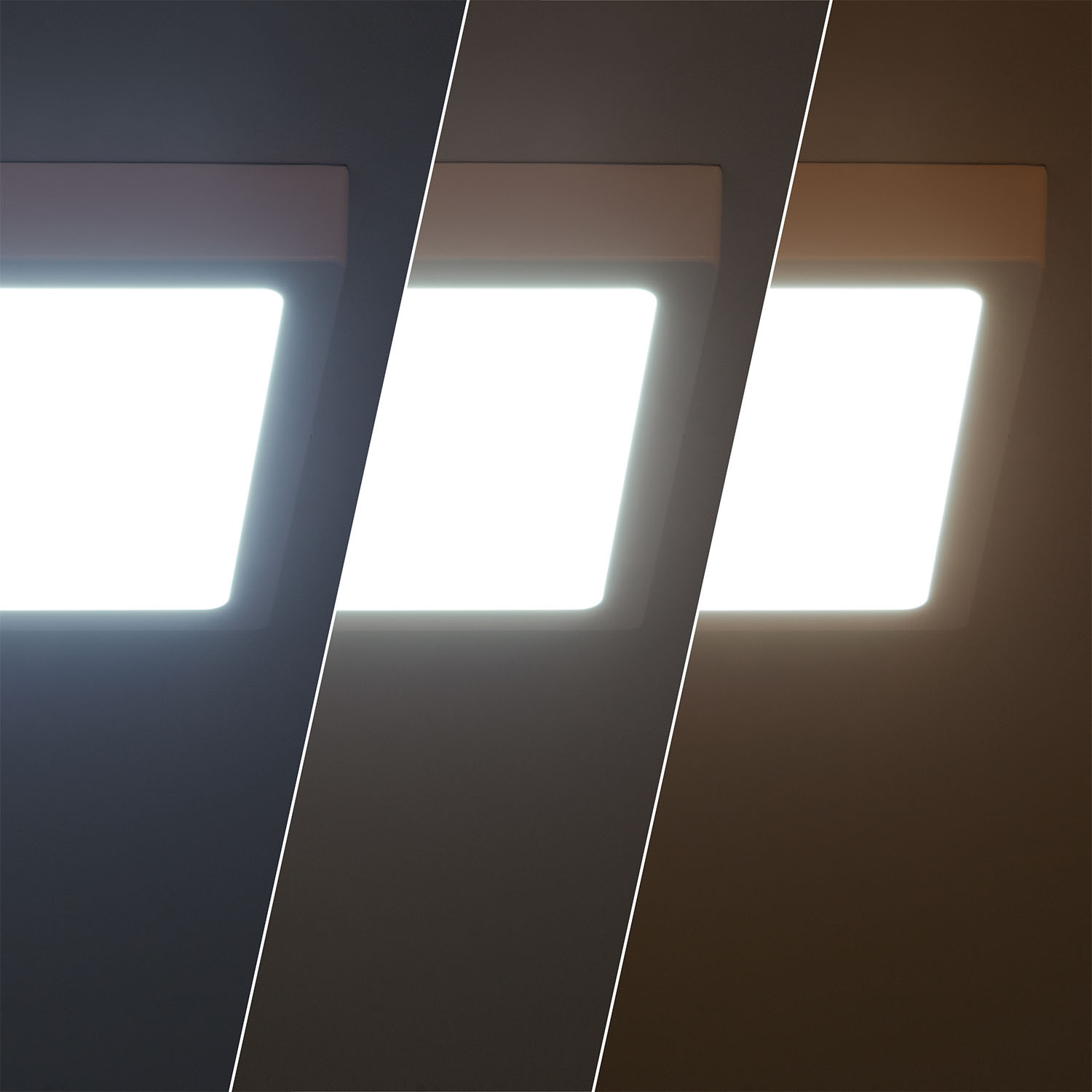

Illuminate and decorate any space in a unique way with the 18W Galan Aluminium CCT Selectable SwitchDimm Slim Square LED Surface Lamp 210x210 mm, by means of a switch, you can select between 3 different colour temperatures: Warm White 3000K, Neutral White 4000K and Cool White 6000K.

It integrates SwitchDimm System. Its operation is very simple, it allows 3 brightness level adjustments with a single switch. To change the brightness level you only have to turn on, turn off and turn on quickly until you find the desired mode. The SwitchDimm system is not compatible with dimmer switches.

What does CCT (correlated colour temperature) mean?
When a product is marked as CCT it means that we can change the colour temperature. CCT is defined in degrees Kelvin, according to the colour perception of a white LED to the human eye, we can differentiate between 3 types of colour; a warm light, a neutral light and a cool light, from 2700-3500K, 4000-4500K and 5000-6500K respectively. The CCT values do not indicate anything about the colour rendering capability of the LED.
