Wattage 900 W
Voltage Range 220-240V AC
Lumen 135000 lm
Type Of Dimming 1-10 V
Wattage
900 W
Voltage Range
220-240V AC
Lumen
135000 lm
Type Of Dimming
1-10 V
Power Factor
0.95
IP Rating
IP66
Battery Operated
No
Dimensions
765 mm x 510 mm x 136 mm
Width
510 mm
Height
765 mm
IK Protection
IK08
Luminous Efficiency
150 lm/W

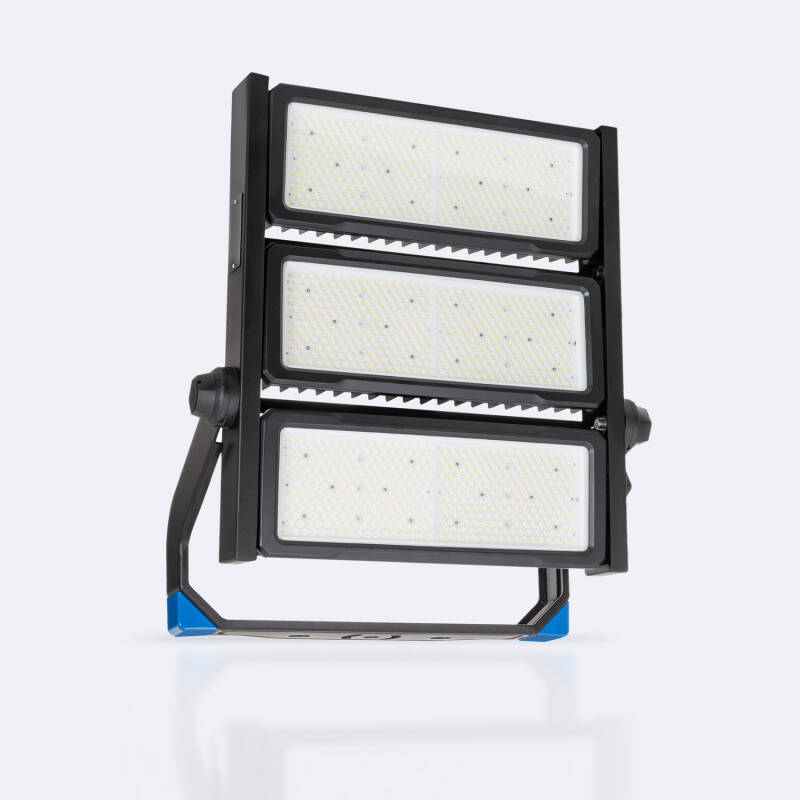

Professional Stadium 900W 1-10V Dimmable LED Floodlight INVENTRONICS 170lm/W IP66 LUMILEDS
Ref. Ledkia: 115722
Colour Temperature Daylight 5000K
Optic 30º
In Stock, delivery in 16-21 days
£856.99
VAT includedIn Stock, delivery in 16-21 days
Modular Product (Requires Assembly)
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
24h Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £49.99 (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Cable Length150 cm
- Weight26 kg
- Dimensions765 mm x 510 mm x 136 mm
Downloads
PDF Datasheet 115722_236545 EN
Installation Manual
DoC_115722_236545
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS 3030
- Nominal Voltage100 V - 277 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Type Of Dimming1-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage900 W
Mechanical Features
- Ambient Working Temperature-20 °C~+40 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK08Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationSurface
- Installation of the bracketWall with U-bracket, Pole with U-bracket, On-wall base with U-bracket
- IP RatingIP66The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor, Indoor
- Modular Product (Requires Assembly)Yes
- Optic30ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee7 years
- Product SeriesStadium PRO-I
LED Features
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature5000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours80.000 HorasEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- LED Performance170 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourDaylight
- Lumen135000 lm
- Luminous Efficiency150 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Power Factor0.95
- Standard colour deviation (MacAdam)SDCM ≤ 5
Materials and Finishes
- ColourBlack
- Fitting MaterialGlass, Aluminium, PC
Driver Information
- Driver BrandINVENTRONICS
- Driver Intensity7600 mA
- Driver Power456 W
- Driver Tension21 V-60 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- WifiNo
Description
The Professional Stadium 900W LED Floodlight is a high-power projector designed for both indoor and outdoor use, featuring 1-10 V dimming control and a robust IP66 protection rating for reliable performance in demanding environments.
General information about Professional Stadium 900W 1-10V Dimmable LED Floodlight INVENTRONICS 170lm/W IP66 LUMILEDS
This product belongs to the Stadium Profesional series, a range of LED floodlights tailored for professional sports lighting with a modular design. It integrates LUMILEDS 3030 light sources delivering a luminous efficiency of 150 lm/W and a total luminous flux of 135,000 lumens. The floodlight is equipped with an INVENTRONICS driver supporting 1-10 V dimming, ensuring precise light level control. The fitting combines aluminium, glass, and polycarbonate materials and features an electrical insulation class I, an IK08 impact resistance, and a ULOR of 0%, optimising light distribution.
Use and applications
Ideal for public administration, industry and production, and logistics and warehouses, this floodlight is suitable for illuminating access points, façades, gardens, yards, perimeters, and internal roads. Its versatility allows installation in both indoor and outdoor environments, including commercial, residential, and transport sectors, providing professional-grade lighting for large-scale and demanding projects.
Key benefits
- High luminous output: delivers 135,000 lumens for powerful illumination of large areas.
- Precise dimming control: 1-10 V regulation enables adjustable light levels to suit specific needs.
- Robust protection: IP66 rating ensures resistance against dust and water ingress for outdoor use.
- Durability in impact: IK08 protection safeguards the fixture against mechanical impacts.
- Modular design: facilitates assembly and maintenance, adapting to various installation requirements.
Highlighted specifications
Power: 900 W; Dimensions: 765 mm x 510 mm x 136 mm; Ambient working temperature: -20 °C to +40 °C; Colour Rendering Index (CRI): 80.
Installation and maintenance
Installation is designed for surface mounting using a U-bracket system compatible with walls, poles, and on-wall bases. The modular assembly allows for straightforward mounting and orientation adjustments. Maintenance procedures should follow safety protocols, including disconnecting the power supply before any intervention.
Frequently asked questions
- What type of dimming does this floodlight support? — It supports 1-10 V dimming control.
- Is the floodlight suitable for outdoor use? — Yes, it has an IP66 rating for outdoor environments.
- What is the power consumption of the driver? — The driver power is 456 W.
- Which light source technology is used? — It uses LUMILEDS 3030 LED modules.
- What is the expected operational life? — The product has a rated life of 80,000 hours.
Specialised technical lighting distribution in the United Kingdom. If you are looking to buy Professional Stadium 900W 1-10V Dimmable LED Floodlight for a technical or professional project, the Stadium Profesional series identifies the range to which this reference belongs. Estimated shipping time is 15 to 20 days (subject to stock availability). CE, RoHS, and UKCA certifications are included. Check price and availability.
