Wattage 300 W
Voltage Range 220-240V AC
Lumen 45000 lm
Type Of Dimming 1-10 V
Wattage
300 W
Voltage Range
220-240V AC
Lumen
45000 lm
Type Of Dimming
1-10 V
Power Factor
0.95
IP Rating
IP66
Battery Operated
No
Dimensions
134 mm x 297 mm x 483 mm
Width
297 mm
Height
134 mm
IK Protection
IK08
Luminous Efficiency
150 lm/W

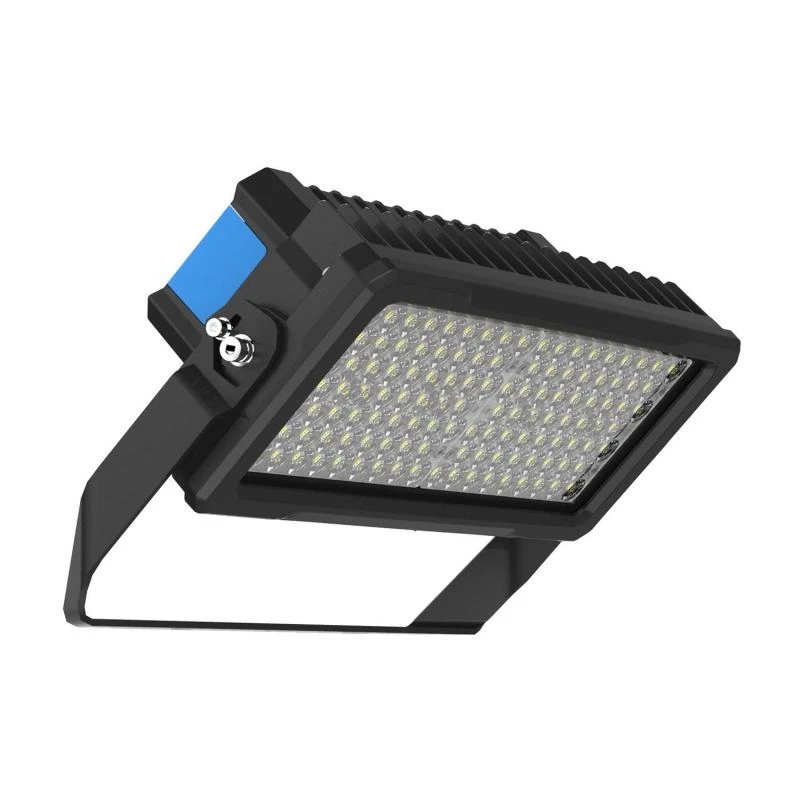

Professional Stadium 300W 1-10V Dimmable LED Floodlight INVENTRONICS 170lm/W IP66 LUMILEDS
Ref. Ledkia: 115707
(2)5 out of 5 stars
Colour Temperature Daylight 5000K
Optic 30º
In Stock, delivery in 15-20 days
£314.99
VAT included
In Stock, delivery in 15-20 days
Includes Driver
Modular Product (Requires Assembly)
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
24h Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £49.99 (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Dimensions134 mm x 297 mm x 483 mm
- Weight6.3 kg
- Cable Length60 cm
Downloads
PDF Datasheet 115707_236481 EN
Installation Manual
DoC_115707_236481
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS 3030
- Nominal Voltage100 V - 277 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Overvoltage Protection10 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Type Of Dimming1-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage300 W
Mechanical Features
- Ambient Working Temperature-30 °C~+45 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK08Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationSurface
- Installation of the bracketWall with U-bracket, Pole with U-bracket, On-wall base with U-bracket
- IP RatingIP66The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor, Indoor
- Modular Product (Requires Assembly)Yes
- Optic30ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee7 years
- Product SeriesStadium PRO-I
LED Features
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature5000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours80.000 HorasEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- LED Performance170 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourDaylight
- Lumen45000 lm
- Luminous Efficiency150 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Power Factor0.95
- Standard colour deviation (MacAdam)SDCM ≤ 5
Materials and Finishes
- ColourBlack
- Fitting MaterialGlass, Aluminium, PC, Steel
- IncludesDriver
Driver Information
- Driver BrandINVENTRONICS
- Driver Intensity7600 mA
- Driver Power456 W
- Driver Tension21 V-60 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- WifiNo
Description
The Professional Stadium 300W LED Floodlight features 1-10V dimming and a luminous efficiency of 150 lm/W, designed for versatile indoor and outdoor applications with a robust IP66 rating and an IK08 impact protection.
General information about Professional Stadium 300W 1-10V Dimmable LED Floodlight INVENTRONICS 170lm/W IP66 LUMILEDS
This 300W LED floodlight is part of the Stadium Profesional series, offering a modular design suitable for professional sports lighting. Equipped with LUMILEDS 3030 light sources and an INVENTRONICS driver, it delivers a luminous flux of 45,000 lumens with a colour rendering index (CRI) of 80. The floodlight has a zero ULOR value, ensuring no upward light emission, and is protected against dust and water with an IP66 rating, as well as impact resistance classified as IK08. It includes overvoltage protection up to 10 kV and operates within an ambient temperature range of -30 °C to +45 °C.
Use and applications
This floodlight is indicated for indoor and outdoor use, particularly in environments such as sports facilities, industrial areas, logistics warehouses, and public administration spaces. It is suitable for illuminating access points, façades, gardens, yards, perimeter walls, and internal roads, making it versatile for different sectors including construction, energy stations, residential communities, and transport and mobility hubs.
Key benefits
- High luminous efficiency: Provides 150 lm/W, optimising lighting performance with LUMILEDS technology.
- Advanced dimming control: Features 1-10 V dimming for precise light level adjustment.
- Robust protection: Rated IP66 and IK08, ensuring resistance to dust, water, and impacts.
- Zero light pollution: ULOR of 0% prevents upward light emission, suitable for outdoor use.
- Reliable driver: Equipped with an INVENTRONICS driver supporting a voltage range of 220-240V AC.
Highlighted specifications
Power: 300 W; Dimensions: 134 mm x 297 mm x 483 mm; Driver power: 456 W; Life expectancy: 80,000 hours.
Installation and maintenance
Designed for surface mounting, installation can be performed on walls, poles, or on-wall bases using a U-bracket. The floodlight includes a modular assembly system and requires connection to a compatible driver. Disconnect the power supply before any installation or maintenance task. Maintenance should follow documented procedures for driver and optical component checks.
Frequently asked questions
- What type of dimming does this floodlight support? — It features 1-10 V dimming for adjustable light output.
- What is the protection rating of the floodlight? — It has an IP66 rating for dust and water resistance.
- Is the floodlight suitable for outdoor use? — Yes, it is designed for both indoor and outdoor environments.
- What is the expected lifetime of the product? — The LED module has a life expectancy of 80,000 hours.
- Does the floodlight include overvoltage protection? — Yes, it includes protection up to 10 kV.
Specialised distribution of technical lighting in the United Kingdom. If you are looking to buy Professional Stadium 300W 1-10V Dimmable LED Floodlight for a technical or professional project, this reference meets the indicated specifications for its application. Shipping estimated in 15 to 20 days (subject to stock availability). CE, RoHS, and UKCA certifications are included. Check price and availability.
