Wattage 600 W
Voltage Range 220-240V AC
Lumen 90000 lm
Type Of Dimming 0-10 V
Wattage
600 W
Voltage Range
220-240V AC
Lumen
90000 lm
Type Of Dimming
0-10 V
Power Factor
0.98
IP Rating
IP66
Battery Operated
No
Dimensions
447 mm x 196 mm x 353 mm
Width
196 mm
Height
447 mm
IK Protection
IK08
Luminous Efficiency
150 lm/W

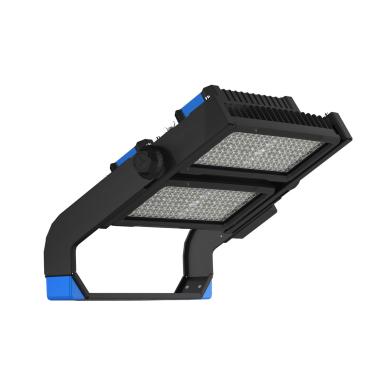

Stadium 600W 0-10V Dimmable LIFUD LED Floodlight 160lm/W IP66
Ref. Ledkia: 110478
Colour Temperature Daylight 5000K
Optic 60º
In Stock, delivery in 16-21 days
Premium range
£630.99Before £510.99
£468.99
VAT included
In Stock, delivery in 16-21 days
Modular Product (Requires Assembly)
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
24h Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £49.99 (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Dimensions447 mm x 196 mm x 353 mm
- Cable Length60 mm
- Weight8.25 kg
Downloads
PDF Datasheet 110478_225303 EN
Stadium LIFUD Installation Manual
DoC_110478_225303
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceSMD5050
- Overvoltage Protection6 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Type Of Dimming0-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage600 W
Mechanical Features
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK08Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationSurface
- Installation of the bracketWall with U-bracket, On-wall base with U-bracket, Ceiling with U-bracket
- IP RatingIP66The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor, Indoor
- Modular Product (Requires Assembly)Yes
- Optic60ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
- Special Installation EnvironmentHigh ambient temperature
- Working Temperature-20 °C~+45 °CInternal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesStadium PRO-I
LED Features
- Colour Rendering Index70Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature5000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours60.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- LED Performance160 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourDaylight
- Lumen90000 lm
- Luminous Efficiency150 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Power Factor0.98
- Standard colour deviation (MacAdam)SDCM ≤ 5
Materials and Finishes
- ColourBlack
- Fitting MaterialPC, Aluminium
Driver Information
- Driver BrandLIFUD
- Driver Intensity0.9 A
- Driver Power180 W
- Driver Tension90 V - 305 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- WifiNo
Description
The Stadium 600W 0-10V Dimmable LIFUD LED Floodlight offers professional-grade illumination with a high luminous efficiency of 150 lm/W and an IP66 protection rating, suitable for demanding environments.
General information about Stadium 600W 0-10V Dimmable LIFUD LED Floodlight 160lm/W IP66
This floodlight belongs to the Stadium Profesional series, designed for professional sports and industrial lighting applications. It features a modular design with a robust body made of aluminium and polycarbonate, ensuring protection against dust and water ingress with an IP66 rating and impact resistance of IK08. The product incorporates a LIFUD driver with 0-10 V dimming capability and operates within a voltage range of 220-240 V AC. It delivers a luminous flux of 90,000 lumens with a colour rendering index of 70 and a lifespan rated at 60,000 hours.
Use and applications
Suitable for both indoor and outdoor installations, this floodlight is ideal for public administration and industry and production sectors. It is recommended for illuminating access points, entrances, roundabouts, and façades, providing versatile lighting solutions for large-scale areas requiring high-intensity illumination.
Key benefits
- High luminous efficiency: Delivers 150 lm/W, ensuring strong illumination output for professional applications.
- Robust protection: IP66 and IK08 ratings provide resistance to dust, water, and mechanical impacts.
- Adjustable lighting level: Equipped with 0-10 V dimming for precise control over light intensity.
- Long service life: Rated for 60,000 hours, reducing the need for frequent replacements.
- Modular design: Facilitates maintenance and installation flexibility with surface mounting and multiple bracket options.
Highlighted specifications
Power: 600 W; Overvoltage protection: 6 Kilovolt; Driver power: 180 W; Dimensions: 447 mm x 196 mm x 353 mm.
Installation and maintenance
Installation is performed via surface mounting using a U-bracket, allowing fixation to walls, ceilings, or on-wall bases. The product requires assembly by the customer and should be installed following the provided instructions. The driver supports a voltage range of 90 V to 305 V, and disconnection of power is advised before any intervention. Maintenance procedures should adhere to the manufacturer's guidelines.
Frequently asked questions
- What type of dimming does the floodlight support? — It supports 0-10 V dimming for adjustable light output.
- What is the IP rating of this floodlight? — It has an IP66 rating for protection against dust and water jets.
- Is the driver brand specified? — Yes, it uses a LIFUD driver.
- Can this floodlight be used outdoors? — Yes, it is suitable for both indoor and outdoor use.
- What is the expected lifespan of the product? — The floodlight has a life expectancy of 60,000 hours.
Specialised distribution of technical lighting in United Kingdom. If you are looking to buy Stadium 600W 0-10V Dimmable LIFUD LED Floodlight 160lm/W IP66 for a technical or professional project, the Stadium Profesional series identifies the range to which this reference belongs. Shipping estimated in 15 to 20 days (subject to stock availability). Among the product data, CE, RoHS, and UKCA certifications are indicated as applicable. Check price and availability.
This product requires assembly by the customer. For correct handling and installation, please refer to the installation manual.
