Wattage 400 W
Voltage Range 220-240V AC
Lumen 60000 lm
Type Of Dimming 0-10 V
Wattage
400 W
Voltage Range
220-240V AC
Lumen
60000 lm
Type Of Dimming
0-10 V
Power Factor
0.98
IP Rating
IP66
Battery Operated
No
Dimensions
340 mm x 115 mm x 351 mm
Width
115 mm
Height
340 mm
IK Protection
IK08
Luminous Efficiency
150 lm/W

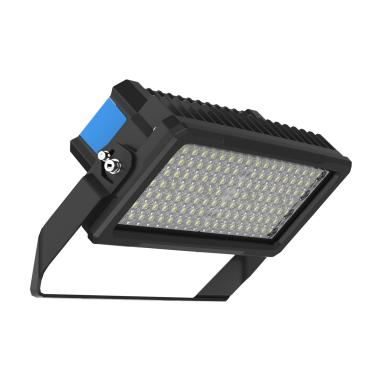

Stadium 400W 0-10V Dimmable LIFUD LED Floodlight 160lm/W IP66
Ref. Ledkia: 110463
Colour Temperature Daylight 5000K
Optic 60º
In Stock, delivery in 16-21 days
Premium range
£314.99Before £343.99
£312.99
VAT included
In Stock, delivery in 16-21 days
Modular Product (Requires Assembly)
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
24h Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £49.99 (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Dimensions340 mm x 115 mm x 351 mm
- Weight5.05 kg
- Cable Length60 mm
Downloads
PDF Datasheet 110463_225102 EN
Stadium LIFUD Installation Manual
DoC_110463_225102
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceSMD5050
- Overvoltage Protection6 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Type Of Dimming0-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage400 W
Mechanical Features
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK08Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationSurface
- Installation of the bracketWall with U-bracket, On-wall base with U-bracket, Ceiling with U-bracket
- IP RatingIP66The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor, Indoor
- Modular Product (Requires Assembly)Yes
- Optic60ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
- Special Installation EnvironmentHigh ambient temperature
- Working Temperature-20 °C~+45 °CInternal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesStadium PRO-I
LED Features
- Colour Rendering Index70Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature5000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours60.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- LED Performance160 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourDaylight
- Lumen60000 lm
- Luminous Efficiency150 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Power Factor0.98
- Standard colour deviation (MacAdam)SDCM ≤ 5
Materials and Finishes
- ColourBlack
- Fitting MaterialPC, Aluminium
Driver Information
- Driver BrandLIFUD
- Driver Intensity0.9 A
- Driver Power180 W
- Driver Tension90 V - 305 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- WifiNo
Description
The Stadium 400W 0-10V Dimmable LIFUD LED Floodlight is a professional-grade projector designed for versatile indoor and outdoor lighting applications, featuring a high IP66 protection rating and robust IK08 impact resistance.
General information about Stadium 400W 0-10V Dimmable LIFUD LED Floodlight 160lm/W IP66
This floodlight belongs to the Stadium Profesional series, a range of LED floodlights tailored for professional sports lighting with a modular design. It integrates a LIFUD driver with 0-10 V dimming capability and a luminous efficiency of 150 lm/W. The product features a metal and PC construction and delivers a luminous flux of 60,000 lumens at a power of 400 W. It offers protection against overvoltage up to 6 kV and operates within an ambient temperature range of -20 °C to +50 °C.
Use and applications
This floodlight is suitable for outdoor and indoor environments, especially in industrial and production sectors. It is ideal for illuminating access points such as entrances and roundabouts as well as building façades. Its robust design and high ingress protection make it appropriate for demanding lighting needs in professional and industrial settings.
Key benefits
- High luminous output: Provides 60,000 lumens ensuring powerful illumination for large areas.
- Adjustable lighting level: Equipped with a 0-10 V dimming system for precise light control.
- Durable construction: Built with aluminium and polycarbonate materials suitable for harsh environments.
- Reliable electrical performance: Incorporates a LIFUD driver with a power factor of 0.98 and overvoltage protection up to 6 kV.
- Wide installation options: Compatible with surface mounting and various bracket installations including wall and ceiling with U-bracket.
Highlighted specifications
Power: 400 W; Protection rating: IP66; Impact resistance: IK08; Voltage range: 220-240 V AC; Driver power: 180 W.
Installation and maintenance
Installation is designed for surface mounting with options for wall, ceiling, or on-wall base using U-brackets. The product requires assembly by the customer. Disconnect the power supply before any intervention. Maintenance should follow documented procedures as per the installation manual to ensure correct handling and longevity.
Frequently asked questions
- Is the floodlight dimmable? — Yes, it features 0-10 V dimming control.
- What is the ingress protection rating? — The floodlight has an IP66 rating suitable for outdoor use.
- What driver brand is used? — It includes a LIFUD driver.
- Can it be installed indoors? — Yes, it is suitable for both indoor and outdoor environments.
- What is the expected lifespan? — The product has a rated life of 60,000 hours.
Specialised distribution of technical lighting in United Kingdom. If you are looking to buy Stadium 400W 0-10V Dimmable LIFUD LED Floodlight 160lm/W IP66 for a technical or professional project, this reference gathers the indicated specifications for its application. Estimated shipping time is 15 to 20 days (subject to stock availability). The product holds CE, RoHS, and UKCA certifications. Check price and availability.
This product requires assembly by the customer. For correct handling and installation, please refer to the installation manual.
