This product is discontinued

Below you can find the substitute product or some equivalents.

If you have any queries, please call us on telephone 020 3739 1978.

Range Advanced
  • 7 W
    Wattage 7 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 700 lm
    Lumen 700 lm
  • Ø55 mm
    Cut Out Dimensions Ø55 mm
Image of Round 7W TRIAC Dimmable MINI LED Downlight Ø55mm Cut Out
    Image of Round 7W TRIAC Dimmable MINI LED Downlight Ø55mm Cut Out
    Image of Round 7W TRIAC Dimmable MINI LED Downlight Ø55mm Cut Out
    Image of Round 7W TRIAC Dimmable MINI LED Downlight Ø55mm Cut Out
    Image of Round 7W TRIAC Dimmable MINI LED Downlight Ø55mm Cut Out
1 / 4
  • 7 W

    Wattage

    7 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 700 lm

    Lumen

    700 lm

  • Ø55 mm

    Cut Out Dimensions

    Ø55 mm

  • 60 mm

    Diameter

    60 mm

  • TRIAC

    Type Of Dimming

    TRIAC

  • 0.9

    Power Factor

    0.9

  • IP44

    IP Rating

    IP44

  • No

    Battery Operated

    No

  • 80 mm x Ø60 mm

    Dimensions

    80 mm x Ø60 mm

  • 80 mm

    Height

    80 mm

  • IK05

    IK Protection

    IK05

Round 7W TRIAC Dimmable MINI LED Downlight Ø55mm Cut Out

Download technical datasheet

Ref. Ledkia: 105551

This product is equivalent to:

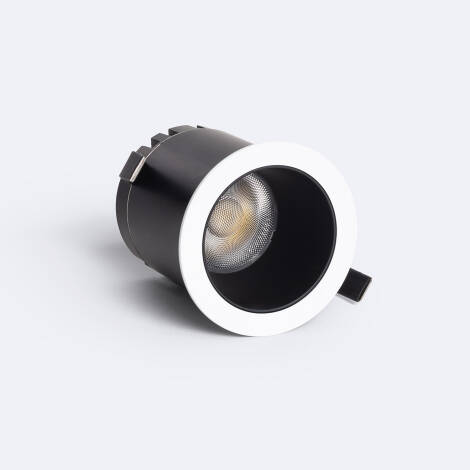

Jelly 7W MINI LED Downlight Ø 50 mm Cut Out

£13.49

Jelly 7W MINI LED Downlight Ø 50 mm Cut Out

In Stock, delivery in 15-20 days

  • Height 57 mm
  • Driver specifications Yes
  • Product card certificates
  • Product card certificates
  • Product card certificates
  • Product card certificates
Products with similar features:
  • Product Jelly 7W MINI LED Downlight Ø 50 mm Cut Out

    Jelly 7W MINI LED Downlight Ø 50 mm Cut Out

    In Stock, delivery in 15-20 days

    £13.49

Dimensions

  • Dimensions80 mm x Ø60 mm
  • Cut Out DimensionsØ55 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    DoC_105551_215138

Certificates and Stamps

CertificateCertificate

Technical Specifications

  • Electrical Features

    • Electrical Insulation ClassII
    • Frequency50-60 Hz
    • Light SourceCOB
    • Type Of DimmingTRIAC
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage7 W

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-30 °C~+45 °C
    • Ability to move or rotate the spotlight to direct the light as desired.
      DirectionalNo
    • Indicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
      Fire RatedNo
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK05
    • InstallationRecessed
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP44
    • LocationIndoor
    • ShapeCircular

  • LED Features

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle35º
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature2700K
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Light ColourWarm White
    • Lumen700 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency100 lm/W
    • Power Factor0.9

  • Product Information

    • CertificatesCE, RoHS
    • Guarantee3 years

  • Driver Information

    • Driver Intensity180 mA
    • Driver Power6 W
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension36 V
    • WifiNo

  • Materials and Finishes

    • ColourWhite
    • Fitting MaterialAluminium
    • IncludesDriver
Sales

Description

The 7W Round Mini Spotlight UGR11 with Ø55 mm Cut Out is a very versatile option when lighting the space in a practical, simple and effective way. With this choice you will be opting for a significant saving in electricity consumption.

Features of the 7W Round Mini Spotlight UGR11 with Ø55 mm Cut Out

This downlight incorporates a LED chip with a power of 7W and a luminosity of 700lm. The light emitted is spread at a concentrated angle of 35º. It has a UGR of less than 11 and a colour rendering index (CRI) of 80.

It is made of aluminium, a material that is highly resistant to external agents and with very good finishes. Its installation is very simple, it only requires a Ø55 mm hole in the surface where it is to be installed.

With the characteristics of this LED lighting product you will have in your hands a product with good performance. Ideal for use in interior spaces where it is not necessary to use a large amount of light. It is mainly used in transit areas such as hallways, corridors or stairways.
