This product is discontinued

Below you can find the substitute product or some equivalents.

If you have any queries, please call us on telephone 020 3739 1978.

  • 220-240V AC
    Voltage Range 220-240V AC
  • 2400 W
    Max Wattage 2400 W
  • IP20
    IP Rating IP20
  • 42.6 mm x 20 mm x 42.6 mm
    Dimensions 42.6 mm x 20 mm x 42.6 mm
Image of 2 Way Switch Smart WiFi Switch SONOFF Mini R2 10A
Wifi
    Image of 2 Way Switch Smart WiFi Switch SONOFF Mini R2 10A
    Image of 2 Way Switch Smart WiFi Switch SONOFF Mini R2 10A
    Image of 2 Way Switch Smart WiFi Switch SONOFF Mini R2 10A
    Image of 2 Way Switch Smart WiFi Switch SONOFF Mini R2 10A
    Image of 2 Way Switch Smart WiFi Switch SONOFF Mini R2 10A
    Image of 2 Way Switch Smart WiFi Switch SONOFF Mini R2 10A
1 / 6
  • 220-240V AC

    Voltage Range

    220-240V AC

  • 2400 W

    Max Wattage

    2400 W

  • IP20

    IP Rating

    IP20

  • 42.6 mm x 20 mm x 42.6 mm

    Dimensions

    42.6 mm x 20 mm x 42.6 mm

  • 20 mm

    Width

    20 mm

  • 42.6 mm

    Height

    42.6 mm

  • Wi-Fi

    Connectivity

    Wi-Fi

  • eWeLink

    App

    eWeLink

  • PC

    Fitting Material

    PC

  • SONOFF

    Brand

    SONOFF

  • 10 A

    Current Intensity

    10 A

SONOFF

2 Way Switch Smart WiFi Switch SONOFF Mini R2 10A

SONOFF
Download technical datasheet

Ref. Ledkia: 65835

Manuf. ref.: INTRRPT-WF-SNFF-MN-CNMTD

EAN 13: 8445044163984

This product is equivalent to:
-16%

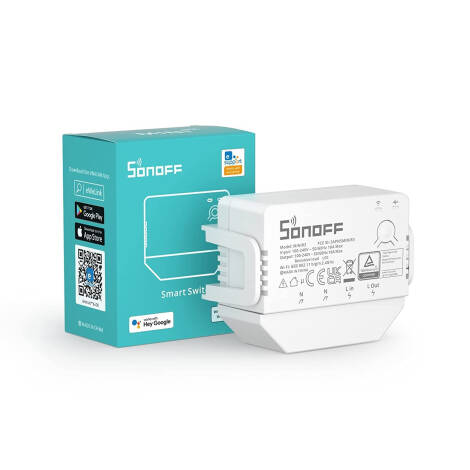

Wifi Switch SONOFF Mini R3 16A

Before £14.19

£11.99

SONOFF

Wifi Switch SONOFF Mini R3 16A

In Stock, delivery in 15-20 days

  • Height 46 mm
  • App eWeLink
  • Product card certificates
  • Product card certificates
  • Product card certificates
  • Product card certificates
Products with similar features:
  • Product Wifi Switch SONOFF Mini R3 16A

    Wifi Switch SONOFF Mini R3 16A

    In Stock, delivery in 15-20 days

    £11.99

Dimensions

  • Width20 mm
  • Depth42.6 mm
  • Height42.6 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Current Intensity10 A
    • Electrical Function1-Gang 2-Way Switch
    • Electrical Insulation ClassII
    • Frequency50-60 Hz
    • Max Wattage2400 W
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage100 V - 240 V
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC

  • Mechanical Features

    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • LocationIndoor
    • Number of Gangs2 Gangs

  • Driver Information

    • AppeWeLink
    • CompatibilityAmazon Alexa, Google Assistant
    • ConnectivityWi-Fi
    • WifiYes

  • Product Information

    • BrandSONOFF
    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years

  • Materials and Finishes

    • ColourWhite
    • Fitting MaterialPC

Description

The SONOFF Mini R2 10A WiFi Smart 2-way switch  is a module that contains a smart relay capable of switching on or off via WiFi and in the traditional way by means of switches or switches any light bulb, panel, downlight and even fans, radiators or other appliances that do not exceed 2,400W. All you need is for the switch to be synchronised and connected to your home's WiFi.

Features of the SONOFF Mini R2 10A WiFi Smart 2-way switch Smart
The switch has a small size allowing it to be placed in any universal flush-mounted box or false ceiling. Its installation is very simple, connect the 220V AC power supply to the input, the load to be controlled to the output and connect the existing switches or 2 Way Switches to S1 and S2 as if it were the load.

Pairing instructions with the eWeLink application:

1. Download the "eWeLink" app from APP Store for iOS or Google Play for Android.

2. Press the button for 5 seconds until the LED indicator flashes rapidly. Choose the appropriate pairing mode

3. The device will be automatically searched for and connected.

4. Enter the ID and password of the home Wi-Fi network.

Applications of the SONOFF Mini R2 10A 2 Way Switch Smart WiFi Switch

It is the ideal solution for automating, streamlining and controlling the luminaires or electrical receivers in your home, as it allows us to remotely switch on and off the luminaires or electrical appliances connected to it. Fully compatible with Amazon Alexa and Google Home. You will be able to create a group with the luminaires you have in a room and manage your devices more efficiently by switching them all on or off with a single touch or even by voice thanks to Amazon Alexa or Google Home devices.

The control of the device will be done via the eWeLink app. The APP is available for iOS and Android operating systems. It can be downloaded from the App Store and Google Play respectively.
