Voltage Range 220-240V AC
IP Rating IP20
Width 86 mm
Height 86 mm
Voltage Range
220-240V AC
IP Rating
IP20
Width
86 mm
Height
86 mm
Fitting Material
PC
Current Intensity
10 A

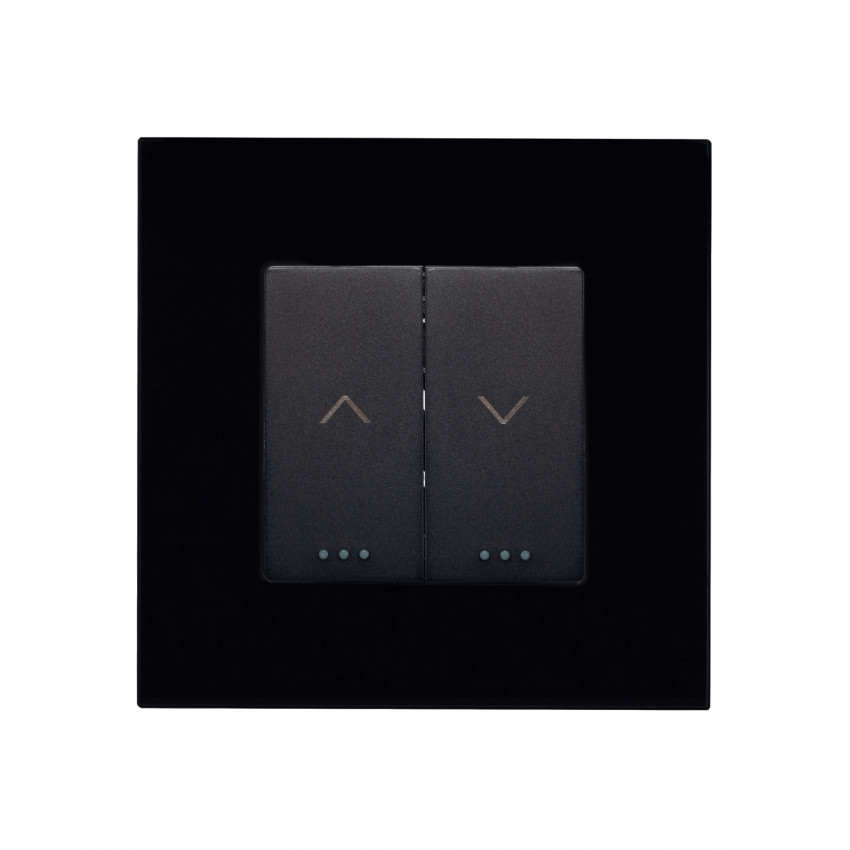

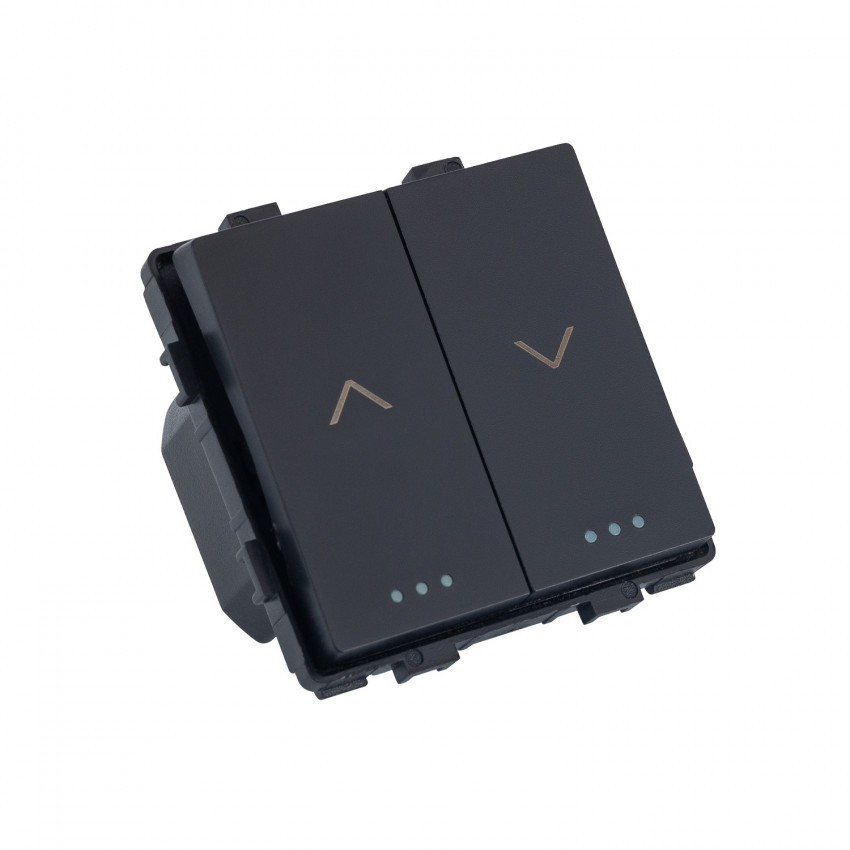

Modern Push Button Switch with Arrows for Automatic Blinds with Frame
Ref. Ledkia: 64488
Colour White
£2.69
VAT includedIn Stock, delivery in 24/48h
Buy before 2:30 pm we’ll ship it today.
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
24h Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £49.99 (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Height86 mm
- Width86 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Technical Specifications
Electrical Features
- Current Intensity10 A
- Electrical FunctionShutter
- Frequency50-60 Hz
- Nominal Voltage100 V - 240 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- Number of Gangs2 Gangs
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesModern
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Driver Information
- WifiNo
Description
The Automatic Blind Switch with PC Frame is an essential system for the comfort in the houses, with this type of lifting system you will not need a shutter belt as they automate the task and the comfort will increase to 100%.
Designed to withstand high ambient conditions thanks to the metal components with thermoplastic insulation.

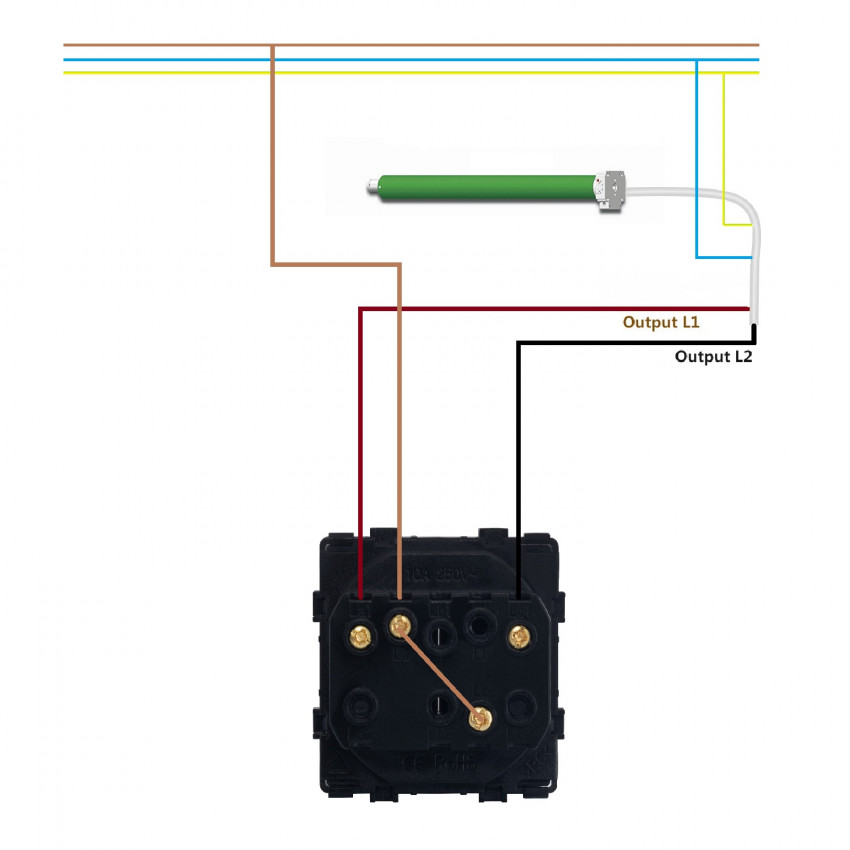

This button has no interlocking system so, as it is not equipped with this system, it requires a control device so that the two buttons are not operated simultaneously and the element is not damaged.
Enjoy the design and functionality perfectly combined with one of the most comfortable elements in the home.
