Wattage 9 W
Voltage Range 220-240V AC
Lumen 900 lm
Cut Out Dimensions Ø135 mm
Wattage
9 W
Voltage Range
220-240V AC
Lumen
900 lm
Cut Out Dimensions
Ø135 mm
Diameter
146 mm
Glare Factor
UGR <21
IP Rating
IP20
Battery Operated
No
Dimensions
20 mm x Ø146 mm
Height
20 mm
IK Protection
IK05
Luminous Efficiency
100 lm/W

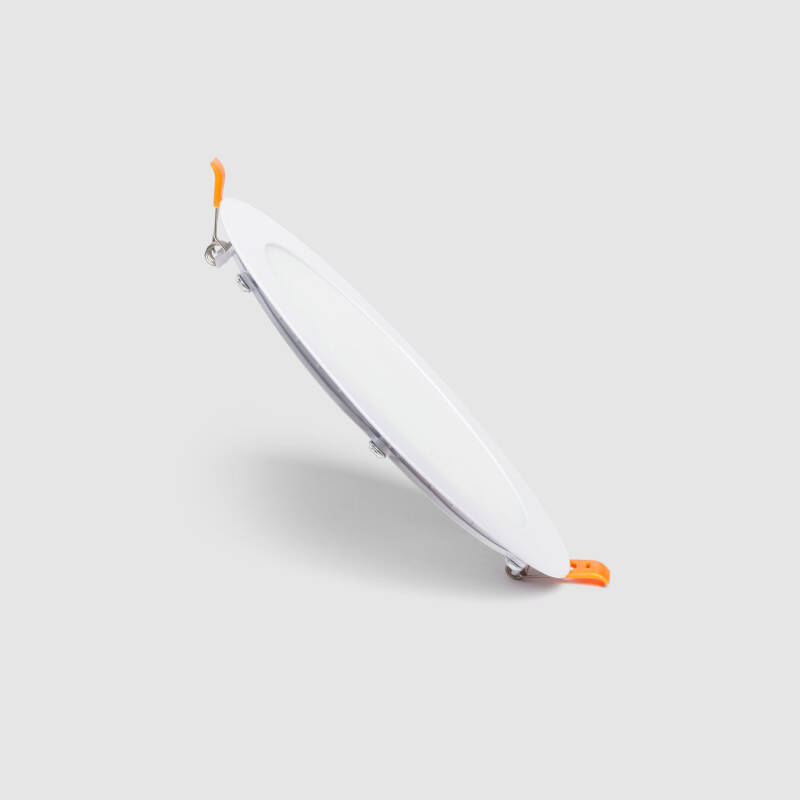

Round SuperSlim 9W LED Downlight Ø135mm Cut Out
Ref. Ledkia: 412
(29)5 out of 5 stars
Colour Temperature Warm White 3000K
£2.99
VAT included
In Stock, delivery in 24/48h
Includes Driver
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
24h Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £49.99 (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Dimensions20 mm x Ø146 mm
- Cut Out DimensionsØ135 mm
Downloads
PDF Datasheet 412_780 EN
DoC_412_780
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableNo
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceOSRAM SMD2835
- Nominal Voltage85 V - 265 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Remote ControlNo
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage9 W
Materials and Finishes
- ColourWhite
- Fitting MaterialAluminium
- IncludesDriver
- Type Of LensOpaal
LED Features
- Beam Angle120ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature3000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <21Low-glare products offer more comfortable lighting, suitable for extended use.
- Hours40.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourWarm White
- Lumen900 lm
- Luminous Efficiency100 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
Mechanical Features
- Ambient Working Temperature-30 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- DirectionalNoAbility to move or rotate the spotlight to direct the light as desired.
- Fire RatedNoIndicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
- IK ProtectionIK05Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- ShapeCircular
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesSuperSlim
Driver Information
- Driver Intensity200 mA
- Driver Power9 W
- Driver Tension25 V-42 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- WifiNo
Description
The Round SuperSlim 9W LED Downlight features a circular design with a slim profile and an output of 900 lumens, providing efficient and discreet ceiling lighting.
General information about Round SuperSlim 9W LED Downlight Ø135mm Cut Out
This LED downlight belongs to the SuperSlim series, known for ultra-thin panels and downlights designed to blend seamlessly into ceilings. It includes a 9 W driver and an opal lens that ensures soft light diffusion. The fitting is made of aluminium with a diameter cut-out of Ø135 mm, making it suitable for recessed installation in spaces with limited ceiling depth. Certified with CE, RoHS, and UKCA marks, it guarantees compliance with European and UK standards. Explore the downlight range to find matching products for your projects.
Use and applications
Designed for indoor use, this downlight is ideal for residential housing and office workstations. Its slim profile allows for installation in false ceilings where space is limited, providing clean and uniform illumination. The UGR <21 rating reduces glare, enhancing visual comfort in work environments and living areas. Its modern design suits contemporary interiors requiring efficient and unobtrusive lighting solutions.
Key benefits
- Efficient lighting with 100 lm/W luminous efficacy, optimising energy consumption without compromising brightness.
- Low glare with a UGR below 21, suitable for environments demanding visual comfort.
- Long lifespan of 40,000 hours, reducing maintenance and replacement frequency.
- Compact design with a slim 20 mm profile, ideal for installation in limited ceiling spaces.
- Certified safety with CE, RoHS, and UKCA marks ensuring regulatory compliance.
Highlighted specifications
Power: 9 W; Luminous flux: 900 lumens; Colour rendering index: 80; Beam angle: 120º; Cut-out dimensions: Ø135 mm; Material: Aluminium; Electrical insulation class: II.
Installation and maintenance
This downlight is designed for recessed installation in ceilings with a cut-out diameter of Ø135 mm. It includes a driver with a tension range of 25 V to 42 V and nominal voltage between 85 V and 265 V. Installation should be carried out by a qualified professional. Disconnect the power supply before any intervention to ensure safety. The driver must not be connected until the installation is fully completed. Maintenance is minimal due to the long lifespan of the LED source.
Frequently asked questions
- What is the cut-out size required for installation? — The downlight requires a Ø135 mm cut-out for recessed mounting.
- Is the downlight dimmable? — This model is not dimmable.
- What is the beam angle of the light? — It has a beam angle of 120º for wide light distribution.
- What is the colour rendering index (CRI)? — The CRI is 80, providing natural colour appearance.
- Does it include the driver? — Yes, the product includes the necessary driver for operation.
Specialized technical lighting distribution in United Kingdom. If you are looking to buy Round SuperSlim 9W LED Downlight Ø135mm Cut Out for an indoor lighting project, SuperSlim identifies the product range this reference belongs to. Shipping estimated in 15 to 20 days (subject to stock availability). The product information lists CE, RoHS, UKCA among its applicable markings or certifications. Check price and availability.
Installation notice: Before you begin, switch off the mains power supply. The driver must not be connected to the power supply until the installation is fully completed. Installation by a qualified installer is recommended.
