Wattage 18 W
Voltage Range 220-240V AC
Lumen 1350 lm
Cut Out Dimensions 75 mm x 155 mm
Wattage
18 W
Voltage Range
220-240V AC
Lumen
1350 lm
Cut Out Dimensions
75 mm x 155 mm
Type Of Dimming
TRIAC
Glare Factor
UGR <11
IP Rating
IP20
Battery Operated
No
Dimensions
75 mm x 93 mm x 173 mm
Width
93 mm
Height
75 mm
Luminous Efficiency
75 lm/W

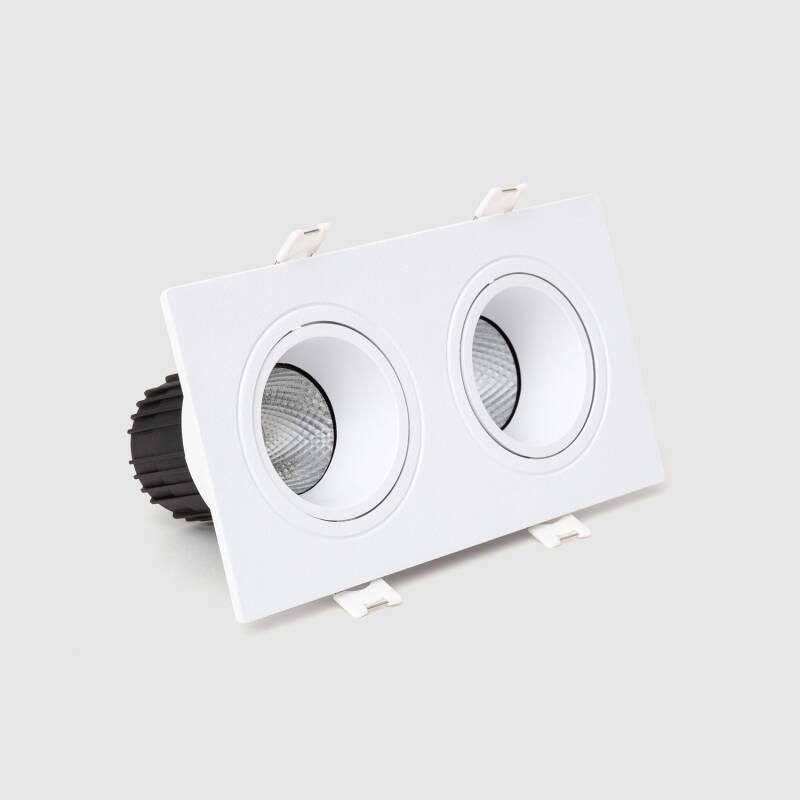

Square 18W Tilting Dimmable Downlight 75x155mm Cut Out
Ref. Ledkia: 174018
Colour Temperature Cool White 4000K
Colour White
In Stock, delivery in 15-20 days
Before £21.19
£17.99
VAT included
In Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
24h Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £49.99 (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Cut Out Dimensions75 mm x 155 mm
- Dimensions75 mm x 93 mm x 173 mm
Downloads
PDF Datasheet 174018_353308 EN
DoC_174018_353308
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Frequency50-60 Hz
- Light SourceBRIDGELUX
- No. Of Lights2
- Type Of DimmingTRIAC
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage18 W
LED Features
- Beam Angle38ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <11Low-glare products offer more comfortable lighting, suitable for extended use.
- Hours40.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourCool White
- Lumen1350 lm
- Luminous Efficiency75 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
Mechanical Features
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- ShapeSquare
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Driver Information
- WifiNo
Description
This square 18W tilting dimmable downlight features a recessed installation design with cut out dimensions of 75 mm x 155 mm, delivering 1350 lumens with an efficacy of 75 lm/W. It integrates BRIDGELUX LEDs and offers a selectable beam angle of 38º, ensuring precise directional lighting for indoor environments.
General information about Square 18W Tilting Dimmable Downlight 75x155mm Cut Out
This LED downlight combines a square shape with a durable PC material fitting, designed for recessed mounting. It provides a glare factor UGR <11, enhancing visual comfort in professional settings. The downlight operates at 220-240V AC and supports TRIAC dimming, allowing smooth light intensity control. With a lifespan of 40,000 hours and a 3-year guarantee, it is certified with CE, RoHS, and UKCA marks.
Use and applications
Ideal for indoor spaces such as offices, meeting rooms, reception areas, and workstations, this downlight suits customer service zones, classrooms, internal corridors, and shelving areas. Its tilting feature enables flexible orientation to highlight specific zones or tasks.
Key benefits
- High luminous efficiency of 75 lm/W for energy-effective lighting.
- Selectable beam angle of 38º for targeted illumination.
- Low glare with UGR <11 for enhanced visual comfort.
- TRIAC dimmable for adaptable ambience control.
- Long lifespan of 40,000 hours reduces maintenance frequency.
Highlighted specifications
Power: 18 W; Luminous flux: 1350 lm; Cut out dimensions: 75 mm x 155 mm; Voltage: 220-240V AC.
Installation and maintenance
Designed for recessed installation, the downlight requires a 75 mm x 155 mm cut out. Installation should follow the indicated system, ensuring secure mounting. Disconnect the power supply before any intervention to guarantee safety.
