Wattage 20 W
Voltage Range 220-240V AC
Power Factor 0.96
Glare Factor UGR <19
Wattage
20 W
Voltage Range
220-240V AC
Power Factor
0.96
Glare Factor
UGR <19
IP Rating
IP65
Battery Operated
No
Dimensions
29 mm x 122 mm x 124 mm
Width
122 mm
Height
29 mm
IK Protection
IK06
Luminous Efficiency
90 lm/W
Fitting Material
Aluminium, Glass
LEDVANCE

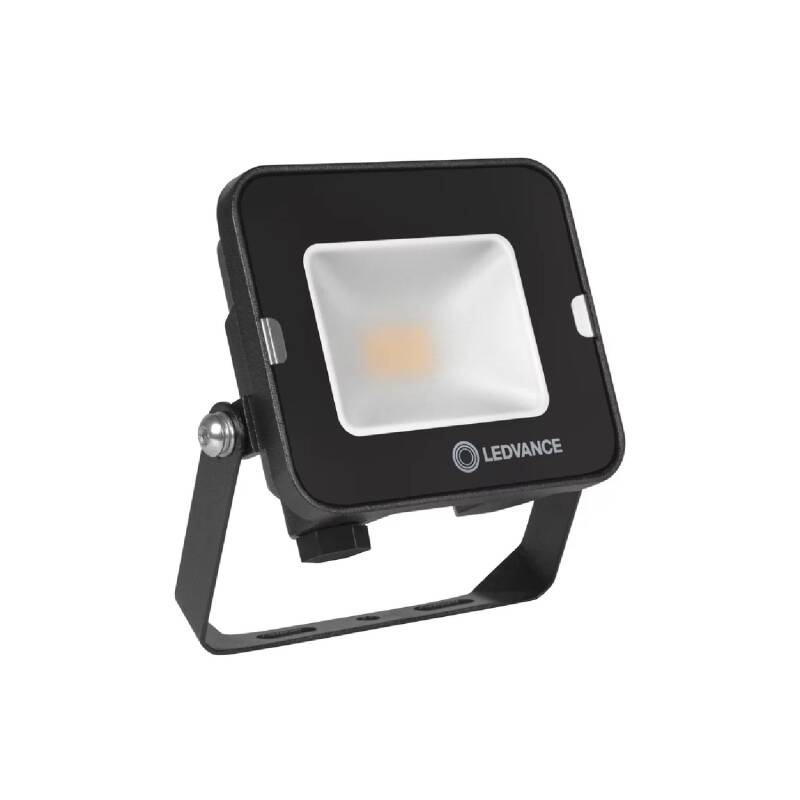

Compact 20W LED Floodlight 90lm/W IP65 LEDVANCE 4099854832147
Ref. Ledkia: 173966
Manuf. ref.: 4099854832147
EAN 13: 4099854832147
Colour Black
Colour Temperature Warm White 3000K
In Stock, delivery in 15-20 days
Before £14.17
£11.99
VAT includedIn Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
24h Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £49.99 (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Weight1 kg
- Dimensions29 mm x 122 mm x 124 mm
Downloads
PDF Datasheet 173966_353156 EN
DoC_173966_353156
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableNo
- Electrical Insulation ClassII
- Light SourceSMD
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage20 W
LED Features
- Colour Rendering Index90Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature3000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <19Low-glare products offer more comfortable lighting, suitable for extended use.
- Hours50.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourWarm White
- Luminous Efficiency90 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Power Factor0.96
Mechanical Features
- IK ProtectionIK06Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationIntegrated
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
Product Information
- BrandLedvance
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourBlack
- Fitting MaterialAluminium, Glass
Driver Information
- WifiNo
Description
The Compact 20W LED Floodlight by LEDVANCE offers a robust outdoor lighting solution with a luminous efficacy of 90 lm/W and a protection rating of IP65, suitable for demanding environments.
General information about Compact 20W LED Floodlight 90lm/W IP65 LEDVANCE 4099854832147
This LED floodlight features a 20 W power rating and incorporates an integrated installation system for streamlined setup. It is built with a die-cast aluminium body and glass fitting, ensuring appropriate material composition for outdoor use. The product includes a SMD light source and offers a colour rendering index (CRI) of 90 for accurate colour representation. Certified under CE, RoHS, and UKCA standards, it meets essential safety and environmental regulations. The floodlight also provides a glare factor of UGR <19 and an impact resistance of IK06, enhancing its suitability for public and commercial spaces. For further technical details, please refer to the product page.
Use and applications
This floodlight is designed for outdoor environments and is suitable for illuminating access points, façades, gardens, outdoor car parks, yards, perimeters, and internal roads. It is particularly indicated for sectors such as public administration, construction and building sites, energy facilities like petrol stations, logistics and warehouses, residential housing communities, and transport and mobility areas including stations and car parks.
Key benefits
- High luminous efficiency: Provides effective illumination with 90 lm/W, ensuring adequate brightness for outdoor applications.
- Robust protection: Rated IP65 for dust and water resistance, suitable for exposed environments.
- Integrated installation: Facilitates straightforward mounting and connection, reducing installation time.
- Glare control: Maintains a UGR below 19 to minimise discomfort and improve visual comfort in lit areas.
- Certified quality: Complies with CE, RoHS, and UKCA certifications, ensuring compliance with safety and environmental standards.
Highlighted specifications
Power factor: 0.96; Electrical insulation class: II; Dimensions: 29 mm x 122 mm x 124 mm.
Installation and maintenance
Installation is carried out using the integrated mounting system provided with the floodlight. The product is designed for fixed outdoor installation with appropriate orientation. Disconnect the power supply before any electrical intervention. Maintenance should follow standard procedures for outdoor LED luminaires, respecting the IP65 protection to avoid ingress of dust and water.
Frequently asked questions
- What type of regulation does this floodlight support? — No specific dimming or regulation system is indicated for this model.
- What is the expected lifespan of the floodlight? — The product has a rated life of 50,000 hours.
- Is the floodlight suitable for saline or coastal environments? — No specific information on saline resistance is provided.
- What voltage range does the floodlight operate on? — It operates within a voltage range of 220-240V AC.
- Does the floodlight include a driver? — Yes, the driver is integrated but no additional details are specified.
