Range Expert

Wattage 240 W
Voltage Range 220-240V AC
Lumen 38400 lm
Number of LEDs 176

1 / 2

Wattage
240 W
Voltage Range
220-240V AC
Lumen
38400 lm
Number of LEDs
176
Type Of Dimming
0-10 V
Power Factor
0.95
IP Rating
IP66
Battery Operated
No
Dimensions

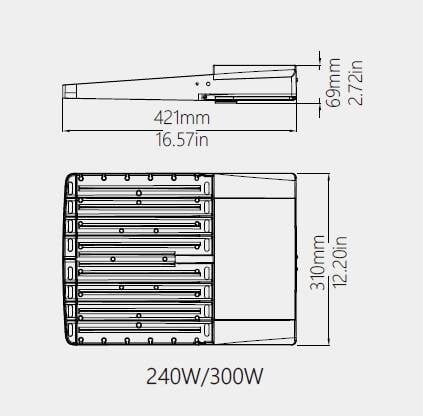

421 mm x 310 mm x 69 mm
Width
310 mm
Height
421 mm
Luminous Efficiency
160 lm/W

Wattage 240 W

240 W
300 W
400 W
500 W

Colour Temperature 5000K

Optic Type 3 S1 130x60

Light Colour Daylight

Pre-Order, estimated shipping from 14/08/2026

New

£281.99

VAT included

Product information sheet

Pre-Order, estimated shipping from 14/08/2026

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

Dimensions

Weight3.2 kg
Dimensions421 mm x 310 mm x 69 mm
Cable Length50 cm

Downloads

PDF Datasheet 178961_361767 EN
Manual_Driver_Inventronics_320w
DoC_178961_361767

Certificates and Stamps

Technical Specifications

Electrical Features
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS SMD5050
- Minimum and maximum voltage fluctuation that the product can withstand momentarily.
  Nominal Voltage100 V - 277 V
- Product's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
  Overvoltage Protection10 kV
- Type Of Dimming0-10 V
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
- Wattage240 W
Materials and Finishes
- ColourGrey
- Fitting MaterialDie Cast Aluminium
- IncludesBracket, Quick Connector, Driver
- RAL Colour9006
Mechanical Features
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-40 °C~+45 °C
- InstallationSurface
- Installation of the bracketWall with U-bracket, Pole with U-bracket, Lower fitting, On-wall base with U-bracket
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP66
- LocationOutdoor
- Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
  OpticType 3 S1 130x60
Product Information
- CertificatesCE, RoHS, CB, UL, UKCA
- Guarantee5 years
- Product SeriesPyros II
LED Features
- Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
  Colour Rendering Index70
- Defines the light tone, from warm white to cool white, measured in Kelvin (K).
  Colour Temperature5000K
- Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
  Hours100.000 hours
- Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
  LED Performance175 lm/W
- Light ColourDaylight
- Lumen38400 lm
- Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
  Luminous Efficiency160 lm/W
- Number of LEDs176
- Power Factor0.95
- Standard colour deviation (MacAdam)SDCM ≤ 2
Driver Information
- Auxiliary Cable0-10V
- Driver BrandINVENTRONICS
- Driver Intensity1600 mA
- Driver Power50 W-500 W
- Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
  Driver Tension100 V - 480 V
- Type Of Driver0-10V
- WifiNo

Description

The Pyros II Premium Two Module LED Floodlight is a specialised spotlight designed for professional outdoor use. It features a 0-10V dimmable driver by INVENTRONICS and delivers a luminous efficacy of 160lm/W, ensuring adaptable and efficient lighting control.

General information about Pyros II Premium Two Module LED Floodlight 0-10V Dimmable INVENTRONICS 160lm/W IP66

This floodlight incorporates a robust construction with a die cast aluminium housing and an IP66 rating that guarantees protection against dust and powerful water jets, suitable for demanding outdoor environments. It utilises LUMILEDS SMD5050 LEDs combined with a Type 3 S1 (130ºx60º) optical distribution for uniform light projection. The fixture integrates a 0-10V dimming control with a high-quality INVENTRONICS driver, offering stable and flexible management of light intensity. It also features overvoltage protection up to 10 Kilovolt and an electrical insulation class I for enhanced safety. The floodlight’s design minimises light pollution, making it suitable for industrial, urban, logistics, and sports lighting projects.

Use and applications

The Pyros II Premium floodlight is intended for outdoor installations where durability and precise lighting control are essential. Its IP66 protection and die cast aluminium structure make it ideal for urban lighting projects requiring resistance to harsh weather conditions. This product is well-suited for industrial sectors due to its overvoltage protection, ensuring operational safety in environments with electrical fluctuations.

Thanks to its 0-10V dimming capability and stable INVENTRONICS driver, it can be integrated into lighting systems demanding adaptable control and energy management. The floodlight supports installation on surfaces using various mounting options such as wall or pole with U-brackets, adapting to different outdoor zones. Its operational temperature range from -40 °C to +45 °C ensures reliable performance under diverse climatic conditions. This solution offers professional-grade control, robustness, and safety for demanding outdoor lighting projects.

Key benefits

Efficient lighting control thanks to the 0-10V dimming driver by INVENTRONICS.
High luminous efficacy with 160lm/W provided by LUMILEDS SMD5050 LEDs.
Robust protection against dust and water jets with IP66 enclosure.
Durable construction using die cast aluminium for long-lasting outdoor use.
Enhanced safety with electrical insulation class I and overvoltage protection.
Uniform light distribution through Type 3 S1 optics for precise projection.

Highlighted specifications

Power factor: 0.9; Colour rendering index (CRI): 70; Operating temperature range: -40 °C to +45 °C; Dimensions: 421 mm x 310 mm x 69 mm.

Installation and maintenance

The floodlight is designed for surface mounting and supports installation with wall or pole U-brackets as well as lower fitting and on-wall base options with U-brackets. Installation should follow the indicated mounting system to ensure correct positioning and safety. The unit includes a quick connector and a driver for simplified wiring and setup. Maintenance is facilitated by the robust housing and IP66 protection, which minimise ingress of dust and water. Disconnect the power supply before any intervention.
