Wattage 100 W
Voltage Range 220-240V AC
Lumen 16000 lm
Type Of Dimming 1-10 V
Wattage
100 W
Voltage Range
220-240V AC
Lumen
16000 lm
Type Of Dimming
1-10 V
Power Factor
0.96
IP Rating
IP66
Battery Operated
No
Dimensions
67 mm x 287 mm x 313 mm
Width
287 mm
Height
67 mm
IK Protection
IK08
Luminous Efficiency
160 lm/W

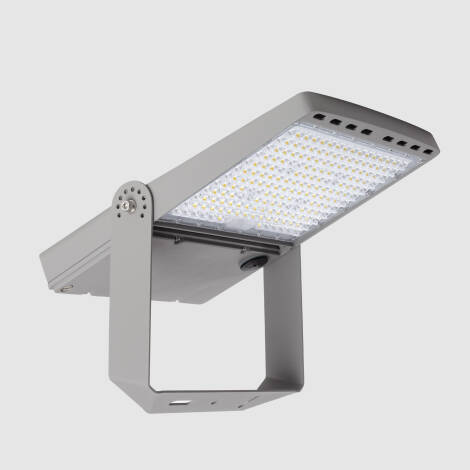

1-10V Dimmable 100W Premium LED Floodlight INVENTRONICS 160lm/W Pyros
Ref. Ledkia: 126186
Colour Temperature Cool White 5000K
Optic Type 3 S1 130x60
In Stock, delivery in 15-20 days
£195.99
VAT included
In Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
24h Free Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £ 49.99 (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
Dimensions
- Weight2.6 kg
- Width287 mm
- Depth313 mm
- Height67 mm
Downloads
Technical Data Sheet PDF
Instruction Manual
Certificates and Stamps
Technical Specifications
Technical Information
- Ambient Working Temperature-40 °C~+45 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- ColourGraphite Grey
- Colour Rendering Index70Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature5000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- DimmableYes
- Driver BrandINVENTRONICS
- Driver Tension18 V DC - 57 V DCVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Electrical Insulation ClassI
- Fitting MaterialAluminium
- Frequency50-60 Hz
- Hours100.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- IK ProtectionIK08Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- IP RatingIP66The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LED Performance175 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourCool White
- Lumen16000 lm
- Luminous Efficiency160 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Nominal Voltage100 V - 277 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- OpticType 3 S1 130x60Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
- Overvoltage Protection10 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Power Factor0.96
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage100 W
Product Information
- Light SourceLUMILEDS 5050
- LocationOutdoor
- Replaceable Light SourceYes
- Type Of Dimming1-10 V
- Type Of Driver1-10V dimmable
Product Data
- CertificatesCE, RoHS, CB, TÜV, DLC, ERP, UKCA, UL
- Guarantee7 years
- Product SeriesPyros
Description
The 100W Premium 160 lm/W LED Floodlight INVENTRONICS Dimmable 1–10V Pyros is a professional luminaire designed for high-end projects where efficiency, robustness, and uniform lighting are required. It is an ideal solution for padel courts, industrial buildings, façades, and large outdoor areas, thanks to its reliability and ability to withstand adverse environmental conditions.
Key features
This floodlight integrates LUMILEDS 5050 LED chips, owned by Philips, renowned for their performance and luminous stability, achieving an outstanding efficiency of 160 lm/W. The electronics are powered by an INVENTRONICS driver, an industry benchmark, dimmable via 1–10V and capable of operating with input voltages from 100–277V AC. This driver includes protection against surges up to 10 kV, as well as safeguards against short circuits, overloads, and overheating, ensuring reliability even in critical installations.
The design features front maintenance, providing direct access to the driver and internal components for quick and safe interventions. The aluminium body is treated with anti-saline corrosion paint, making it a luminaire particularly suitable for coastal areas or industrial environments with high exposure to humidity and aggressive agents. Its 304 stainless steel fasteners enhance mechanical resistance and extend the luminaire’s service life.
Optics and light distribution
The floodlight is equipped with a Type 3 S1 (130x60) lens, developed to achieve a wide and uniform rectangular distribution. This optic is perfect for sports areas, streets, car parks, or industrial estates, reducing light spill and improving the installation’s real efficiency. Its asymmetric design allows mounting in a horizontal position without performance losses. The floodlight features an ULOR below 0.1%, ensuring virtually zero light pollution, enabling compliance with efficiency and environmental protection regulations while preventing nuisance in nearby residential or sports areas.
Certifications and protection
The 100W LED Floodlight Pyros holds the TÜV certificate, attesting to its conformity with the most demanding European standards in quality and safety. With a protection rating of IP66, it is completely resistant to dust and powerful water jets, while its robust IK08 rating ensures impact resistance. These features make it ideal for intensive outdoor use, even under extreme weather conditions. For a completely safe electrical connection, the use of IP68 connectors is recommended, available in the accessories section, as the most critical point of installations is usually the cable junction.
Applications
The 100W Premium Pyros LED Floodlight is ideal for padel courts, sports areas, roads, car parks, industrial parks, façades, and large outdoor spaces. In addition, thanks to the mounting brackets available in accessories, it can be adapted into a luminaire suitable for street lighting, further expanding its possible uses.
If you need a lighting system that is efficient, durable, and equipped with cutting-edge technology, the 100W Pyros LED Floodlight is the perfect choice for high-level industrial, sports, or urban projects.
