Voltage Range 220-240V AC
Diameter 108 mm
IP Rating IP20
Dimensions 26.5 mm x Ø108 mm
Voltage Range
220-240V AC
Diameter
108 mm
IP Rating
IP20
Dimensions
26.5 mm x Ø108 mm
Height
26.5 mm
Fitting Material
PC

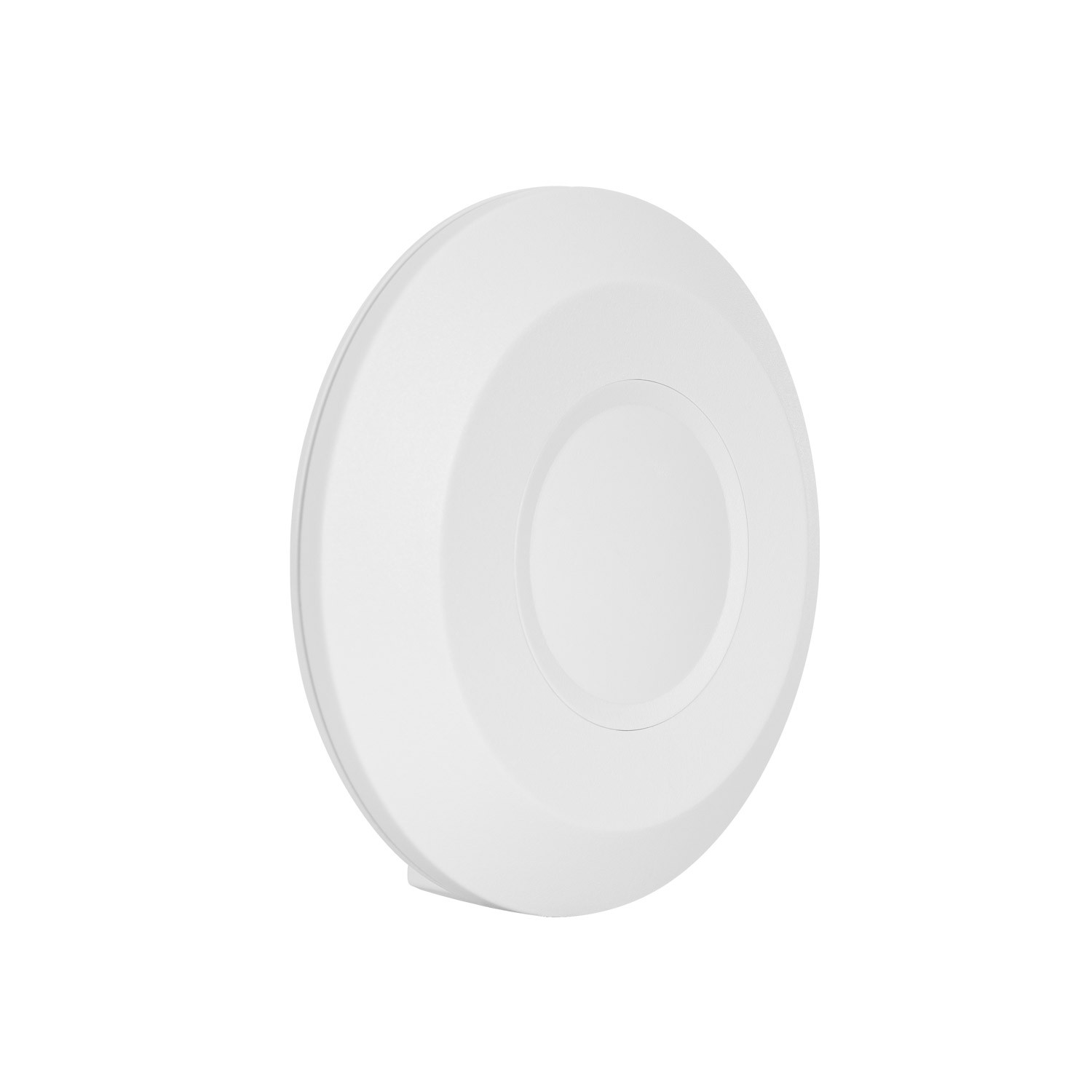

360º Microwave Radar Surface Motion Sensor
Ref. Ledkia: 78295
Colour White
£13.29
VAT includedIn Stock, delivery in 24/48h
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 Day Returns
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
24h Free Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £ 49.99 (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
See alternatives
Dimensions
- Diameter108 mm
- Height26.5 mm
- Dimensions26.5 mm x Ø108 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Technical Specifications
Technical Information
- Ambient Working Temperature-20 °C~+40 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- CertificatesRoHS, CE, UKCAQuality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
- ColourWhiteSpecification of the color of the product or its light (in the case of products such as lamps or light bulbs), which may affect the aesthetics and functionality of its use.
- Detection Range360 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- Fitting MaterialPCComposition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
- Frequency50-60 HzRange of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
- InstallationSurfaceInformation on how the product should be placed or mounted, such as instructions on whether it requires professional installation or is easy to do by the end user.
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoorSpecification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
- SensorRadarComponent that identifies changes in the environment, such as movement, light or sound, activating an automatic response, ideal for security or intelligent lighting systems.
- Sensor TypeRADAR Motion SensorDescription of the type of sensor included in the product, such as a motion, light, temperature or presence sensor, which can activate or modify the operation of the product according to specific conditions.
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Product Data
- Warranty3 yearsPeriod during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
Description
The 360º Microwave Radar Surface Motion Sensor is an energy-saving switch capable of detecting the presence of human movement in a 360º coverage angle, thanks to its integrated radar sensor. Get comfort, security, automatism, energy saving and practicality thanks to the 360º Microwave Radar Surface Motion Sensor.
Its operation is very simple: when it detects the presence within its detection field, it automatically identifies whether it is day or night, so you can control your luminaires in complete comfort. In addition, it can work both day and night, by adjusting the position of the LUX button. You can also program the time delay to control how long it will take to switch off the luminaire once it stops detecting presence.
It can control LED luminaires up to 1000W and traditional luminaires up to 2000W. Installation is recommended at a height of 1.5-4 m and its detection distance is approximately 8 metres at a 360º angle.
Minimum standby time: 10 seconds ±3 sec.
Maximum standby time: 15 minutes ±3 min.
