Voltage Range 220-240V AC
Max Wattage 1200 W
IP Rating IP65
Dimensions 115 mm x 135 mm x 74 mm
Voltage Range
220-240V AC
Max Wattage
1200 W
IP Rating
IP65
Dimensions
115 mm x 135 mm x 74 mm
Width
135 mm
Height
115 mm
Fitting Material
PC

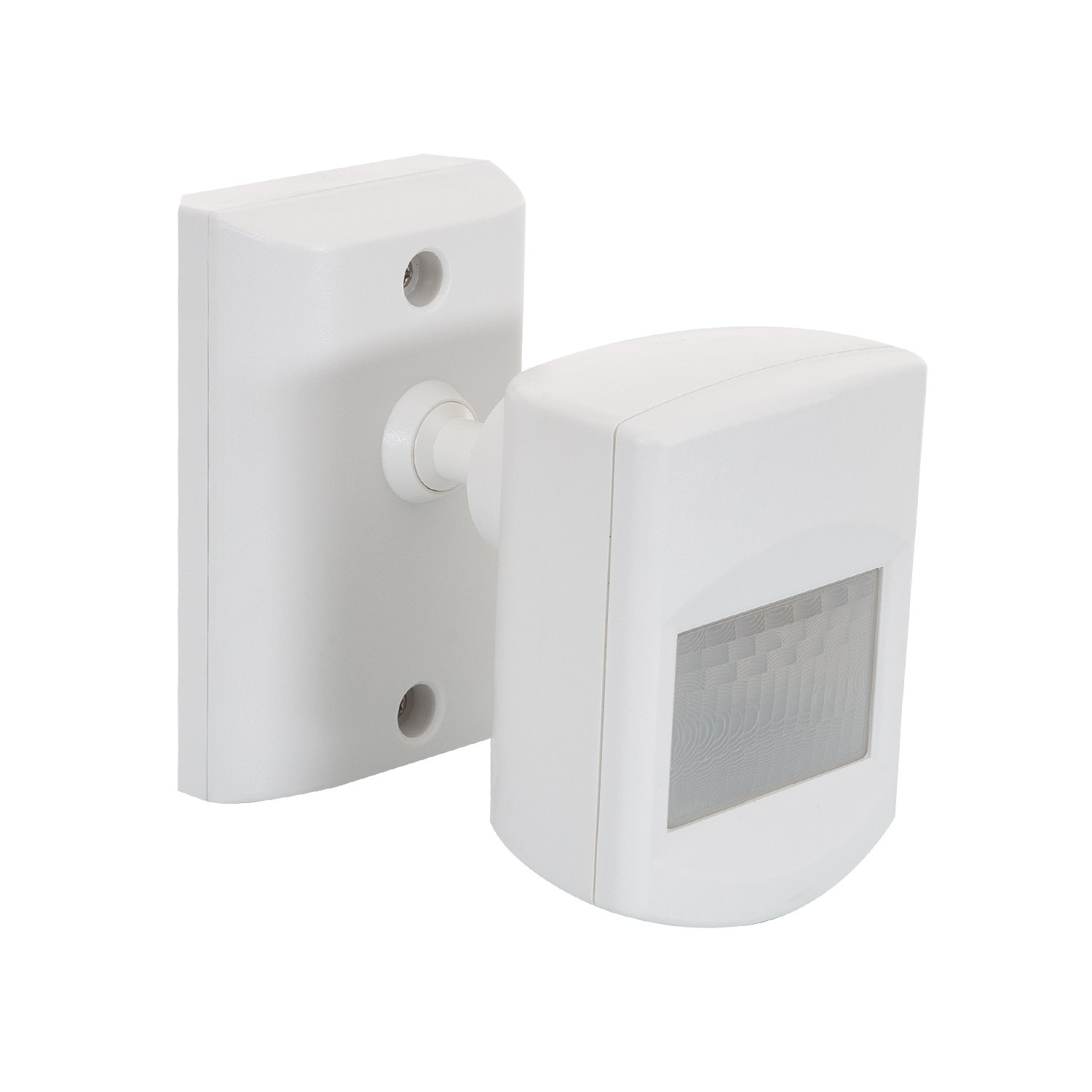

Motion Sensor PIR 120º Surface IP65
Ref. Ledkia: 73557
Colour White
Before £18.19
£9.39
VAT includedIn Stock, delivery in 24/48h
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 Day Returns
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
24h Free Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £ 49.99 (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
See alternatives
Dimensions
- Height115 mm
- Depth74 mm
- Dimensions115 mm x 135 mm x 74 mm
- Width135 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Technical Specifications
Technical Information
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- CertificatesRoHS, CE, UKCAQuality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
- ColourWhiteSpecification of the color of the product or its light (in the case of products such as lamps or light bulbs), which may affect the aesthetics and functionality of its use.
- Detection Range120 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- Electrical Insulation ClassIILevel of electrical protection of the product against shocks. Indicates whether it is suitable for different conditions of use, guaranteeing safety in the installation.
- Fitting MaterialPCComposition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
- Frequency50-60 HzRange of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
- InstallationSurfaceInformation on how the product should be placed or mounted, such as instructions on whether it requires professional installation or is easy to do by the end user.
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor, IndoorSpecification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
- Max Wattage1200 WThe maximum amount of power that the product can safely consume, indicated in watts. It is important to ensure proper installation and avoid overloading.
- SensorPIRComponent that identifies changes in the environment, such as movement, light or sound, activating an automatic response, ideal for security or intelligent lighting systems.
- Sensor TypePIRDescription of the type of sensor included in the product, such as a motion, light, temperature or presence sensor, which can activate or modify the operation of the product according to specific conditions.
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Product Data
- Warranty3 yearsPeriod during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
Description
The 120° Surface PIR Motion Sensor combines automation, convenience, security, energy saving and practical functions. It is easy to install and widely used in many applications due to its 120° coverage angle and wide detection range of 6-16 metres at a height of 1.8-2.5 metres.
It detects movement within the detection field due to temperature changes and acts immediately, both in daylight and in ambient light at night thanks to its infrared technology. In addition, it contains a function by which you can adjust the working status with different ambient light, so that it only works at night or during the day.
Easy to install, by means of a screw and easy to configure for its operation by connecting it to the current of your home at 220V. It is advisable to install it in a place where it has a wide opening angle and avoid pointing it towards reflective surfaces, heat sources or objects that can be moved by the wind.
Features of the 120º Surface PIR Motion Sensor
Detection Angle: 120°.
Detection Distance: 6-16 metres.
Minimum ON Time: 10 seconds ±3 seconds.
Maximum On Time: 15 minutes ±3 minutes.
Installation Height: 1.8 to 2.5 metres.
Detection Speed: 0.6-1.5 m/s.
Loads: 300W LED and 1200W Incandescent.
