Voltage Range 220-240V AC
Max Wattage 300 W
IP Rating IP65

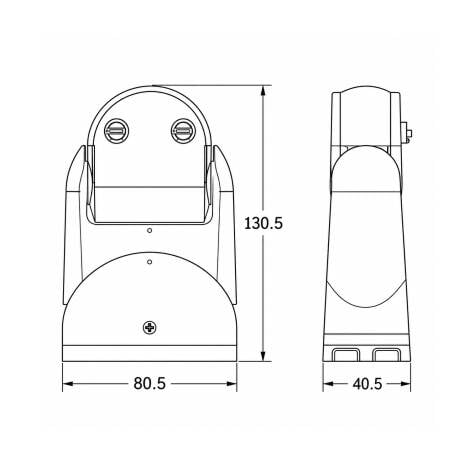

Dimensions 40 mm x 80 mm x 130 mm

1 / 5

Voltage Range
220-240V AC
Max Wattage
300 W
IP Rating
IP65
Dimensions
40 mm x 80 mm x 130 mm
Width
80 mm
Height
40 mm
Fitting Material
PC
Detention Range Metres
12 m

Colour White

Before £17.79

-19% (You save £3.30)

£14.49

VAT included

In Stock, delivery in 15-20 days

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

Dimensions

Depth130 mm
Height40 mm
Weight143 g
Width80 mm

Downloads

Technical Data Sheet PDF
Instruction Manual

Certificates and Stamps

Technical Specifications

Technical Information
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+40 °C
- Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
  CertificatesRoHS, CE, UKCA
- ColourWhite
- Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
  Detection Range180 °
- Maximum range at which a sensor can detect motion.
  Detention Range Metres12 m
- Fitting MaterialPC
- Frequency50-60 Hz
- InstallationSurface
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP65
- Max Wattage300 W
- Sensitivity10 Lux~2000 Lux
- SensorRadar
- Sensor TypeRadar Motion
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
Product Data
- Guarantee3 years
- Product SeriesSenise
Product Information
- LocationOutdoor, Indoor

Description

This innovative Outdoor Directional 360º Twilight RADAR Motion Sensor IP65 offers precise motion detection and ambient light evaluation for automating lighting in both indoor and outdoor spaces. Its directional design and direct ceiling installation make it a versatile tool to enhance energy efficiency and security in professional projects.

Equipped with high-frequency 5.8 GHz radar technology, this sensor provides a 180º detection angle and coverage up to 12 meters — even through non-metallic materials like thin partitions or glass. It outperforms traditional infrared sensors by reducing false alarms, delivering greater sensitivity, and providing more stable responses in complex environments.

It features an adjustable dusk sensor to operate only when ambient light is low, plus a rotary mode selector to tailor its behaviour to project needs:

DND (Do Not Disturb): Completely disables the sensor, with no response to motion or light; ideal for temporary system shutdown.
M (Automatic Mode): Activates the load only when motion is detected and ambient light is below the configured threshold; perfect for energy saving.
ON: Keeps the light always on regardless of conditions.
L / H: Adjusts detection sensitivity. “L” (Low) detects only nearby movement; “H” (High) maximises range for distant detection.
Walking person icon: Activates the load only upon motion detection, ignoring ambient light.

Applications and Benefits

Ideal for automatic control of LED lighting in professional settings such as offices, residential communities, hotels, storage rooms, warehouses, and common areas. Enhances security and reduces energy use by preventing unnecessary lighting, thus extending fixture lifespan. Supports LED loads up to 300W and allows configurable delay times (10 seconds to 15 minutes), sensitivity, and dusk threshold (10 to 2000 LUX), making it adaptable to any environment.

Its adjustable structure lets you fine-tune the detection angle based on space layout, ensuring optimal and precise installation. Operates directly on 220–240V AC and consumes less than 0.5W. Recommended for installers, architects, and designers seeking reliable, efficient, and easy-to-configure solutions for demanding projects.
