Voltage Range 220-240V AC
Max Wattage 300 W
Diameter 77 mm
IP Rating IP54
Voltage Range
220-240V AC
Max Wattage
300 W
Diameter
77 mm
IP Rating
IP54

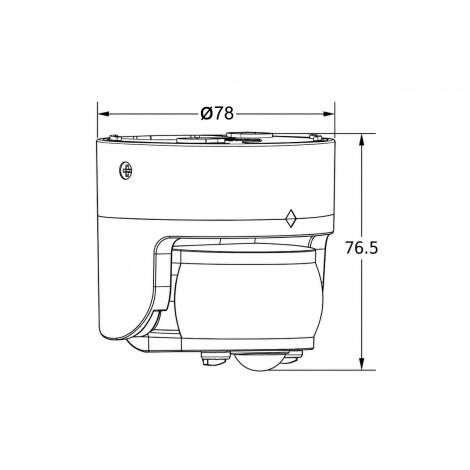

Dimensions
72 mm x Ø77 mm
Height
72 mm
Fitting Material
PC
Wall & Ceiling 360° PIR Motion Sensor IP54
Ref. Ledkia: 100262
Colour White
£12.49
VAT includedIn Stock, delivery in 24/48h
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
24h Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £49.99 (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Height72 mm
- Diameter77 mm
Downloads
Technical Data Sheet PDF
DoC_100262_206803
Certificates and Stamps
Technical Specifications
Mechanical Features
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- Detection distance range12 m
- Detection Range180 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationSurface
- IP RatingIP54The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- SensorPIR
- Sensor TypePIR
Electrical Features
- Frequency50-60 Hz
- Max Wattage300 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Driver Information
- WifiNo
Description
The Wall & Ceiling 360° PIR Motion Sensor IP54 is an electronic device designed for indoor and outdoor use. The IP54 Addressable PIR 360° IP54 Surface Motion Sensor is an electronic device designed for indoor and outdoor use. With a detection range of 180° and 360° thanks to its dual sensor and a maximum detection distance of 12 metres at 24℃.
The time delay is adjustable from 10 seconds to 15 minutes and operates 220-240V/AC at 50/60Hz. It is capable of supporting a maximum load of 1200W for incandescent lamps and 300W LED lamps and its sensitivity range is adjustable from less than 10 to 2000 LUX. In addition, it has an IP54 protection rating, which means it is suitable for indoor and outdoor use and is designed to be surface mounted.
