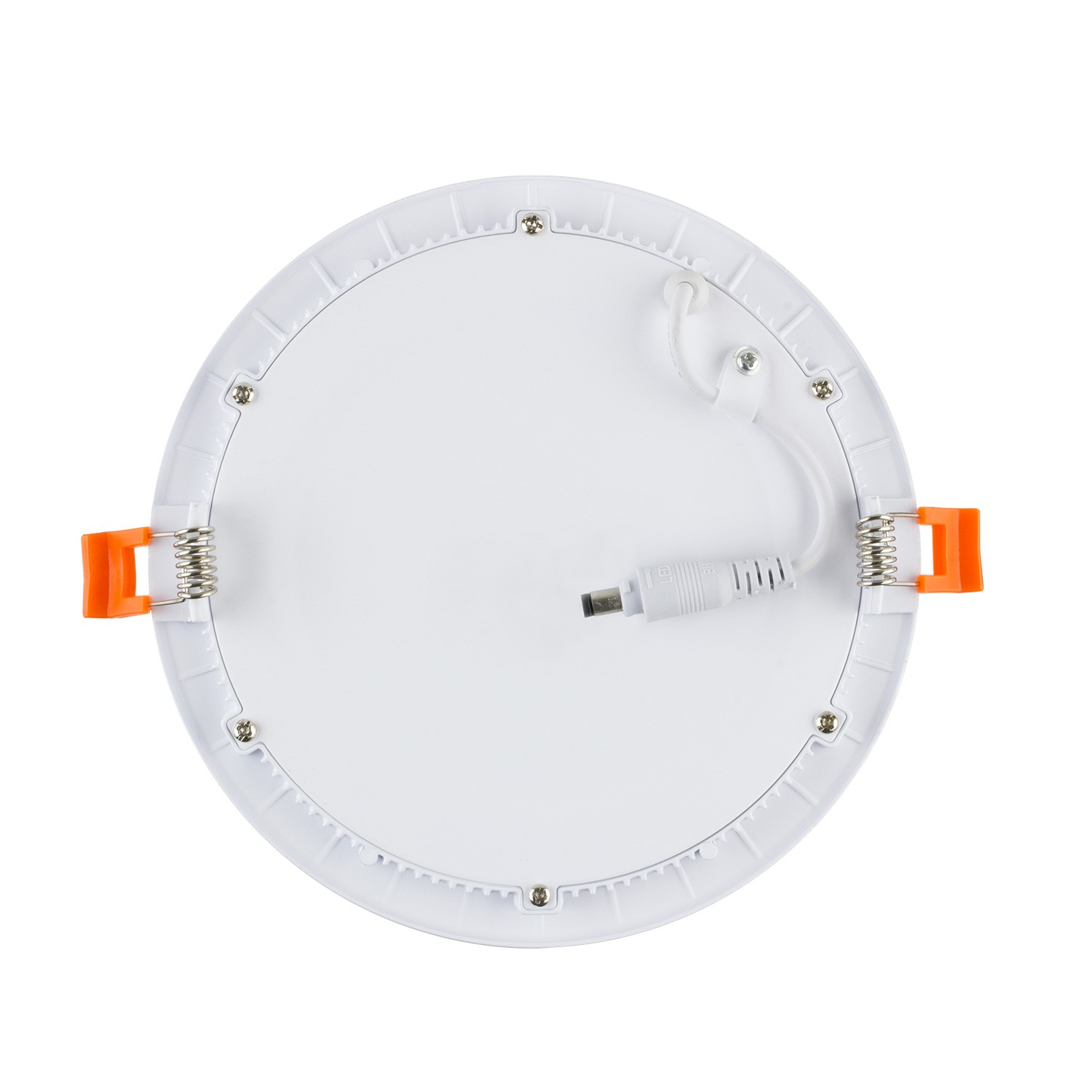

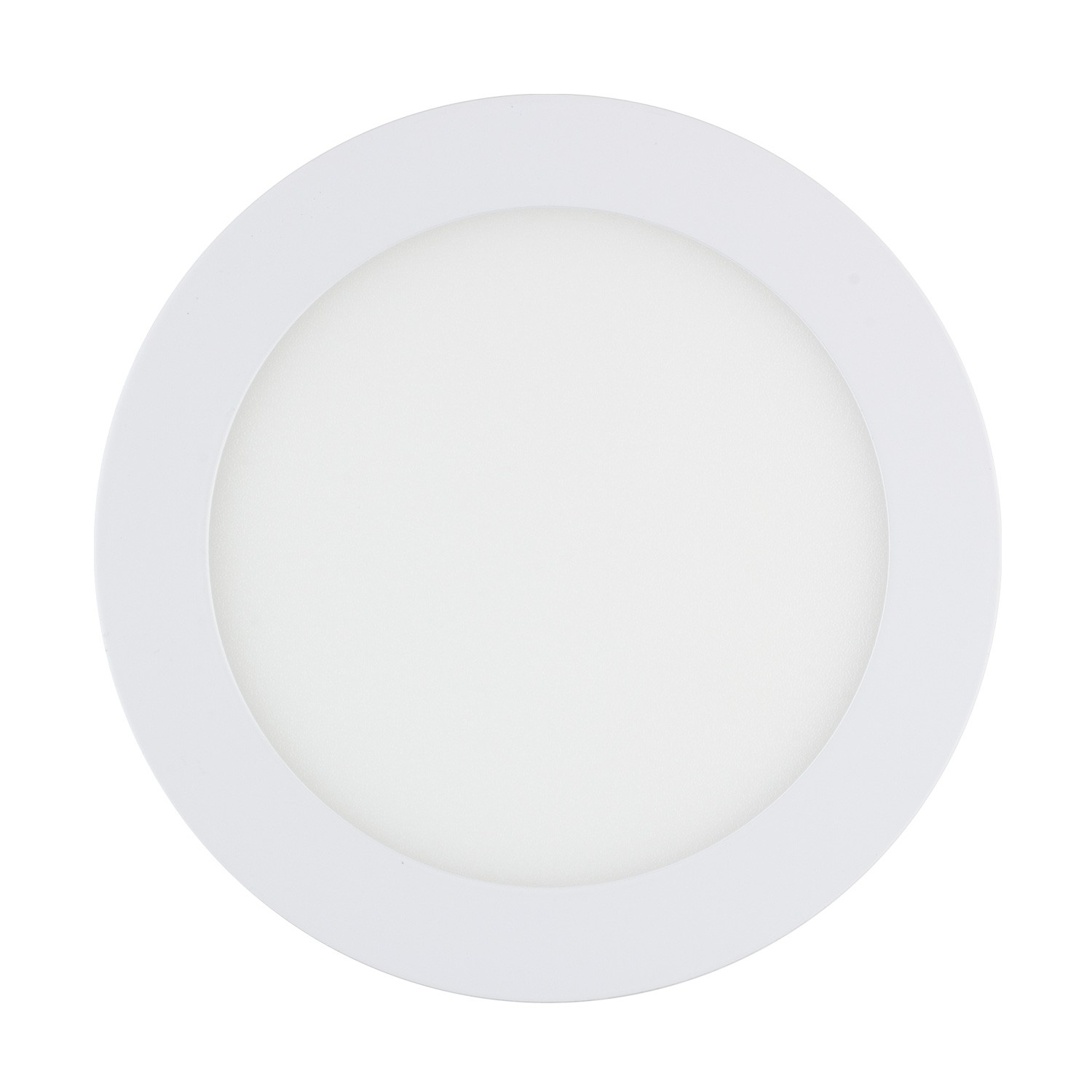

Round 9W UltraSlim LED Panel

Round 9W Ultraslim LED Panel Ø 135mm Cut-Out

Ref: 412 / PX-PBD-9R

Before £

£

Round 9W Ultraslim LED Panel Ø 135mm Cut-Out

Ref: 412 / PX-PBD-9R

  • 9 W
  • Ø135mm
  • No
  • 700 lm
  • 120º
  • IP20
  • 85-265V AC
  • 220-240V AC
  • 80
  • 50-60 Hz
  • Ø146x20 mm
  • 3 Ans

Description Round 9W Ultraslim LED Panel Ø 135mm Cut-Out

The Round 9W Ultraslim LED Panel is ideal as a general lighting element in any space, both commercial and domestic.

Characteristics of the Round 9W Ultraslim LED Panel

The SMD 2835 LED source has an output of 80 lm/W. It works directly at 220-240V AC without the need for connection to the installation's earth. It can withstand fluctuations in the input voltage between 85 and 265V AC. Its useful life is estimated at 30,000 hours.

Made of aluminium, the Round 9W Ultraslim LED Panel dissipates heat efficiently, despite being so compact. Thus allowing it to operate correctly in a range of ambient working temperatures from -22º to 45ºC.

With the range of LED downlights available at Ledkia, our online LED shop, you are opting for the most efficient, durable and ecological lighting technology on the market.

Characteristics Round 9W Ultraslim LED Panel Ø 135mm Cut-Out

Power: 9 W
Voltage: 220-240V AC
Multi-Voltage: 85-265V AC
Frequency: 50-60 Hz
Protection Class: II
Dimmable: No
Light Source: SMD 2835
CRI: 80
Lumens: 700 lm
LED Performance: 80 lm/W
Energy Efficiency 2021 (UE-2019/2015): A
Energy Efficiency 2023 (UE-2019/2015): F
Beam Angle: 120º
Lens Type: Frost
Use: Indoor
IP Protection: IP20
IK Protection: IK05
Material: Aluminium
Installation: Recessed
Size: Ø146x20 mm
Cut-Out Ø135mm
Frame: White
Working Temperature: -22ºC ~ +45ºC
Includes: Driver
Life Span: 30,000 Hours
Warranty: 3 Ans
Certifications: CE & RoHS
