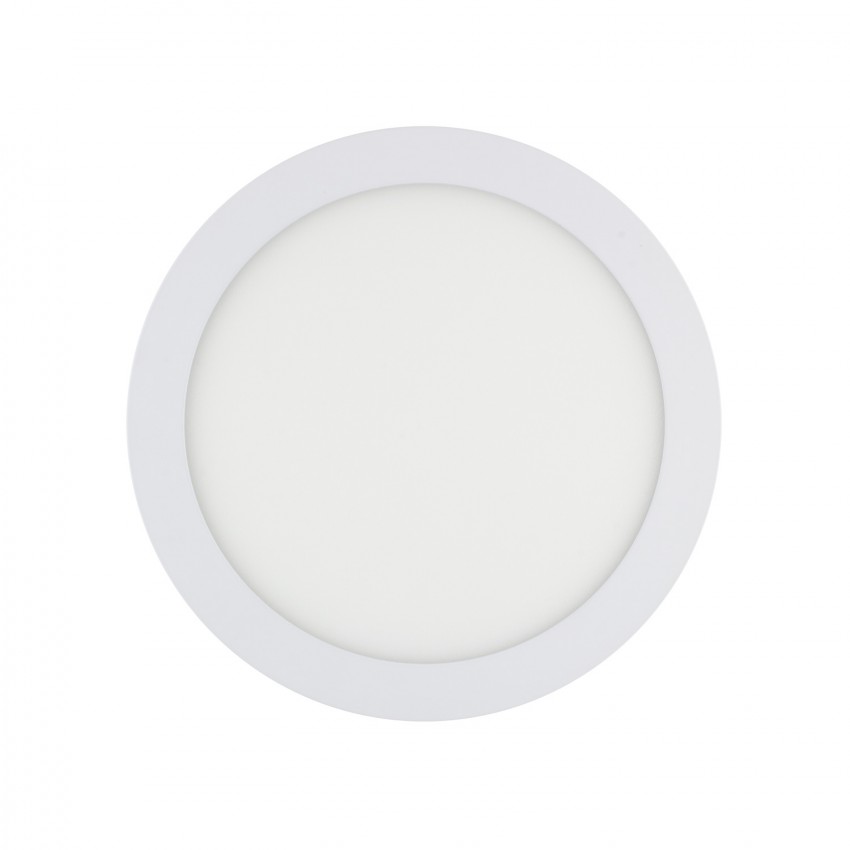

Round SuperSlim 18W LED Downlight Ø205mm Cut Out

Technical Specifications

• Technical Information

  • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
    Ambient Working Temperature-30 °C~+50 °C
  • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
    Beam Angle120º
  • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
    CertificatesRoHS, CE, UKCA
  • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
    Colour Rendering Index80
  • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
    Colour Temperature5000K

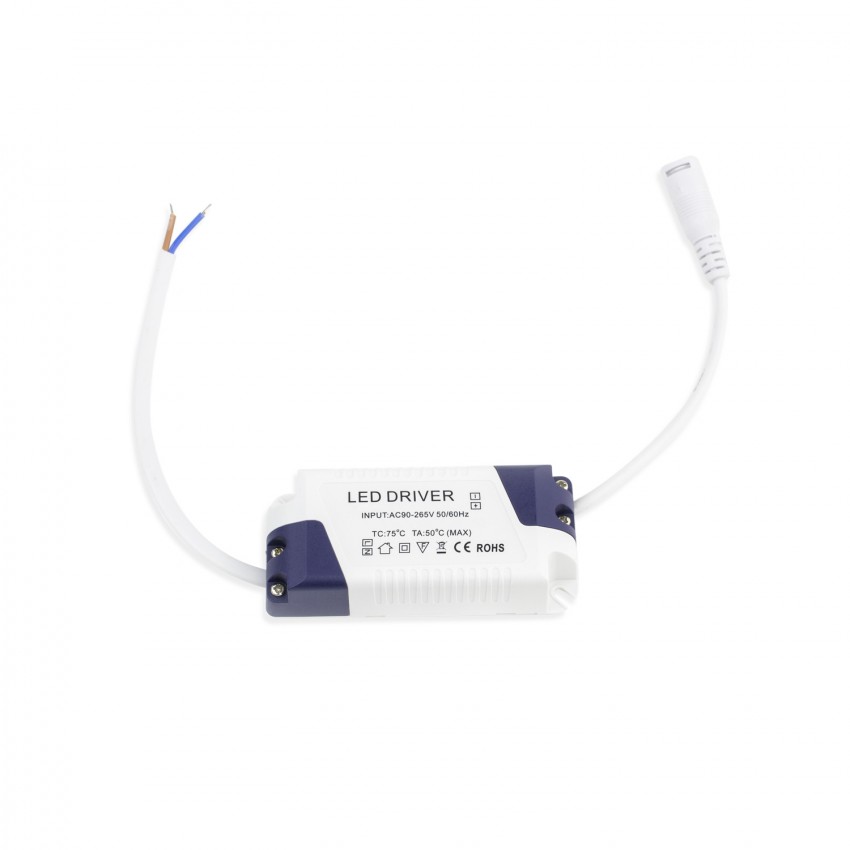

  • Level of electrical current that the driver is capable of handling to power components, such as LEDs, ensuring safe and efficient operation.
    Driver Intensity400 mA
  • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
    Driver Tension30 V-38 V
  • Level of electrical protection of the product against shocks. Indicates whether it is suitable for different conditions of use, guaranteeing safety in the installation.
    Electrical Insulation ClassII
  • Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
    Fitting MaterialAluminium, PC
  • Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
    Frequency50-60 Hz
  • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
    Hours40.000 hours
  • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
    IK ProtectionIK05
  • Information on how the product should be placed or mounted, such as instructions on whether it requires professional installation or is easy to do by the end user.

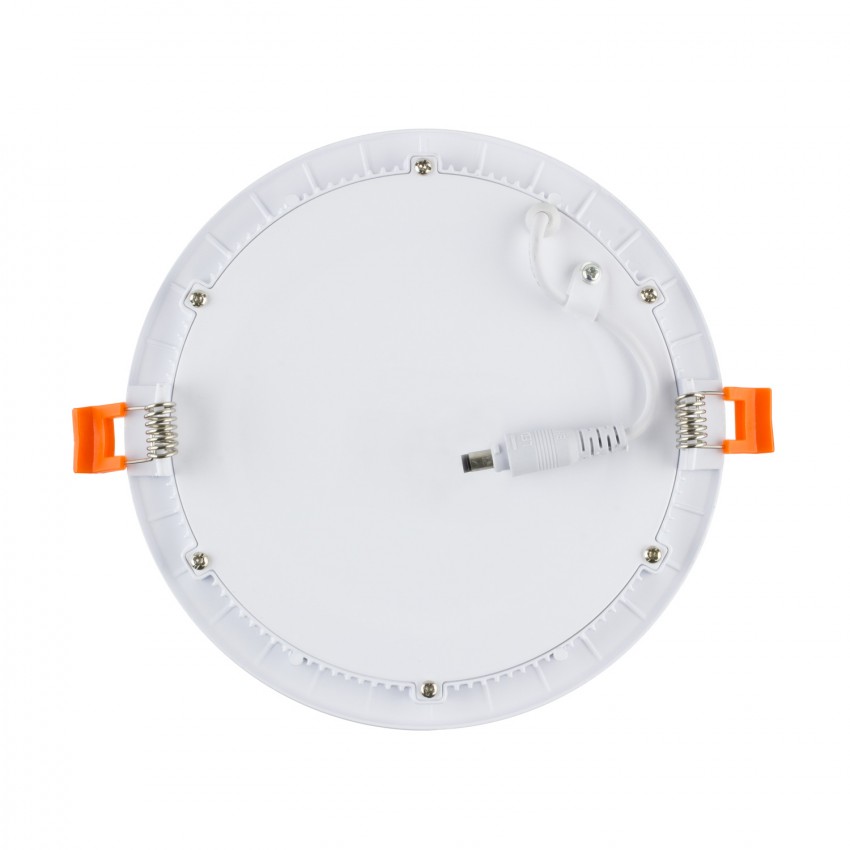

    InstallationRecessed
  • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
    IP RatingIP20
  • Characteristic that describes the tone of light emitted by the product, such as warm, neutral or cool. It is measured in degrees Kelvin (K) and affects the atmosphere and the proper use of space.
    Light ColourCool White
  • Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
    LocationIndoor
  • Total amount of light emitted by the product, measured in lumens (lm). A high value ensures well-lit spaces.
    Lumens1400 lm
  • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
    Luminous Efficiency78 lm/W
  • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
    Nominal Voltage170-265V AC
  • Physical configuration of the product, such as round, square, or elongated. It helps to integrate it into the aesthetics and design of the space where it will be installed.
    ShapeCircular
  • Voltage level required for the product to function correctly.
    Voltage Range220-240V AC
  • Indicates how much energy the light source consumes, measured in watts (W). In LED lighting, the power is much lower than in traditional sources, and is related to the light intensity (lumens).
    Wattage18 W

• Product Data

  • Number or name that identifies the series or product line to which an item belongs, generally indicating the style, characteristics or version of a range.
    Product SeriesSuperSlim
  • Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
    Warranty3 years

• Product Information

  • Element or component that emits light in the product, such as LEDs, incandescent or fluorescent bulbs. In LED systems, the light source is highly efficient and long-lasting.
    Light SourceOSRAM
  • Type of lens used in the product, such as diffuse, high transmission or focused lens, which determines the direction and dispersion of light.
    Type Of LensOpaal
