Range Advanced
  • 40 W
    Wattage 40 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 4000 lm
    Lumens 4000 lm
  • 0.9
    Power Factor 0.9
Image of 60x60cm 40W LED Panel 4000lm LIFUD
    Image of 60x60cm 40W LED Panel 4000lm LIFUD
    Image of 60x60cm 40W LED Panel 4000lm LIFUD
    Image of 60x60cm 40W LED Panel 4000lm LIFUD
    Image of 60x60cm 40W LED Panel 4000lm LIFUD
    Image of 60x60cm 40W LED Panel 4000lm LIFUD
    Image of 60x60cm 40W LED Panel 4000lm LIFUD
    Image of 60x60cm 40W LED Panel 4000lm LIFUD
    Image of 60x60cm 40W LED Panel 4000lm LIFUD
1 / 8
  • 40 W

    Wattage

    40 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 4000 lm

    Lumens

    4000 lm

  • 0.9

    Power Factor

    0.9

  • UGR 19

    Glare Factor

    UGR 19

  • IP20

    IP Rating

    IP20

  • 30 mm x 595 mm x 595 mm

    Dimensions

    30 mm x 595 mm x 595 mm

  • 595 mm

    Width

    595 mm

  • 30 mm

    Height

    30 mm

  • IK05

    IK Protection

    IK05

  • 100 lm/W

    Luminous Efficiency

    100 lm/W

  • Aluminium, PC

    Fitting Material

    Aluminium, PC

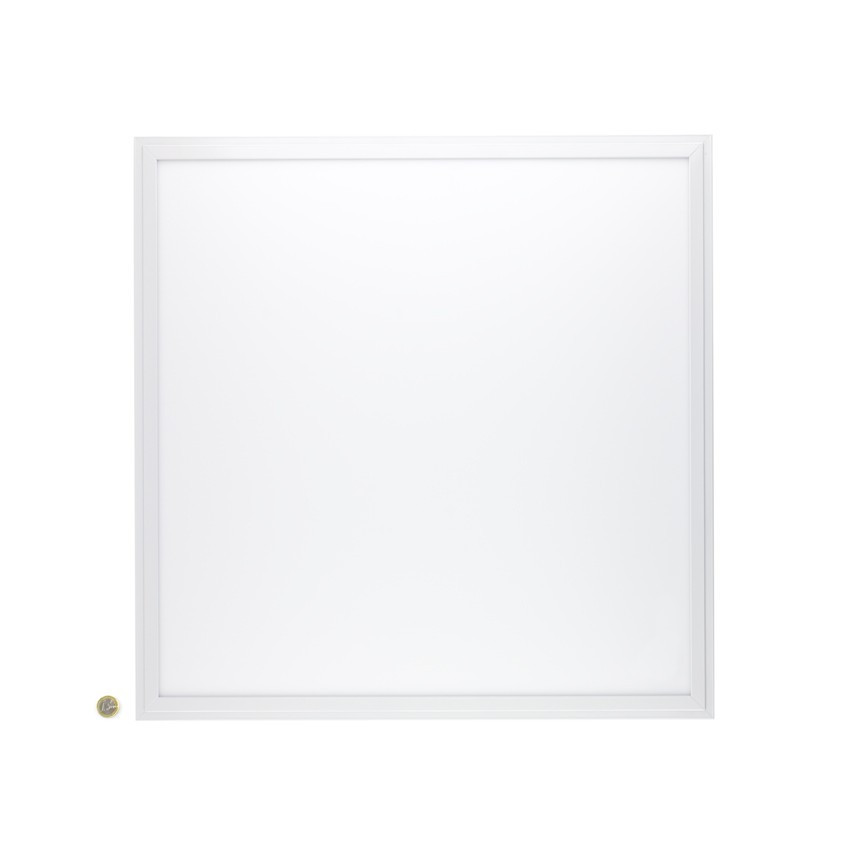

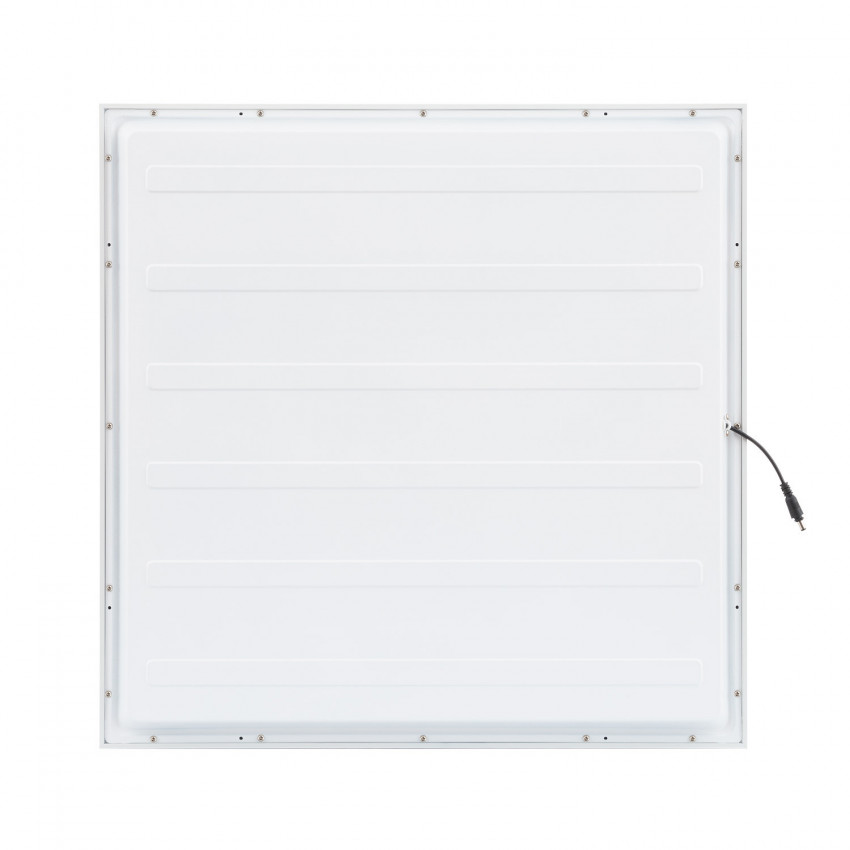

60x60cm 40W LED Panel 4000lm LIFUD

Download technical datasheet

Ref. Ledkia: 71237

5 reviews stars(14)

5 out of 5 stars

Trustpilot summary stars
Reviews

Colour Temperature No Flicker Neutral White 4000K

Box Format Industrial

In Stock, delivery in 24/48h

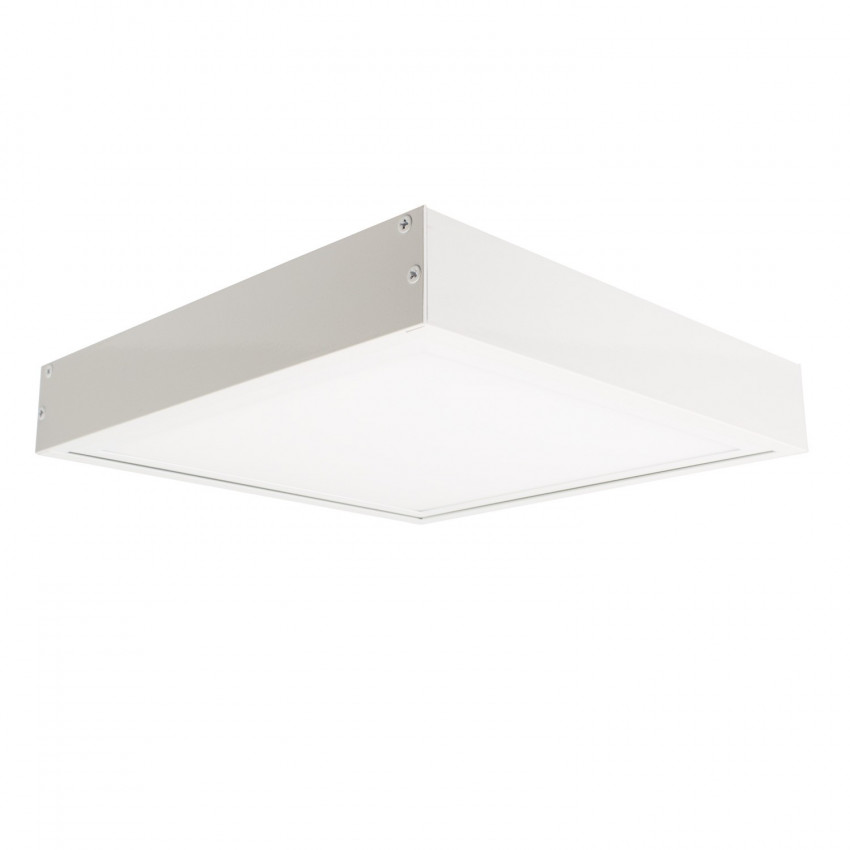

60x60cm 40W LED Panel 5200lm High Lumen LIFUD

Premium range

£27.99

£13.19

VAT included
Energetic efficiency

Minimum order 10 units

In Stock, delivery in 24/48h

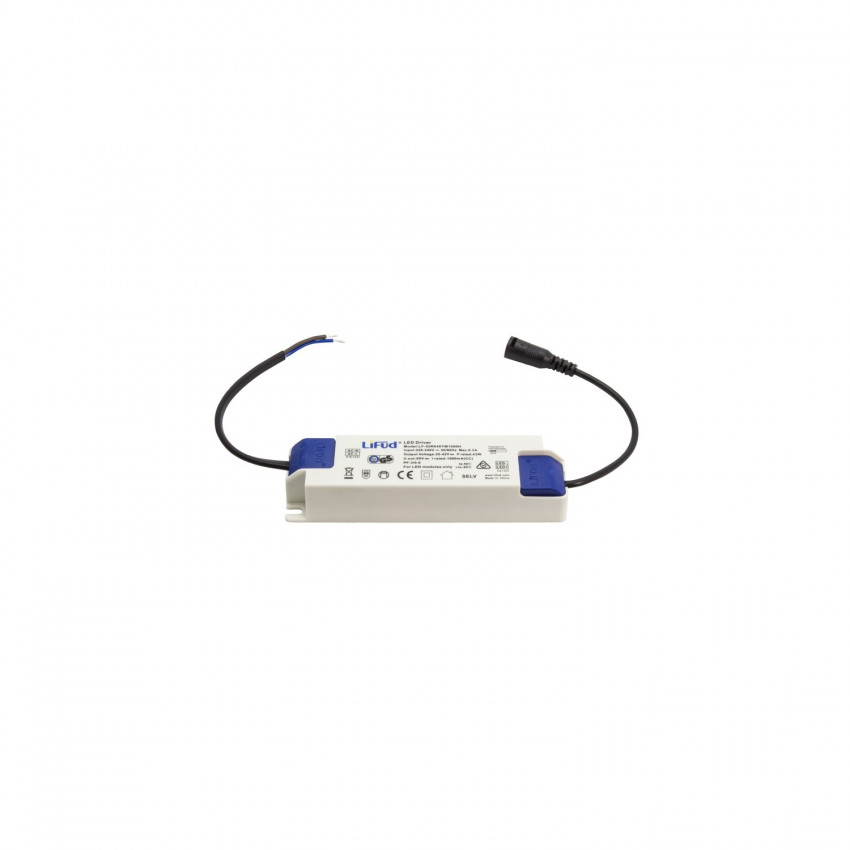

Includes Driver

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 Day Return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-sales service.

    • 24h Free Delivery

      If you place your order today before 2:30 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £ 49.99 (incl. VAT).


      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-sales service.

Dimensions

  • Depth595 mm
  • Height30 mm
  • Weight1.2 kg
  • Width595 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificateCertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+45 °C
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, TÜV, ENEC
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature4000K
    • DimmableNo
    • Driver BrandLIFUD
    • Driver Intensity1000 mA
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension33 V-40 V
    • Electrical Insulation ClassII
    • Fitting MaterialAluminium, PC
    • Frame60x60 cm
    • Frequency50-60 Hz
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR 19
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours50.000 hours
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK05
    • InstallationFalse ceiling
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • Light ColourNeutral White
    • Lumens4000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency100 lm/W
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage85-265V AC
    • Power Factor0.9
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage40 W

  • Product Data

    • Guarantee5 years
    • Product SeriesOrigin

  • Product Information

    • Light SourceSMD2835
    • LocationIndoor
    • Replaceable Light SourceYes
    • Type Of LensOpaal
Big discounts on ceiling fans

Description

The 60x60cm 40W 4000lm (UGR19) LED Panel with white frame combines a very modern design with excellent light efficiency and quality. This panel is particularly suitable for offices and work areas due to its low glare factor.

The light source of the LED panel has a luminance of 4000 lumens which is equivalent to that which would be emitted by a conventional 80W luminaire. In this way, a very important saving is achieved compared to this type of traditional low consumption luminaires. It supports multi-voltage between 85V 265V AC and an ambient working temperature range of -20ºC to 45ºC.

Applications of the 60x60cm 40W 4000lm (UGR19) LED Panel

Suitable for lighting offices thanks to its low glare. The glare caused by lighting can have a negative influence on people, because a comfortable lighting environment is needed to help us in our tasks. A low UGR level increases the feeling of well-being of workers, which contributes to the level of productivity indirectly.
Low levels of glare are recommended in all places where people spend long periods of time exposed to artificial light, and are very important in offices, educational centres, work areas, etc.

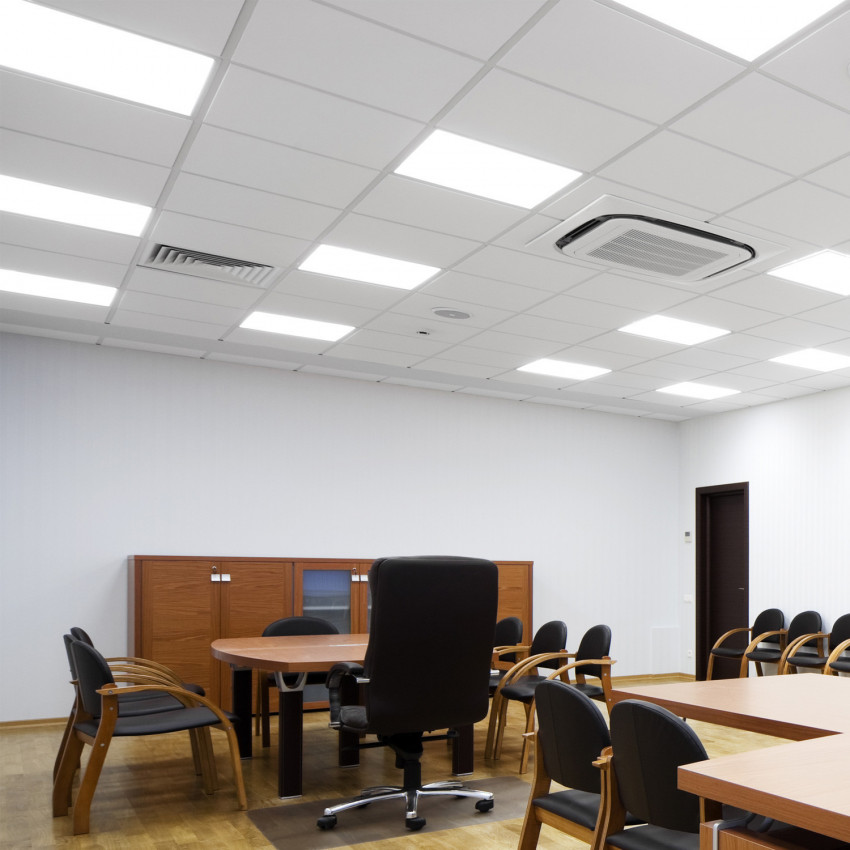

Specially designed for installation in technical ceilings, it is used above all in commercial or work spaces such as: hotels, restaurants, supermarkets, exhibition halls, museums or offices. It provides a high quality and very uniform light that improves working conditions. It also includes an opal diffuser that reduces glare.

Enjoy the best LED lighting with the most advanced and efficient products on the market, such as the 60x60cm and 40W LED panel with a white frame offered at our online shop, Ledkia.

* They are installed in a removable false ceiling. Other installation options are available in the accessories section.
