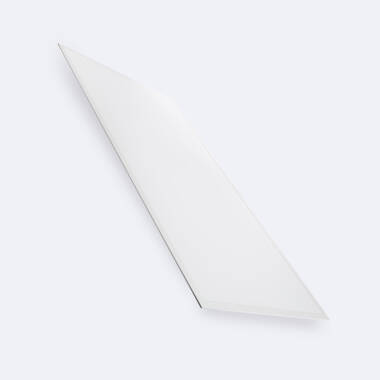

1200x600mm 72W Solid LED Panel 7200lm

The 1200x600mm 72W Solid LED Panel delivers 7200 lumens of high-quality light with an integrated driver and a wide 120º beam angle. Designed for indoor use, it features a glare control factor of UGR <22 ensuring comfortable visual environments.

General information about 1200x600mm 72W Solid LED Panel 7200lm

This LED panel is constructed with a slim aluminium and PC frame, measuring 1195 mm x 595 mm x 34 mm, and incorporates an opal lens for uniform light distribution. It operates at a nominal voltage range of 176 V to 264 V and a power factor of 0.90, ensuring efficient electrical performance. The panel offers an efficacy of 100 lm/W and a colour rendering index (CRI) of 80, providing reliable and natural colour reproduction. It complies with CE, ENEC, RoHS, and TÜV certifications, and features an IK02 impact resistance rating. The panel is designed for installation in false ceilings and is part of the LED panel series tailored for budget-sensitive projects.

Use and applications

This LED panel is ideal for office environments, providing functional and efficient lighting for workstations due to its controlled glare factor and high luminous output. It suits indoor applications within the offices sector, where consistent lighting quality is essential for productivity. Additionally, its slim profile allows integration in false ceilings commonly found in commercial buildings.

The panel functions reliably within an ambient temperature range of -20 °C to +50 °C and operates on a standard 220-240V AC supply. Its design does not include dimming capabilities but includes a built-in driver for stable operation. This solution is appropriate for professional indoor spaces requiring durable and efficient illumination.

Key benefits

• High luminous efficacy of 100 lm/W for energy-efficient lighting.
• Glare control with UGR <22, enhancing visual comfort in work environments.
• Robust aluminium and PC construction providing mechanical protection (IK02).
• Wide 120º beam angle ensuring uniform light distribution.
• Certified quality with CE, ENEC, RoHS, and TÜV compliance.

Highlighted specifications

Power factor: 0.90; Colour rendering index: 80; Impact resistance: IK02; Ambient working temperature: -20 °C to +50 °C.

Installation and maintenance

Installation is designed for false ceiling mounting, following the indicated system for secure fitting. The panel includes a pre-installed driver for straightforward electrical connection. Care should be taken during installation to ensure proper support and avoid mechanical stress. Disconnect the power supply before any intervention. Regular maintenance involves cleaning the opal lens to preserve optimal light output and checking electrical connections for safety and performance.

Frequently asked questions

• Is the panel dimmable? — The panel does not support dimming functionality.
• Can it be used outdoors? — This product is intended for indoor use only.
• Does it include a driver? — Yes, the panel includes a built-in driver.
• What is the expected lifetime? — The panel has a rated life of 50,000 hours.
