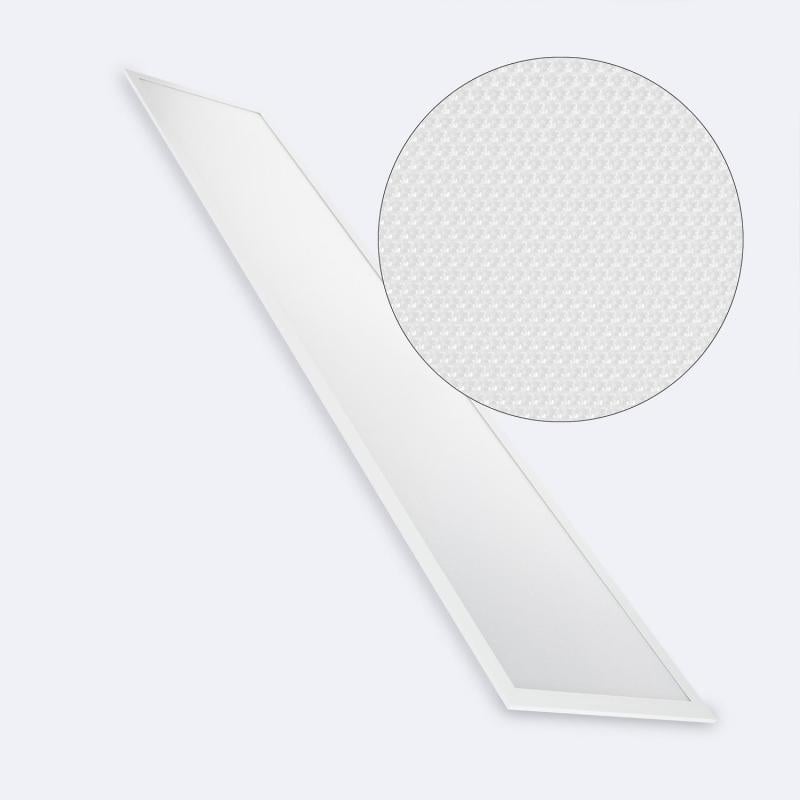

1200x300mm 40W Microprismatic LED Panel 4000lm LIFUD

The 1200x300mm 40W Microprismatic LED Panel delivers 4000 lumens of uniform light output and incorporates a reliable LIFUD driver, ensuring consistent performance and precise control. This LED panel features a microprismatic lens for effective glare control with a UGR below 19, making it suitable for professional indoor environments.

General information about 1200x300mm 40W Microprismatic LED Panel 4000lm LIFUD

This LED panel is constructed with an aluminium frame combined with PC materials, providing a robust and lightweight design. It features an IP40 rating and IK05 impact resistance, offering protection against dust and moderate mechanical impacts. Equipped with a LIFUD driver, the panel operates at 40 W power consumption with a luminous efficiency of 100 lm/W. Its microprismatic lens ensures controlled light distribution and reduced glare, enhancing visual comfort. The panel has a beam angle of 120º and is designed for installation in false ceilings, measuring 1195 mm x 295 mm x 30 mm.

Use and applications

This LED panel is designed to provide efficient lighting solutions in indoor office environments, particularly suited for professional settings such as offices due to its controlled glare (UGR <19) and high luminous output. It supports customer service and workstation areas by delivering uniform illumination that enhances work conditions, thanks to its high CRI of 80 and consistent light quality.

Operating within a temperature range of -20 °C to +50 °C and compatible with standard 220-240 V AC mains, it is ideal for installation in false ceilings and other indoor spaces requiring reliable lighting. Its IK05 protection ensures durability against minor impacts, making it a practical choice for busy office zones. The panel’s integration with the Origin series provides flexibility for recessed, surface, or suspended mounting, adapting to various project requirements.

Key benefits

• Provides uniform and efficient light output thanks to a luminous efficiency of 100 lm/W.
• Ensures visual comfort with a microprismatic lens and UGR below 19, reducing glare in workspaces.
• Incorporates a highly reliable LIFUD driver for stable performance and control.
• Features robust construction with aluminium and PC materials, offering durability and lightweight design.
• Suitable for professional indoor applications with IP40 and IK05 protection against dust and impacts.

Highlighted specifications

Power: 40 W; Luminous flux: 4000 lm; Colour rendering index (CRI): 80; Beam angle: 120º.

Installation and maintenance

The panel is designed for installation in false ceilings, compatible with recessed, surface, or suspended mounting systems. Installation should follow the specified mounting procedures to ensure secure fitting and optimal performance. The panel’s electrical insulation class II guarantees safety during installation and operation. Disconnect the power supply before any intervention. Regular maintenance involves cleaning the microprismatic lens to maintain light quality and checking connections for secure electrical contact.

Frequently asked questions

• What type of driver does the panel use? — It uses a LIFUD driver known for reliability and stable output.
• Is the panel dimmable? — This model is not dimmable.
• What protection ratings does the panel have? — It features IP40 for dust protection and IK05 for impact resistance.
• Can the panel be used outdoors? — It is designed for indoor use only.
• What is the expected lifespan? — The panel operates for up to 50,000 hours.

Specialized lighting distribution in United Kingdom. If you are looking to buy 1200x300mm 40W Microprismatic LED Panel 4000lm LIFUD with a professional warranty, it is a leading choice for durability and efficiency. Estimated shipping in 15 to 20 days (subject to stock availability). Quality certified by CE, ENEC, RoHS, TÜV for professional installations and projects. Check price and availability here.
