Wattage 42 W
Voltage Range 220-240V AC
Lumen 4000 lm
Type Of Dimming DALI
Wattage
42 W
Voltage Range
220-240V AC
Lumen
4000 lm
Type Of Dimming
DALI
Power Factor
0.94
Glare Factor
UGR <17
IP Rating
IP40
Battery Operated
No
Dimensions
30 mm x 1195 mm x 295 mm
Width
1195 mm
Height
30 mm
IK Protection
IK05

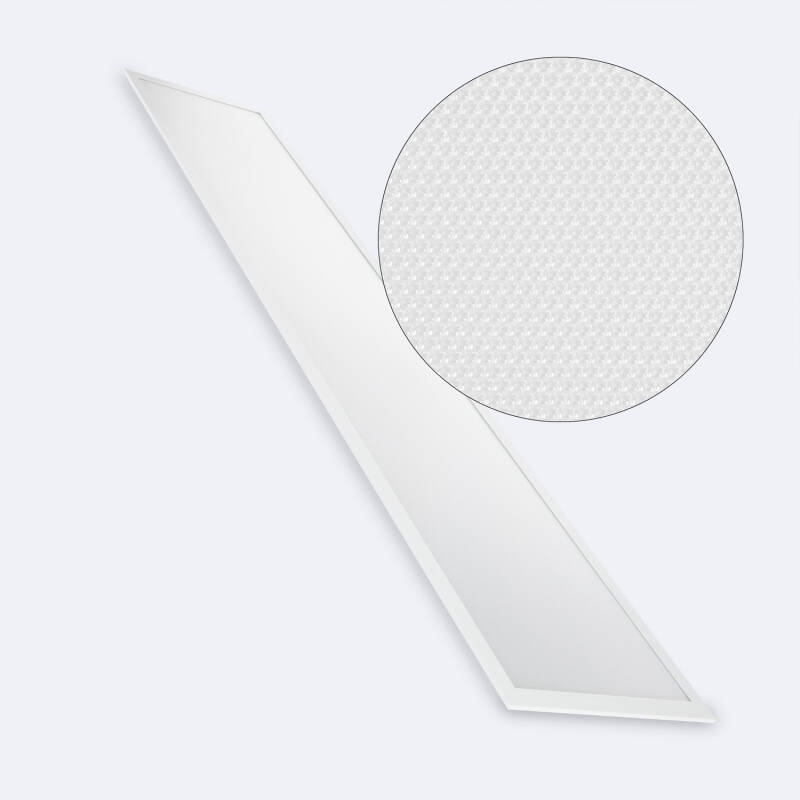

1200x30mm 40W Microprismatic UGR17 LED Panel 4000lm PHILIPS Xitanium with Quick Connection Box
Ref. Ledkia: 125216
Colour Temperature Cool White 4000K
Type Of Driver DALI
Box Format Individual
In Stock, delivery in 16-21 days
£44.99
VAT included
In Stock, delivery in 16-21 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
24h Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £49.99 (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Dimensions30 mm x 1195 mm x 295 mm
Downloads
PDF Datasheet 125216_260231 EN
DoC_125216_260231
Certificates and Stamps
Technical Specifications
Electrical Features
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceSMD2835
- Nominal Voltage220 V - 240 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Type Of DimmingDALI
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage42 W
Materials and Finishes
- Box FormatIndividual
- ColourWhite
- Fitting MaterialAluminium, PC
- Type Of LensMicroprismatic
LED Features
- Beam Angle120ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <17Low-glare products offer more comfortable lighting, suitable for extended use.
- Hours50.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourCool White
- Lumen4000 lm
- Luminous Efficiency100 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- No FlickerNo FlickerTechnology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
- Power Factor0.94
Mechanical Features
- Ambient Working Temperature50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- Frame120x30 cm
- IK ProtectionIK05Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationFalse ceiling
- IP RatingIP40The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Product Information
- CertificatesCE, RoHS, TÜV, UKCA, ENEC
- Guarantee3 years
- Product SeriesNexa
Driver Information
- Driver BrandPHILIPS Xitanium
- Driver Intensity1050 mA
- Driver Power42 W
- Driver Tension30 V-42 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of DriverDALI
- WifiNo
Description
The LED Panel offers 42 W power and integrates a PHILIPS Xitanium driver with quick connection box, ensuring efficient performance and reliable control. Featuring a microprismatic lens and UGR <17, it provides high visual comfort in professional spaces.
General information about 1200x30mm 40W Microprismatic UGR17 LED Panel 4000lm PHILIPS Xitanium with Quick Connection Box
This LED panel is constructed with an aluminium and PC frame combining durability and lightweight design. It features an IP40 rating and IK05 protection for moderate resistance to dust and impacts. The microprismatic lens ensures controlled glare with a UGR below 17, optimising visual comfort. The panel delivers a luminous efficiency of 100 lm/W and a lumen output of 4000 lm, powered by a PHILIPS Xitanium driver known for its reliability. Its dimensions of 30 mm x 1195 mm x 295 mm allow versatile installation options including recessed, surface-mounted, or suspended setups. The electrical insulation is class II, and it operates within a voltage range of 220-240 V AC.
Use and applications
This LED panel is designed to provide effective lighting solutions for indoor environments such as offices, where workstations require consistent and comfortable illumination. It suits office settings by combining a microprismatic lens with a UGR <17 to reduce glare, enhancing visual ergonomics for prolonged tasks. Additionally, it fits professional business sectors prioritising efficient and durable lighting, supported by the PHILIPS Xitanium driver and a power factor of 0.94.
Operating reliably at ambient temperatures up to 50 °C, this panel is compatible with false ceiling installations common in commercial and educational buildings. Its IK05 rating offers protection against minor impacts, ensuring durability in busy indoor spaces. This solution addresses lighting needs where glare control and energy efficiency are essential for ergonomic and safe environments.
Key benefits
- Glare control thanks to the microprismatic lens and UGR <17, improving visual comfort.
- High luminous efficiency of 100 lm/W delivering bright illumination with reduced energy consumption.
- Durability ensured by an aluminium and PC frame combined with IK05 impact protection.
- Reliable performance through the PHILIPS Xitanium driver with quick connection box.
- Versatile installation options including recessed, surface, or suspended mounting.
Highlighted specifications
Power: 42 W; Luminous flux: 4000 lm; Colour rendering index: 80; Beam angle: 120º; Electrical insulation class: II.
Installation and maintenance
This LED panel is designed for installation in false ceilings, facilitating integration into standard commercial interiors. The quick connection box simplifies electrical connections, reducing installation time and complexity. Maintenance is minimal due to the long lifespan of 50.000 hours, supported by the robust aluminium and PC construction. Disconnect the power supply before any intervention. Proper handling and adherence to installation instructions ensure optimal performance and safety.
Frequently asked questions
- What type of driver does this panel use? — It incorporates a PHILIPS Xitanium driver with quick connection box for reliable control.
- Is the panel suitable for office lighting? — Yes, it is designed with UGR <17 for glare control in office environments.
- What is the expected lifespan of the panel? — The panel operates for up to 50.000 hours.
- Can it be installed in suspended ceilings? — Yes, it supports recessed, surface-mounted, and suspended installations.
