IP Rating IP55
Dimensions 165 mm x 120 mm x 72 mm
Width 120 mm
Height 165 mm
IP Rating
IP55
Dimensions
165 mm x 120 mm x 72 mm
Width
120 mm
Height
165 mm
IK Protection
IK07
IP65 Waterproof Surface Junction Box 165x120x72mm
Ref. Ledkia: 4508
(3)4.5 out of 5 stars
Colour Grey
£3.79
VAT includedIn Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 Day Returns
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
24h Free Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £ 49.99 (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
See alternatives
Dimensions
- Height165 mm
- Depth72 mm
- Dimensions165 mm x 120 mm x 72 mm
- Width120 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Technical Specifications
Technical Information
- CertificatesRoHS, CE, UKCAQuality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
- ColourGreySpecification of the color of the product or its light (in the case of products such as lamps or light bulbs), which may affect the aesthetics and functionality of its use.
- IK ProtectionIK07Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationSurfaceInformation on how the product should be placed or mounted, such as instructions on whether it requires professional installation or is easy to do by the end user.
- IP RatingIP55The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoorSpecification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
Product Data
- Warranty3 yearsPeriod during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
Description

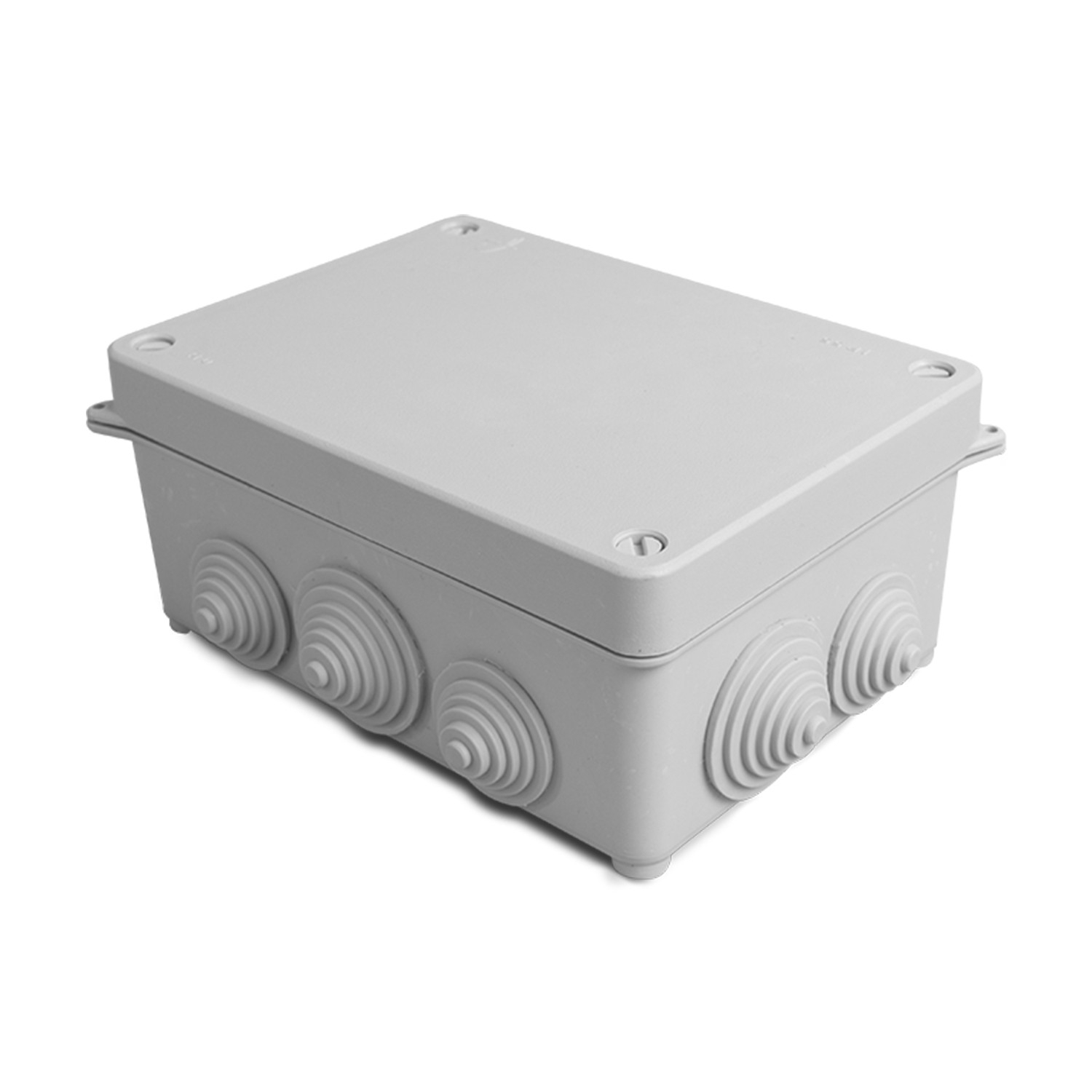

This IP65 Waterproof Surface Junction Box 165x120x72mm is perfect for installation in any sort of environment.
It features 9x cones that make it easier to access the wires (Up to 4x 32mm and 5x 25mm cables). The box is grey coloured. The lid is closed using 1/4 screws and can be sealed. The bottom of this Waterproof Surface Junction comes ready to be installed on many surfaces like DIN rails or mounting frames. It has been made to follow UNE-EN 60670-1:2006 and UNE 20324:1993 normatives and also has IP55 and IK07 Protection.Working temperature: -25ºC (+60ºC).
This Waterproof Surface Junction Box 165x120x72 mm is also fire-proof (incandescent filament at 650º). 70ºC ball-pressure.
