  • IP67
    IP Rating IP67
  • IK08
    IK Protection IK08
  • Technopolymer
    Fitting Material Technopolymer
  • SCAME
    Brand SCAME

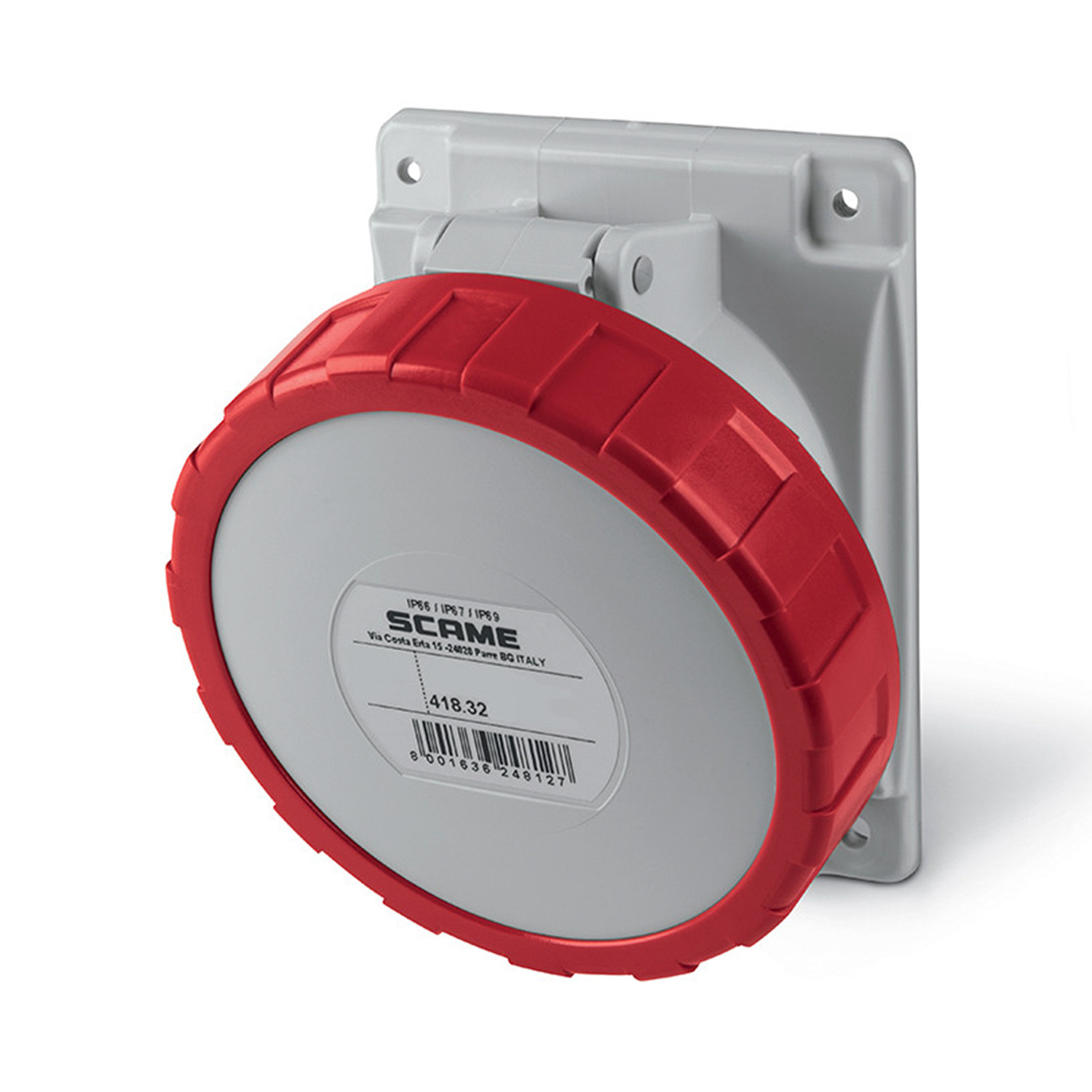

Image of SCAME Optima Series 32 A Watertight Wall Base - IP67
    Image of SCAME Optima Series 32 A Watertight Wall Base - IP67
    Image of SCAME Optima Series 32 A Watertight Wall Base - IP67
    Image of SCAME Optima Series 32 A Watertight Wall Base - IP67
1 / 3
  • IP67

    IP Rating

    IP67

  • IK08

    IK Protection

    IK08

  • Technopolymer

    Fitting Material

    Technopolymer

  • SCAME

    Brand

    SCAME

  • 32 A

    Current Intensity

    32 A

SCAME

SCAME Optima Series 32 A Watertight Wall Base - IP67

SCAME
Download technical datasheet

Ref. Ledkia: 36367

Ref. Fab: BECE-CLA-4183266

Number Of Poles 3P + TT

Before £16.29

-27% (You save £4.40)

£11.89

VAT included

In Stock, delivery in 15-20 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

  • 30 Day Returns

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 24h Free Delivery

    If you place your order today before 2:30 pm, delivery within 24/48h (working days).


    Shipping is free on purchases over £ 49.99 (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

See alternatives

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+45 °C
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, UKCA
    • Current Intensity32 A
    • Electrical Insulation ClassI
    • Fitting MaterialTechnopolymer
    • Frequency50-60 Hz
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK08
    • InstallationRecessed
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP67
    • Number Of Poles3P + TT

  • Product Data

    • Manufacturer or company responsible for designing and producing the product. A recognized name ensures quality and support.
      BrandSCAME
    • LocationOutdoor, Indoor
    • Warranty3 years
Outdoor LED bollard

Description

Manufactured by the prestigious brand Scame, world leader in the production of industrial electrical equipment, this wall base allows you to connect your load or receiver to an industrial type plug, commonly used in secondary or manufacturing sector. It is specially designed to be surface mounted to the distribution box.

This device complies with the European standards EN 60309-1-2, EN 60309-1-2/A1, EN 60309-1-2/A2. It supports a nominal intensity of up to 32 A and has a higher factor against complete water immersion (does not filter water at depths of 1m for 30 minutes) with an IP protection factor of IP67 making this product completely watertight.

The most frequent applications and use for these type of products (plugs, sockets, bases, frames, etc.) extend to industrial environments such as chemical industries, agriculture, construction, shipyards, sports facilities, public events, the food industry, airports, port areas and water treatment, etc. In all these environments it is necessary to use products with great durability, reliability, ease of wiring, high degree of IP and IK protection and optimum resistance to atmospheric agents and chemicals.

For the insertion of the conductor cable, these plugs and sockets use screw terminals, screw clamps and spring terminals depending on the application of the product. Cable clamps with tulip locks are used to secure the cables, guaranteeing water-tightness and safety. In general they guarantee safe and optimal use in the most adverse conditions.

It complements the electrical installation of any space. Take a look at our wide range of different sockets, consumer units, adapters and electrical material available at LEDKIA.

Wiring Operations

Nominal Intensity (A)

Minimum Pin Size
Mobile Extenders
and socket connector (mm²)

Maximum Pin Size
Mobile Extenders
and socket connector (mm²)

Minimum Size, Fixed Base (mm²)

Maximum Size, Fixed Base (mm²)

External Diameter Min. cable gland (mm)

External Diameter Max. cable gland (mm)

16

1

2,5

1,5

4

8

15

32

2,5

6

2,5

10

11,5

21

63

6

16

6

25

17

31

125

16

50

25

70

26

48
