Voltage:
400V AC, 220-240V AC
IP Protection:
IP20
Size:
36x85x66.5 mm
Width:
85 mm
Height:
36 mm
Warranty:
3 Years
Goodwe SMART METER 24h Consumption Analyser Meter Kit for Zero Discharge
Ref. Ledkia: 98029
Ref. Fab: HK1000
Choose Electric Voltage
Single-Circuit
£163.99
20% VAT includedIn Stock, estimated delivery from 15-25 days
Are you a lighting professional or a company?
- Great discounts on RRP
- Extended warranty
- Exclusive services
Buy now, pay later
Credit payment30 Day Return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
24h Free Delivery
If you place your order today before 16:30h, delivery within 24/48h (working days).
Shipping is free on purchases over £ 49.99 (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
Don't forget the accessories 8
Single-Phase Solar Inverter SAJ R5 Grid Injection 1.5-8 kW
In Stock, estimated delivery from 15-25 days
7 options£471.79
Single-Phase Hybrid Solar Inverter SAJ H1 48V Pylontech Battery Charger Grid Injection 3.6-6 kW
In Stock, estimated delivery from 15-25 days
2 options£1,633.79
Three-Phase Hybrid Solar Inverter SAJ H2 High Voltage Pylontech Battery Charger 10 kW
In Stock, delivery in 15-20 days
1 options£2,761.19
Three-Phase Solar Inverter SAJ R6 Grid Injection 20-40 kW
In Stock, estimated delivery from 15-25 days
4 options£2,070.99
3-5 kW Single Phase GoodWe EM Hybrid Solar Inverter Battery Charger with Grid Injection
In Stock, estimated delivery from 20-30 days
3 options£1,449.59
4.6-6.5 kW Single Phase GoodWe ES Hybrid Solar Inverter Battery Charger with Grid Injection
In Stock, estimated delivery from 20-30 days
2 options£1,610.79
3-5kW Single Phase GoodWe NS Solar Inverter for Self-consumption Grid Injection
In Stock, estimated delivery from 20-30 days
3 options£828.39
10-25kW Three Phase GoodWe DT Self-Storage Inverter Grid Injection
In Stock, delivery in 15-20 days
3 options£1,507.19
Dimensions
- Total Weight:0.44 kg
- Size:36x85x66.5 mm
- Height:36 mm
- Width:85 mm
- Length:66.5 mm
Downloads
Technical Data Sheet PDF
Manual HKXXXX
Datasheet HK1000
Datasheet HK3000
Certificates and Stamps
Technical Specifications
- Voltage:400V AC, 220-240V AC
- Multi-Voltage:230-400V AC
- Frequency:50-60 Hz
- Protection Class:II
- Use:Indoor
- IP Protection:IP20
- Installation:Track
- Size:36x85x66.5 mm
- Height:36 mm
- Width:85 mm
- Length:66.5 mm
- Total Weight:0.44 kg
- Working Temperature:-25ºC ~ +60ºC
- Number of modules:4
- Warranty:3 Years
- Certifications:CE & RoHS, TÜV, VDE
Our advantages
Team of experts at your service
Personal customer service
24-hour express delivery
Stock of more than 12,000 references
Warranty up to 5 years
Our professionals guarantee you the highest quality and reliability
Best price guarantee
Compared to the most outstanding websites in the industry
Description
The Goodwe SMART METER 24h Consumption Analyser Meter Kit for zero discharge is a necessary accessory to configure the injection to 0 of GoodWe inverters, as well as in inverters of any brand. We have two models, the three-phase model HK3000 and the single-phase HK1000 with which you can measure the current discharged to the grid.

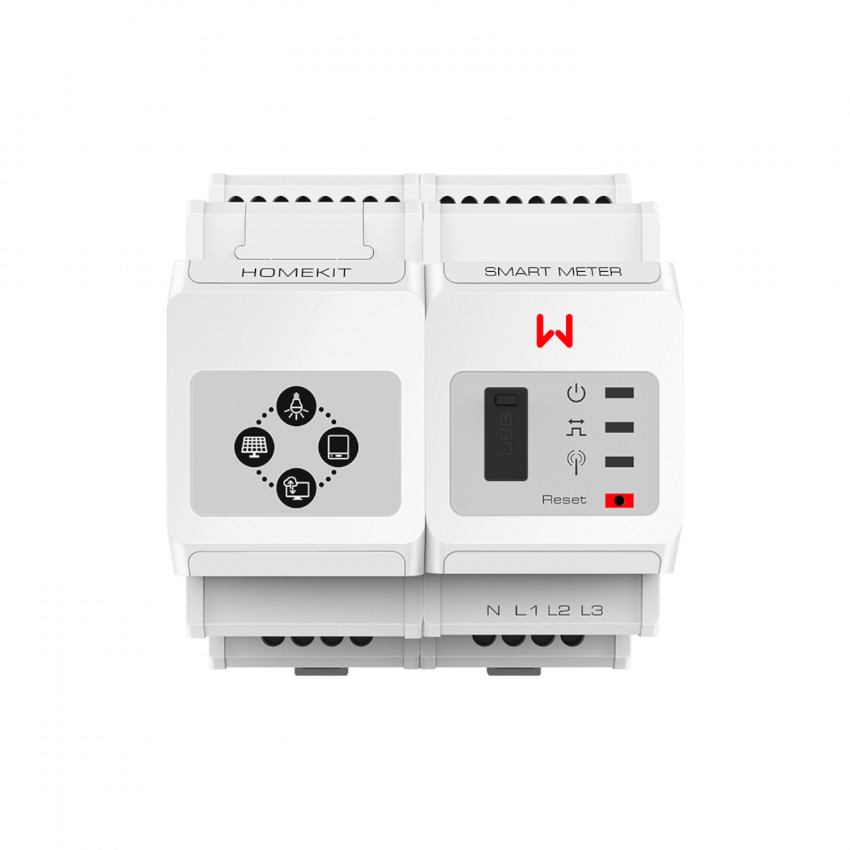

The Goodwe SMART METER 24h Consumption Analyser Meter Kit for zero discharge consists of a communication module (HomeKit) and a digital meter for 24-hour electricity consumption monitoring (Smart Meter). This analyzer is able to measure the consumption of the home or industry, constantly adapting the power delivered by the photovoltaic system to the consumption of the installation. It is a necessary accessory if we wish to configure the self-consumption photovoltaic installation so that it does not feed energy into the electricity grid.
The meter is connected as follows: The WiFi antenna is connected to the upper part of the communication module and the connection for the LAN network is connected to the lower part.
For the single-phase model, two current transformers (CT) are connected to the upper part of the Smart Meter: CT1 is connected to the grid connection point, while CT2 is connected to the inverter output. For the three-phase model, three current transformers (CT) are connected to the top of the Smart Meter, TC1, TC2 and TC3, all three are connected to the grid connection point.
Mode of operation: For example, if the house consumes 3 kW and the solar plant is generating 2 kW the meter would only consume 1 kW from the meter. On the other hand, if there are surpluses, the meter can discharge to the grid or zero discharge depending on the configuration that we have made.
It is ideal for the pricing of the energy of your home or company and on the other hand, it allows you to manage the surplus production of the photovoltaic installations of self-consumption "On grid", performing zero injection or controlled injection depending on the needs of the moment. The portal where we consult this monitoring and management data is the platform called SEMS. Communication between the inverter and the analyser meter is via an RS485 interface and it is with this protocol that the meter informs the inverter whether there is discharge or not. The meter is mounted on DIN rail and can measure a multitude of electrical quantities and also performs bidirectional energy measurement calculating: kWh and kVArh.
