Wattage 20 W

1 / 2

Wattage
20 W
Voltage Range
220-240V AC
Type Of Dimming
DALI, Push button
Power Factor
0.95
IP Rating
IP20
Dimensions
122 mm x 40 mm x 25 mm
Width
40 mm
Height
122 mm
Fitting Material
PC
Dimmable
Yes

Wattage 20 W

20 W
In Stock, delivery in 24/48h

£25.49

VAT included

In Stock, delivery in 24/48h

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

See alternatives

Dimensions

Height122 mm
Depth25 mm
Dimensions122 mm x 40 mm x 25 mm
Width40 mm

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

Technical Information
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+45 °C
- Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
  CertificatesRoHS, CE, UKCA
- It indicates that the product allows parameters such as light intensity, speed or color temperature to be adjusted, providing greater flexibility and customization.
  DimmableYes
- Level of electrical current that the driver is capable of handling to power components, such as LEDs, ensuring safe and efficient operation.
  Driver Intensity250 mA-500 mA
- Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
  Driver Tension9 V-42 V
- Level of electrical protection of the product against shocks. Indicates whether it is suitable for different conditions of use, guaranteeing safety in the installation.
  Electrical Insulation ClassII
- Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
  Fitting MaterialPC
- Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
  Frequency50-60 Hz
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP20
- Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
  LocationIndoor
- Indicates the electrical efficiency of the product by measuring the relationship between the useful power and that consumed. A value close to 1 represents more efficient consumption.
  Power Factor0.95
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
- Indicates how much energy the light source consumes, measured in watts (W). In LED lighting, the power is much lower than in traditional sources, and is related to the light intensity (lumens).
  Wattage20 W
Product Data
- Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
  Warranty3 years
Product Information
- System used to control product characteristics, such as intensity regulation, color temperature or speed, adjusting its performance according to the user's needs.
  Type Of DimmingDALI, Push button

Description

Driver of the prestigious company LIFUD specially designed for LED panels, LED downlights, LED panels and LED ceiling lights because it incorporates the Jack connector. An LED driver is responsible for transforming the alternating current from the mains into direct current suitable for making the LED chips shine. To find out if a driver is going to work with our luminaire, PCB or panel we should consult the voltage and output current of the driver.

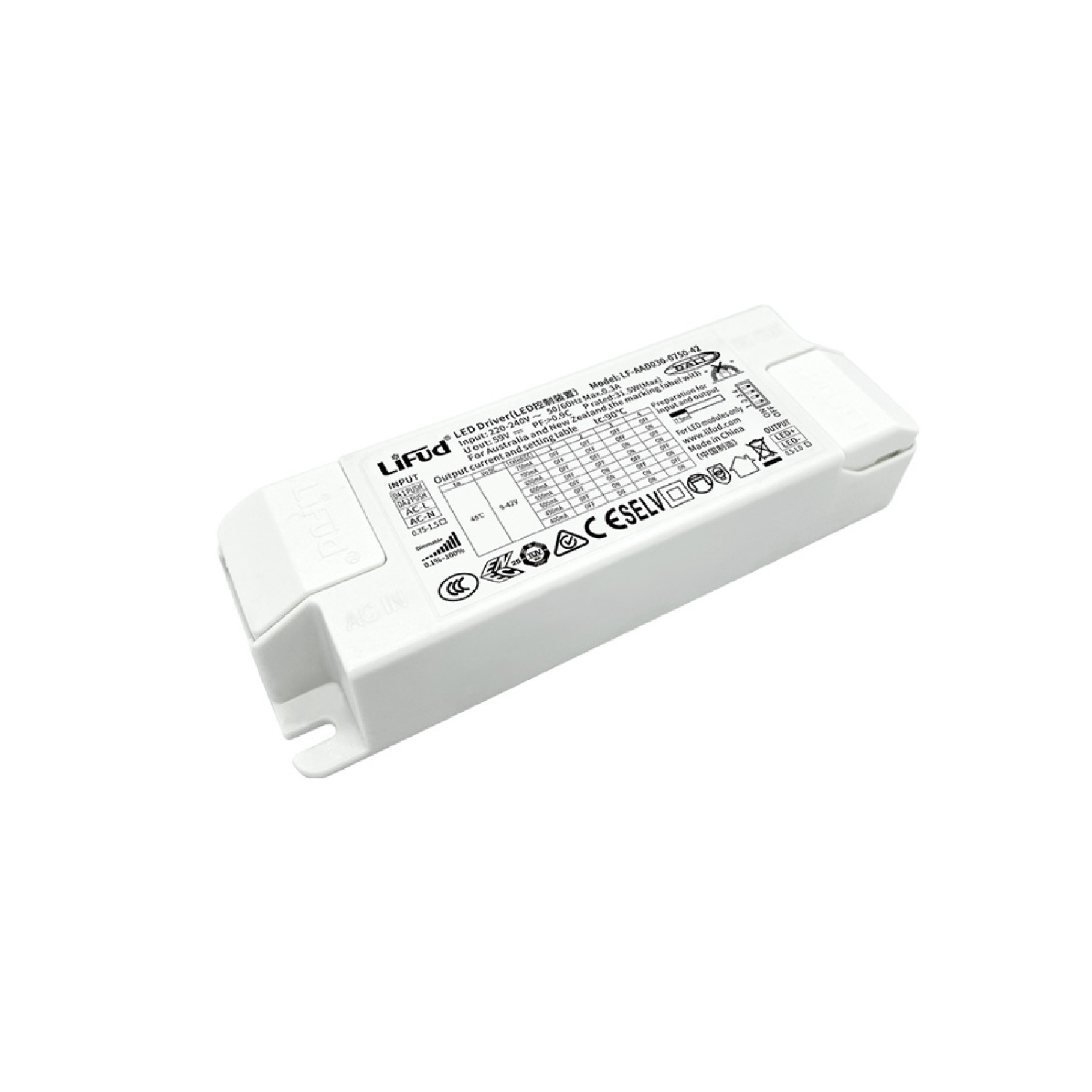

Features of the 220-240V LIFUD Dimmable DALI No Flicker Driver 9-42V Output 250-500mA 2.25-21W LF-AAD020

This driver has a multi-voltage input. This means that it is able to withstand surges and dips in line voltage for a short period of time without damage. In addition, its output is also multi-voltage which means that it can deliver a constant voltage within a range allowing the same driver to be used for various applications with different current and voltage requirements. This driver allows us to control the luminaire via the DALI (Digital Addressable Lighting Interface) system. DALI is a common interface that allows us to dim, program on/off, automate and generate timers. A DALI network consists of a DALI controller and one or more DALI Drivers. This is useful for saving energy and adapting to different scenarios. Its power factor is very high, making it a very efficient driver.

However, these drivers feature the additional PUSH functionality, allowing you to control the light intensity directly from a conventional push button. This enables you to switch the light on and off, as well as dim it, without the need for a DALI master, making it easier to adapt the installation to a control system using conventional push buttons, without altering the existing infrastructure.
