Voltage Range 220-240V AC
Type Of Dimming TRIAC
Power Factor 0.9
IP Rating IP20
Voltage Range
220-240V AC
Type Of Dimming
TRIAC
Power Factor
0.9
IP Rating
IP20
Dimensions
145 mm x 45 mm x 30 mm
Width
45 mm
Height
145 mm
Fitting Material
PC
Dimmable
Yes
180-240V TRIAC Dimmable Driver 36-55V Output 880mA 40W
Ref. Ledkia: 598
Before £27.29
£18.49
VAT includedIn Stock, delivery in 24/48h
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 Day Returns
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-sales service.
24h Free Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £ 49.99 (incl. VAT).
Full conditions here: Delivery methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-sales service.
See alternatives
Dimensions
- Height145 mm
- Depth30 mm
- Dimensions145 mm x 45 mm x 30 mm
- Width45 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Technical Specifications
Technical Information
- Ambient Working Temperature-20 °C~+40 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- CertificatesRoHS, CE, UKCAQuality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
- DimmableYesIt indicates that the product allows parameters such as light intensity, speed or color temperature to be adjusted, providing greater flexibility and customization.
- Driver Intensity880 mALevel of electrical current that the driver is capable of handling to power components, such as LEDs, ensuring safe and efficient operation.
- Driver Tension36 V - 55 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Electrical Insulation ClassIILevel of electrical protection of the product against shocks. Indicates whether it is suitable for different conditions of use, guaranteeing safety in the installation.
- Fitting MaterialPCComposition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
- Frequency50-60 HzRange of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoorSpecification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
- Power Factor0.9Indicates the electrical efficiency of the product by measuring the relationship between the useful power and that consumed. A value close to 1 represents more efficient consumption.
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Product Data
- Warranty3 yearsPeriod during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
Product Information
- Type Of DimmingTRIACSystem used to control product characteristics, such as intensity regulation, color temperature or speed, adjusting its performance according to the user's needs.
Description

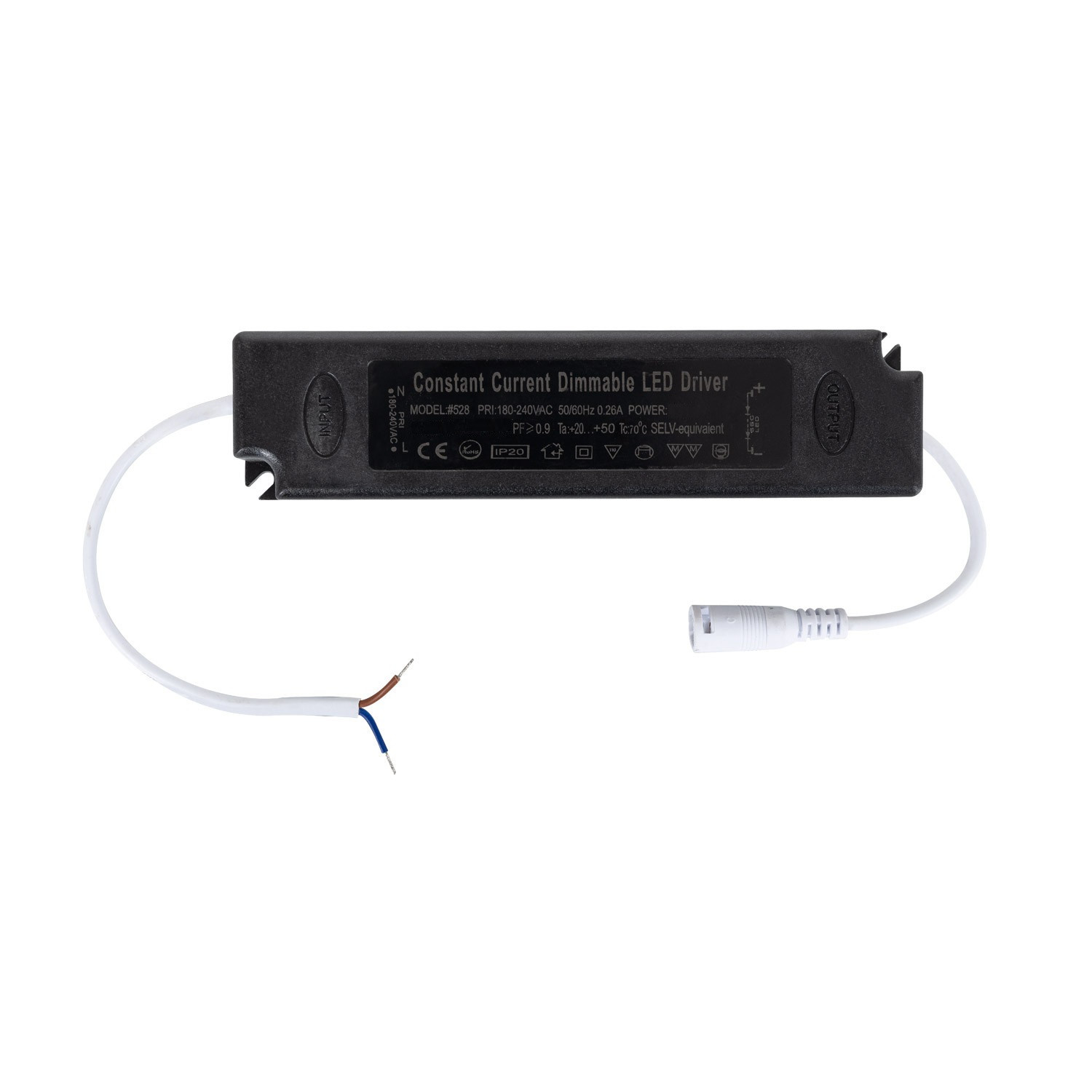

This Universal driver is specially designed for LED panels and recessed or surface mounted LED downlights because it incorporates a jack connector. An LED driver is responsible for transforming the alternating current from the mains into direct current capable of illuminating the LED chips. To know if a driver is going to work with our luminaire, PCB or panel you should consult the voltage and the output current of the driver.
Characteristics of the 40W 36-55V Output 180-240V 880mA TRIAC Dimmable Driver
This driver has a multi-voltage input. This means that it is able to withstand high and low line-voltage for a short period of time without damage. In addition, its output is also multi-voltage which means that it can deliver constant voltage within a range allowing the same driver to be used for various applications with different current and voltage requirements. Once the driver is powered, the voltage will be automatically adjusted and the output voltage will be constant. The TRIAC dimmable driver must be used in conjunction with a TRIAC LED dimmer which will allow you to easily select the desired light intensity. Its power factor is very high, making it a very efficient driver.
Discover our wide range of drivers available at Ledkia, our online LED shop.
*The customer's visual perception of sizes, colours, textures, and so on, of our products, can be affected by factors such as ambient lighting, screen calibration, viewing angle or the device of each user. The customer must bear in mind that any returns made for reasons not related to the functionality of the product will be at the customer's expense.
