This product is discontinued

Below you can find the substitute product or some equivalents.

If you have any queries, please call us on telephone 020 3739 1978.

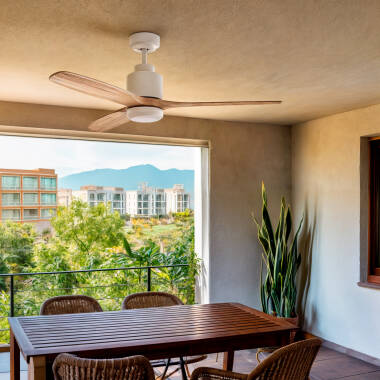

Image of Mersin White Outdoor Silent Ceiling Fan with DC Motor for Outdoors in White 132cm
Image of Mersin White Outdoor Silent Ceiling Fan with DC Motor for Outdoors in White 132cm
Image of Mersin White Outdoor Silent Ceiling Fan with DC Motor for Outdoors in White 132cm
Image of Mersin White Outdoor Silent Ceiling Fan with DC Motor for Outdoors in White 132cm
Image of Mersin White Outdoor Silent Ceiling Fan with DC Motor for Outdoors in White 132cm
Image of Mersin White Outdoor Silent Ceiling Fan with DC Motor for Outdoors in White 132cm

Dimensions

  • Diameter1320 mm
  • Height370 mm
  • Ceiling Rose Dimensions60 mm x Ø150 mm
  • Weight7.2 kg

Videos

  • How to Install a Fan
  • How to Synchronize Two Fans with the Same Remote Control

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    Instruction Manual

  • pdf file

    DoC_117471_244941

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • ConfigurationWith light
    • Electrical Insulation ClassI
    • Fan Wattage40 W
    • Frequency50-60 Hz
    • Number Of Speeds6
    • Remote ControlYes
    • Sound level range20 dB - 40 dB
    • Speed Range75 RPM - 200 RPM
    • Function that reverses the fan's rotation to optimize air circulation according to the season. In summer, it helps to cool, and in winter, it distributes heat more efficiently.
      Summer/Winter ModeYes
    • Switch TypeRemote
    • Type Of DimmingRemote Control
    • Type Of MotorDC
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+50 °C
    • InstallationSurface
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP44
    • LocationOutdoor, Indoor
    • Recommended AreaLarge (more than 20 m²)
  • Product Information

    • BrandTECHBREY
    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years
    • Product SeriesMersin
  • Driver Information

    • ConnectivityRF
    • WifiNo
  • Materials and Finishes

    • Blade ColourWood
    • ColourWhite / Wood
    • Fitting MaterialWood, Metal
    • IncludesRF remote control

Description

The Mersin White Outdoor Silent Ceiling Fan with DC Motor for Outdoors in White 132cm  incorporates a light source with LED technology and CCT of 15W power. Its minimalist and elegant appearance makes it a decorative and functional element.

The fan incorporates a DC motor that stands out for its lightness, durability, efficiency and low energy consumption. Some of the advantages of a fan with DC motor compared to a fan with AC motor are:

- Extremely quiet and wobble-free fan. Thanks to its DC motor we can reduce the sound emitted by the fan, up to 50% compared to AC motors, making the fan perfect for rest, study and work rooms.

- Low consumption. Fans with DC motors consume up to 70% less energy than those with AC motors, which means savings on your household electricity bill.

- They are quicker to start up, change speed and stop. In addition, it incorporates 6 speed modes compared to the 3 or 4 speeds of AC motors.


- It also has an IP44 protection factor that makes this fan resistant to dust and water splashes, and it can be installed both indoors and outdoors.

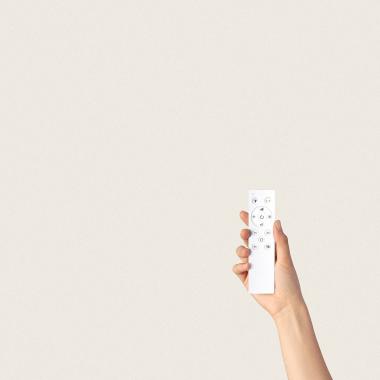

It has a remote control with 6 functions:

- Switching on and off
- Colour temperature selection (Warm-Neutral-Cool)
- Light regulation
- 6 speeds
- Timer 1/2/4 hours
- Summer/Winter function
- IP44 protection

The Air Dual technology or Reverse System provides the fan with 2 operating modes (summer/winter). With this system, the direction of rotation of the motor and the blades is reversed, dissipating the hot air in summer and distributing the heat evenly in winter, which improves the thermal sensation, optimises the operation of the heating system and contributes to energy saving.

It integrates CCT LED light, which allows us to change the colour temperature between 3 types of light (warm light, cold light and neutral light) and create various atmospheres according to the needs.

To synchronise the driver with the remote control, connect the fan to the mains and press the ON/OFF button on the remote control for 8 seconds.

The Mersin Silent Ceiling Fan is a perfect way to keep the rooms in your home cool and bright without having to install an air conditioner.

* This fan is capable of cooling an area larger than 18 m².

What does CCT (correlated colour temperature) mean?

When a product is marked as CCT it means that we can change the colour temperature. CCT is defined in degrees Kelvin, according to the colour perception of a white LED to the human eye, we can differentiate between 3 types of colour; a warm light, a neutral light and a cool light, from 2700-3500K, 4000-4500K and 5000-6500K respectively. The CCT values do not indicate anything about the colour rendering capability of the LED.

*Includes a spare long shaft that allows you to extend your fan by 10cm.
