Weimar
Weimar Silent Ceiling Fan with DC Motor for Outdoors in White 132cm
£155.99
Ref: 117463
|Manuf. ref.: CMVTSN-RX52-132-WDCL
(11)4.5 out of 5 stars
Configuration With light
-
Without light
-
With light
Switch Type Remote
In Stock, delivery in 24/48h
Includes RF remote control
Buy now, pay later
Credit paymentDimensions
- Diameter1320 mm
- Height255 mm
- Weight7.1 kg
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Technical Specifications
Product Information
- ConnectivityRF
- LocationOutdoor, Indoor
- Recommended AreaLarge (more than 20 m²)
- Sound level range20 dB - 40 dB
- Speed Range80 RPM - 200 RPM
- Switch TypeRemote
- Type Of DimmingRemote Control
- Type Of MotorDC
Product Data
- BrandTECHBREYManufacturer or company responsible for designing and producing the product. A recognized name ensures quality and support.
- Guarantee3 years
- Product SeriesWeimar
Technical Information
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- CertificatesRoHS, CE, UKCAQuality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
- ColourWhite
- DimmableYes
- Electrical Insulation ClassI
- Fan Wattage40 W
- Fitting MaterialMetal
- Frequency50-60 Hz
- InstallationSurface
- IP RatingIP44The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- Number Of Speeds6
- Summer/Winter ModeYesFunction that reverses the fan's rotation to optimize air circulation according to the season. In summer, it helps to cool, and in winter, it distributes heat more efficiently.
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Description

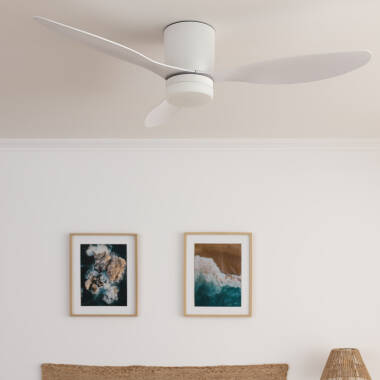

The Weimar White Silent Ceiling Fan 132cm with 40W power offers the option to add a light source featuring LED technology and 15W CCT power. It presents a classic and elegant appearance, making it both a decorative and functional element.
The fan incorporates a DC motor known for its lightweight design, durability, efficiency, and low energy consumption. Some advantages of a fan with a DC motor compared to one with an AC motor are:
- An extremely silent and stable fan. Thanks to its DC motor, the noise emitted by the fan is reduced by up to 50% compared to AC motors, making it perfect for rest, study, and work areas.
- Low consumption. Fans with DC motors consume up to 70% less energy than those with AC motors, resulting in savings on your household electricity bill.
- They are quicker to start, change speed, and stop. Additionally, they feature 6 speed settings compared to the 3 or 4 speeds of AC motors.
- Furthermore, it has an IP44 protection rating, making this fan resistant to dust and water splashes, suitable for both indoor and outdoor installation.
It comes with remote control featuring 6 functions:
- On and off
- Colour temperature selection (Warm-Neutral-Cool) (Models with Light)
- Light dimming (Models with Light)
- 6 speeds
- Timer for 1/2/4 hours
- Summer/Winter function
Using Air Dual technology or the Reverse System, the fan offers 2 operating modes (summer/winter). This system reverses the direction of the motor and blades, dissipating warm air during summer and evenly distributing heating in winter, improving thermal comfort, optimising heating efficiency, and contributing to energy savings.
Models with light feature an integrated CCT LED panel, allowing you to change the colour temperature among 3 types of light (warm, cool, and neutral) to create different atmospheres according to your needs.
To synchronise the driver with the remote control, connect the fan to the power supply and press the ON/OFF button on the remote control for 8 seconds.
The Weimar White Ceiling Fan is a perfect way to keep your home’s rooms cool and illuminated without needing to install air conditioning.
* This fan can climatise an area larger than 18 m².
What does CCT (correlated colour temperature) mean?
When a product is labelled as CCT, it means you can change the colour temperature. CCT is defined in degrees Kelvin, based on the perceived colour of a white LED to the human eye. We can distinguish three colour types: warm light, neutral light, and cool light, at 2700-3500K, 4000-4500K, and 5000-6500K respectively. CCT values do not indicate anything about the LED’s colour rendering capability.
