This product is discontinued

Below you can find the substitute product or some equivalents.

If you have any queries, please call us on telephone 020 3739 1978.

Voltage Range 24V DC
Cut Points 10 cm
LED Strip Installation 10 m
Type Of Dimming Controller

1 / 2

Voltage Range
24V DC
Cut Points
10 cm
LED Strip Installation
10 m
Type Of Dimming
Controller
IP Rating
IP20
Battery Operated
No
Dimensions
3 mm x 10 mm x 5 m
Width
10 mm
Height
3 mm
Fitting Material
PCB, Epoxy Resin, Silicone
Dimmable
Yes

Dimensions

Width10 mm
Height3 mm
Length5 m

Downloads

Technical Data Sheet PDF
manual_tiras_led_6_idiomas
DoC_62314_122293

Certificates and Stamps

Technical Specifications

Electrical Features
- Electrical Insulation ClassIII
- LED Strip Installation10 m
- Light SourceSMD5050
- Mains connectionTransformer
- Type Of DimmingController
- Voltage level required for the product to function correctly.
  Voltage Range24V DC
Mechanical Features
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+50 °C
- Measurement at which the product can be cut.
  Cut Points10 cm
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP20
- LocationIndoor
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesCORE-10
LED Features
- Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
  Hours40.000 hours
- Light ColourRGB
- Number of LEDs Per Metre60 led/m
- Power Per Meter13.6 W/m
Materials and Finishes
- ColourWhite
- Fitting MaterialPCB, Epoxy Resin, Silicone
Driver Information
- WifiNo

Description

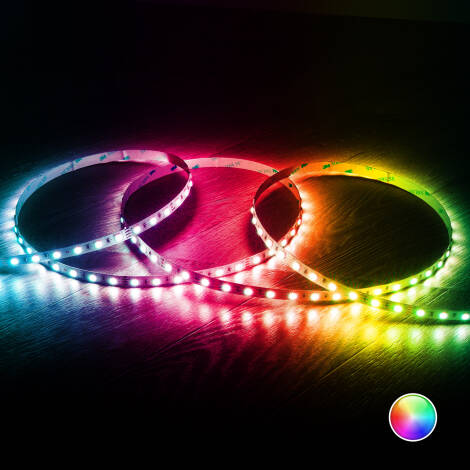

.The 5m 24V DC SMD5050 60LED/m IP20 RGB LED Strip is one of the most widespread options for decorative or accent lighting with low power consumption. Its flexible design can be used in any location to add a special touch to any room.

Features of the 5m 24V DC SMD5050 60LED/m IP20 RGB LED Strip

The5m 24V DC SMD5050 60LED/m IP20 RGB LED Strip integrates 300 high-efficiency SMD5050 LEDs that consume only 12 watts per meter. The bright and colorful emitted light is distributed at an angular aperture of 120º. A power supply is required to operate. It has a lifespan of approximately 30,000 hours.

To get the most out of the strip you need a suitable RGB controller. In addition, it requires a power supply to operate.

Advantages of the 5m 24V DC SMD5050 60LED/m IP20 RGB LED Strip

Thanks to its extra flat design, this type of LED lighting achieves ideal lighting effect for all types of projects with minimal visual impact. In addition, the strip includes a 3M adhesive strip that simplifies installation on virtually any surface.

The versatility of 5m 24V DC SMD5050 60LED/m IP20 RGB LED Strip allows for a variety of applications, such as accent lighting, decorative lighting or path illumination. It can be used in spaces such as facades, gazebos, corridors, showcases, shelves, etc.

*Never turn on the LED strips when they are coiled, this could cause overheating and burn the LEDs.

*The customer's visual perception of sizes, colours, textures, and so on, of our products, can be affected by factors such as ambient lighting, screen calibration, viewing angle or the device of each user. The customer must bear in mind that any returns made for reasons not related to the functionality of the product will be at the customer's expense.

5m 24V DC SMD5050 60LED/m IP20 RGB LED Strip 10mm Wide
