12V AC/DC Surface Mounted 20W Submersible XtraPool LED Pool Light IP68
£82.01
£98.42
Ref: 64936
Colour Temperature Daylight 6000K
In Stock, delivery in 24/48h
Buy now, pay later
Credit paymentDimensions
- Diameter260 mm
- Depth40 mm
Downloads
PDF Datasheet 64936_126992 EN
DoC_64936_126992
Certificates and Stamps
Technical Specifications
Mechanical Features
- Ambient Working Temperature-10 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- InstallationSurface
- IP RatingIP68The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- Maximum Depth Of Immersion1 m
LED Features
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature6000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours40.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourDaylight
- Lumen2000 lm
- Luminous Efficiency90 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Number of LEDs252
Electrical Features
- Electrical Insulation ClassII
- Voltage Range12V AC, 12V DCVoltage level required for the product to function correctly.
- Wattage20 W
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee5 years
Description

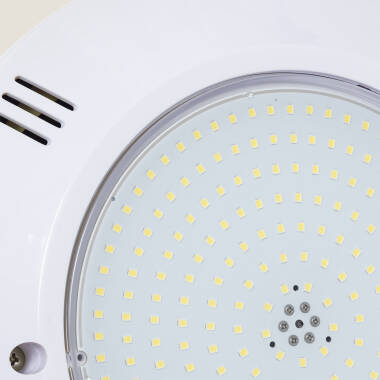

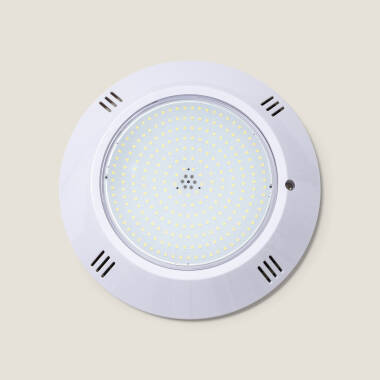

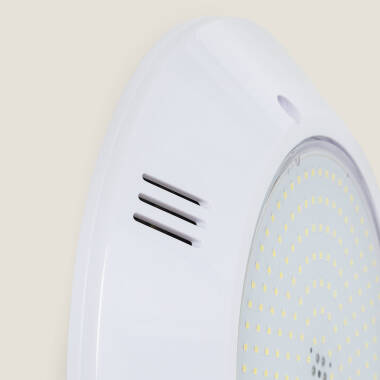

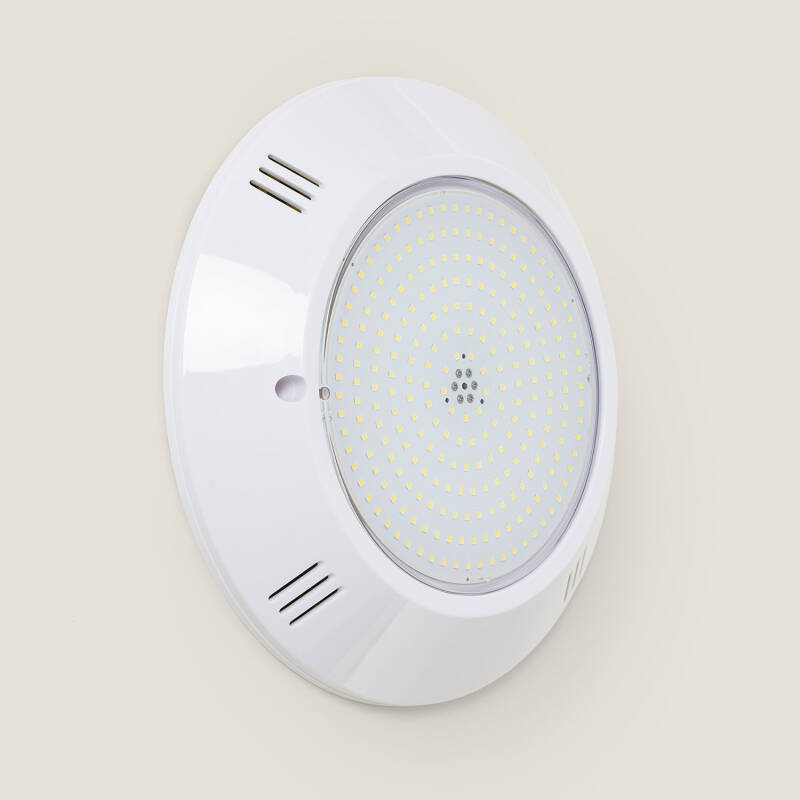

Designed as a submersible LED pool light, this 20 W luminaire operates at 12V AC/DC and incorporates a high-performance driver to ensure reliable illumination underwater. Its surface-mounted format and IP68 rating make it suitable for continuous submersion, delivering strong and efficient lighting for aquatic environments.
General information about 12V AC/DC Surface Mounted 20W Submersible XtraPool LED Pool Light IP68
This pool light features a robust construction with a polycarbonate fitting material that provides durability in wet environments. It offers a luminous flux of 2000 lumens with an efficiency of 90 lumen per watt, powered by 252 LEDs to ensure consistent light output. The product is rated IP68, guaranteeing complete protection against water ingress during submersion, and has an electrical insulation class II for enhanced safety. Its colour rendering index (CRI) of 80 ensures natural colour perception underwater. The luminaire is designed for outdoor use and surface installation, functioning reliably within an ambient temperature range of -10 °C to +50 °C. It comes with a 5-year guarantee and holds CE, RoHS, and UKCA certifications, reflecting compliance with key quality standards.
Use and applications

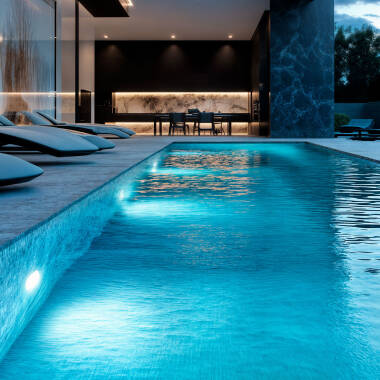

This LED pool light is intended for outdoor aquatic installations where surface mounting is preferred, such as residential or commercial swimming pools. Its IP68 protection ensures safe operation when submerged, making it suitable for pool environments that demand robust water resistance. The polycarbonate material enhances its durability in outdoor conditions, supporting installations exposed to varying temperatures within the specified range.
Thanks to its low-voltage 12V AC/DC power supply, this luminaire fits installations requiring safe electrical parameters. The combination of high luminous efficiency and a substantial number of LEDs provides effective illumination for pool areas, contributing to ambient lighting and safety. Its surface-mounted design allows for straightforward installation and maintenance, while the electrical insulation class II adds an extra layer of security for installers and users.
Key benefits
- Reliable submersion capability thanks to IP68 protection, ensuring safe underwater operation.
- Enhanced durability provided by polycarbonate fitting material, suitable for outdoor aquatic environments.
- High luminous efficiency and 252 LEDs deliver consistent and efficient illumination.
- Electrical insulation class II offers improved safety for installation and use.
- Wide ambient temperature range supports stable performance in diverse outdoor conditions.
- Certified quality with CE, RoHS, and UKCA marks for professional applications.
Highlighted specifications
Power: 20 W; Luminous flux: 2000 Lumen; IP rating: IP68; Electrical insulation: Class II; CRI: 80; Ambient temperature: -10 °C to +50 °C.
Installation and maintenance
The luminaire is designed for surface mounting in aquatic environments, following the recommended installation procedures for submersible pool lights. Installation must ensure proper sealing to maintain the IP68 protection level. Maintenance involves routine inspection to verify the integrity of the fitting and electrical connections. Disconnect the power supply before any intervention. The robust polycarbonate construction facilitates handling during installation and upkeep, contributing to long-term operational reliability.
