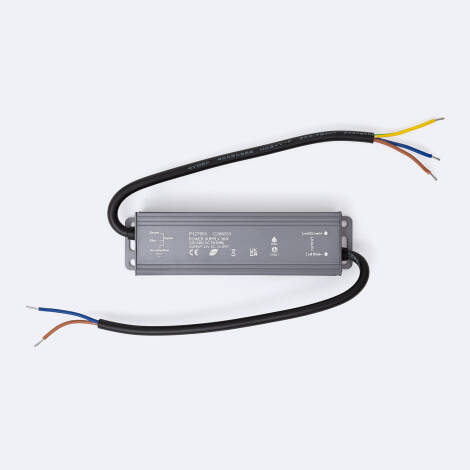

12V DC 80W 6.6A IP67 Sealed Power Supply

This AC/DC power supply delivers 80 W output at 12V DC and 6,6 A, designed for demanding environments with IP67 protection ensuring sealed operation. It incorporates electrical insulation class I and operates within a wide ambient temperature range, making it suitable for reliable outdoor installations.

General information about 12V DC 80W 6.6A IP67 Sealed Power Supply

This power supply functions as a sealed AC/DC source that converts 220-240 V AC input into a stable 12 V DC output at a current of 6,6 A. Its robust aluminium casing and IP67 rating provide dust-tight and waterproof protection, suitable for outdoor use. The unit features class I electrical insulation, enhancing electrical safety by providing an additional protective earth connection. It is engineered to operate efficiently within a temperature range from -20 °C to +50 °C, ensuring stable performance in varied environmental conditions. Compact dimensions facilitate integration in confined technical enclosures or electrical cabinets.

Use and applications

This sealed power source is designed for outdoor installations where environmental protection is critical, such as external electrical cabinets or technical enclosures in industrial or commercial sectors. Its IP67 rating ensures resistance to dust and water ingress, supporting reliable operation in exposed environments. The 220-240 V AC supply voltage and 12 V DC output make it suitable for powering low-voltage equipment requiring stable DC supply.

Thanks to its aluminium housing and class I insulation, it offers enhanced safety and durability, which are essential in installations demanding secure electrical protection. The device’s operating temperature range supports use in diverse climates. This power supply provides a dependable solution for systems requiring a sealed, weatherproof source of DC power with consistent current delivery.

Key benefits

• Ensures secure power conversion from AC to DC thanks to a sealed design with IP67 protection.
• Facilitates installation in outdoor or harsh environments by providing resistance to dust and water.
• Improves electrical safety through class I insulation and robust aluminium housing.
• Maintains stable output current under varying ambient temperatures between -20 °C and +50 °C.
• Supports flexible integration due to compact dimensions and standard input/output voltage ranges.

Highlighted specifications

Power: 80 W; Input voltage: 220-240 V AC; Output voltage: 12 V DC; Current output: 6,6 A; Electrical insulation: Class I; Protection rating: IP67; Operating temperature: -20 °C to +50 °C; Dimensions: 70 mm x 40 mm x 180 mm.

Installation and maintenance

Installation must follow the indicated mounting system to ensure proper sealing and electrical connection. The aluminium casing requires secure fixation to dissipate heat effectively. Maintenance involves regular inspection of cable integrity and sealing elements to preserve the IP67 protection. Disconnect the power supply before any intervention to guarantee safety during installation or servicing. The device is designed for straightforward integration into electrical cabinets or outdoor technical enclosures.

Disconnect the power supply before any intervention.
