Current Intensity 10 A

Current Intensity
16 A
Voltage Range
220-240V AC
IP Rating
IP20
Brand
LEGRAND
Official Warranty
LEGRAND

Current Intensity 16 A

10 A
In Stock, estimated delivery from 20-30 days
16 A
In Stock, delivery in 15-20 days
20 A
In Stock, estimated delivery from 20-30 days
25 A
In Stock, estimated delivery from 20-30 days
32 A
In Stock, estimated delivery from 20-30 days
40 A
In Stock, delivery in 15-20 days

£9.99

VAT included

In Stock, delivery in 15-20 days

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

See alternatives

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

Technical Information
- Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
  CertificatesRoHS, CE, UKCA
- Amount of electrical current that flows through the product, measured in amperes (A). It is key to ensuring safe and efficient operation.
  Current Intensity16 A
- Maximum cutting capacity on an LED strip or cable, indicating the exact range where it can be cut without affecting operation.
  Cut Power6 kA
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP20
- Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
  LocationIndoor
- Number of individual units or components that make up a modular product or that are combined to provide complete functionality.
  Number of Modules2
- Number of contacts or electrical connections that a component, such as a motor or switch, has. It is important to ensure compatibility with other devices.
  Number Of Poles1P + N
- Parameter that describes the response of an electrical protection device (such as circuit breakers) to current variations. Indicates how it acts against overloads or short circuits.
  Trigger CurveC
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
Product Data
- Manufacturer or company responsible for designing and producing the product. A recognized name ensures quality and support.
  BrandLEGRAND
- Period during which the manufacturer covers manufacturing defects, offering support and repair. Provides peace of mind and support in your purchase.
  Official WarrantyLEGRAND
- Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
  Warranty3 years

Description

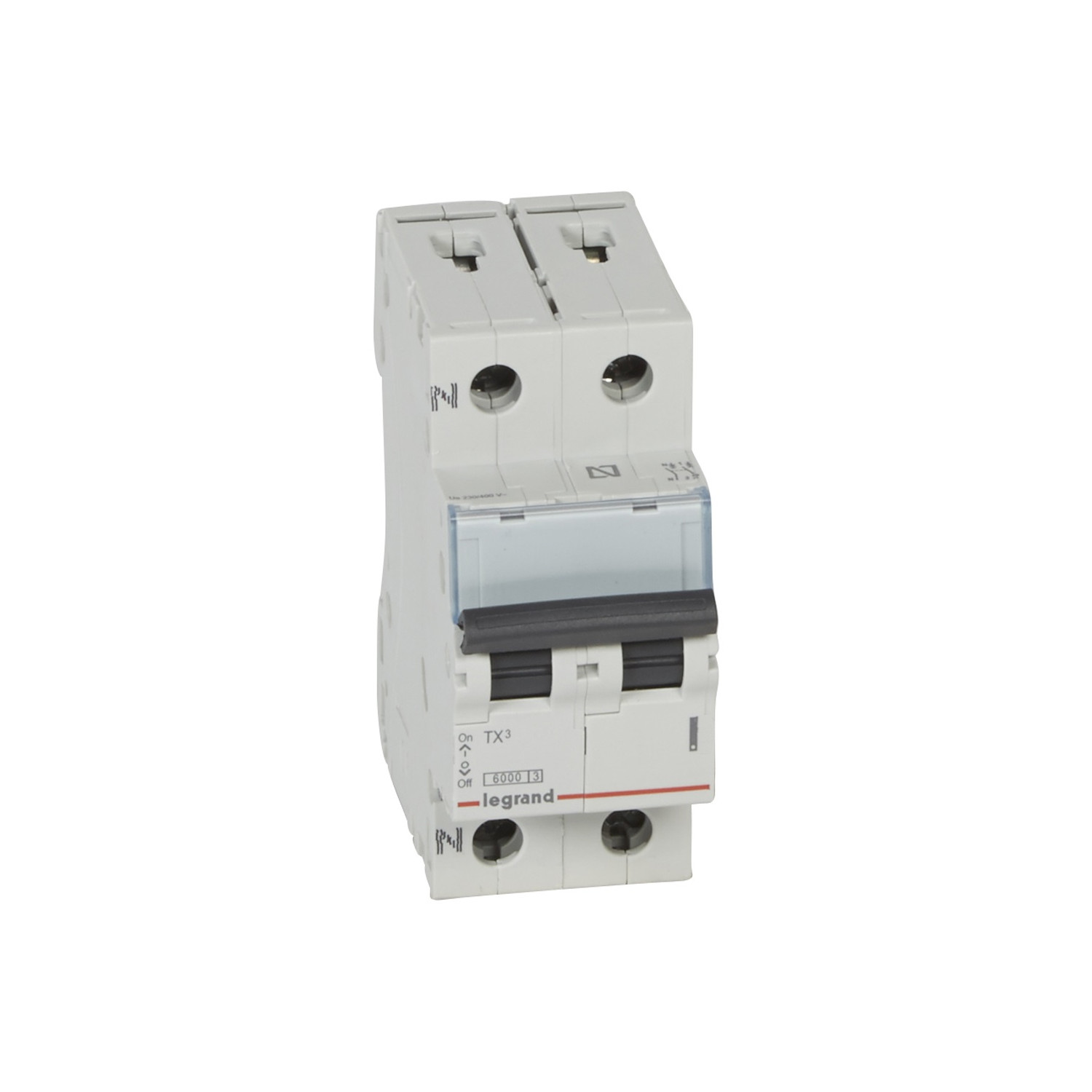

LEGRAND 403585 Curve C 6kA 10-40 A TX3 Tertiary 1P+N Thermal-Magnetic Circuit Breaker from 10 A to 40 A - C curve - Breaking capacity 6000A - Conforms to UNE EN-60898-1.

Characteristics of the LEGRAND 403585 Curve C 6kA 10-40 A TX3 Tertiary 1P+N Thermal-Magnetic Circuit Breaker

The terminal connections are protected against direct contact (IP20). Including captive screws and label holder. The clamping capacity is 25 mm² for flexible cable and 35 mm² for rigid cable. They can be fitted with DX³ motorised and auxiliary control and signalling devices.

Reference: 403585, 403586, 403587, 403588, 403589, 403590

*The customer's visual perception of sizes, colours, textures, and so on, of our products, can be affected by factors such as ambient lighting, screen calibration, viewing angle or the device of each user. The customer must bear in mind that any returns made for reasons not related to the functionality of the product will be at the customer's expense.

LEGRAND 403585 Curve C 6kA 10-40 A TX3 1P+N Industrial Thermal-Magnetic Circuit Breaker
