Range Advanced
  • 40 W
    Wattage 40 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 4800 lm
    Lumen 4800 lm
  • 80 mm
    Diameter 80 mm

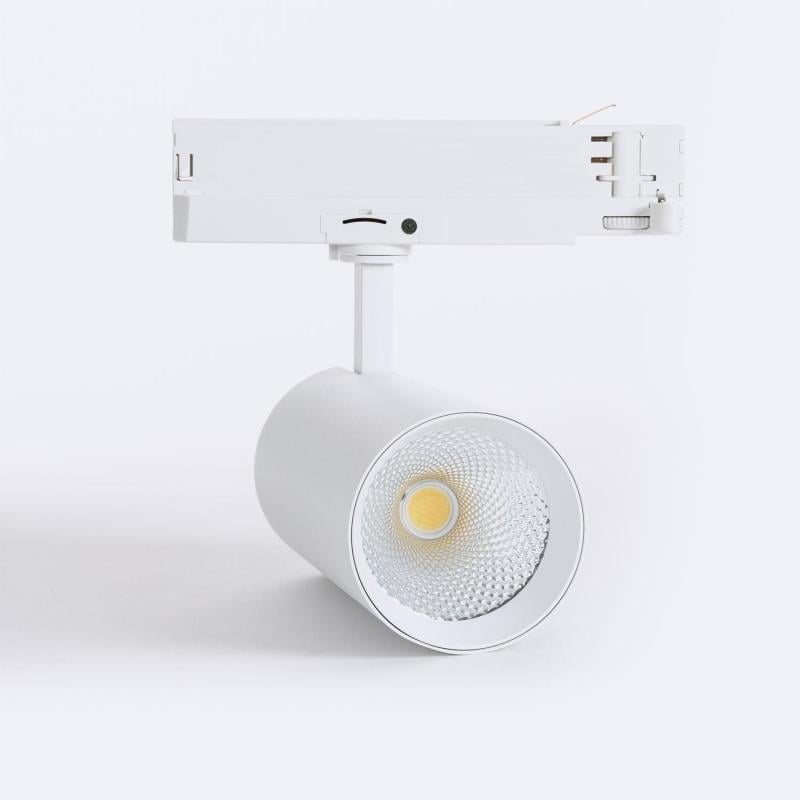

Image of 3-Circuit Track LED Spotlight 38W Carlo White
    Image of 3-Circuit Track LED Spotlight 38W Carlo White
    Image of 3-Circuit Track LED Spotlight 38W Carlo White
    Image of 3-Circuit Track LED Spotlight 38W Carlo White
    Image of 3-Circuit Track LED Spotlight 38W Carlo White
    Image of 3-Circuit Track LED Spotlight 38W Carlo White
1 / 5
  • 40 W

    Wattage

    40 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 4800 lm

    Lumen

    4800 lm

  • 80 mm

    Diameter

    80 mm

  • 0.9

    Power Factor

    0.9

  • UGR <19

    Glare Factor

    UGR <19

  • IP20

    IP Rating

    IP20

  • 250 mm x Ø80 mm

    Dimensions

    250 mm x Ø80 mm

  • 250 mm

    Height

    250 mm

  • 120 lm/W

    Luminous Efficiency

    120 lm/W

  • 36º

    Beam Angle

    36º

  • Aluminium

    Fitting Material

    Aluminium

3-Circuit Track LED Spotlight 38W Carlo White

Download technical datasheet

Ref. Ledkia: 99311

Colour Temperature Cool White 5000K

44,99 €

VAT included
Energetic efficiency

In Stock, delivery in 16-21 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 5-7 days Delivery

      If you place your order today before 18:00h, delivery within 5-7 days (working days).


      Shipping is free on purchases over 49,99 € (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

Dimensions

  • Weight1.26 kg
  • Height250 mm
  • Diameter80 mm
Scheme image

Downloads

  • pdf file

    PDF Datasheet 99311_205214 IE

  • pdf file

    DoC_99311_205214

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Electrical Insulation ClassII
    • Frequency50-60 Hz
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage40 W

  • LED Features

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle36º
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index90
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature5000K
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR <19
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Light ColourCool White
    • Lumen4800 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency120 lm/W
    • Technology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
      No FlickerNo Flicker
    • Power Factor0.9

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+65 °C
    • Ability to move or rotate the spotlight to direct the light as desired.
      DirectionalYes
    • InstallationTrack
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • LocationIndoor
    • Type Of TrackThree Phase
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-20 °C~+50 °C

  • Product Information

    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years
    • Product SeriesCarlo

  • Materials and Finishes

    • ColourWhite
    • Fitting MaterialAluminium

  • Driver Information

    • Driver BrandLIFUD
    • Driver Intensity700 mA-1050 mA
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension36 V
    • Type Of DriverLIFUD
    • WifiNo

Description

The 3-Circuit Track LED Spotlight 38W Carlo White is a high-performance track spotlight delivering 4.800 lumens with an efficiency of 120 lm/W. It incorporates a LIFUD driver and features a directional design with a 36º beam angle, optimising light focus for commercial and professional environments.

General information about 3-Circuit Track LED Spotlight 38W Carlo White

This spotlight is constructed with an aluminium fitting that ensures robustness and effective heat dissipation. It is part of the Carlo series, characterised by an elegant and compact design suitable for modern lighting projects. The product operates with a power factor of 0,9 and includes a LIFUD driver operating at 36 V and a current range of 700 mA to 1050 mA. With a CRI of 90 and a glare control factor UGR <19, it provides high visual comfort and accurate colour rendering. The spotlight is designed for indoor use and mounted on a three-phase track system, allowing flexible positioning and directional control. It offers a lifespan of 40.000 hours and complies with CE, RoHS, and UKCA certifications, ensuring quality and safety standards.

Use and applications

The 3-Circuit Track LED Spotlight is designed to provide precise and efficient illumination in indoor office environments, where high visual quality and controlled glare are essential for work comfort and productivity. Its directional functionality and 36º beam angle make it suitable for retail spaces, enhancing product visibility through focused lighting that highlights merchandise effectively.

Thanks to its compatibility with three-phase track systems and aluminium construction, it adapts well to commercial premises requiring flexible lighting layouts and robust installations. The spotlight operates reliably within a working temperature range of -20 °C to +50 °C and supports a voltage range of 220–240 V AC, making it suitable for professional projects where stable electrical performance is necessary.

Key benefits

  • High luminous efficiency thanks to 120 lm/W, optimising energy use.
  • Precise light control with a 36º beam angle and directional design for targeted illumination.
  • Excellent colour fidelity with a CRI of 90, ensuring accurate colour rendering.
  • Long lifespan of 40.000 hours, reducing maintenance frequency.
  • Robust construction in aluminium, providing durability and heat dissipation.
  • Glare control with UGR <19, enhancing visual comfort in workspaces.
  • Flexible installation on a three-phase track system for adaptable lighting configurations.

Highlighted specifications

Power: 40 W; Luminous flux: 4.800 lm; Beam angle: 36º; CRI: 90; Driver brand: LIFUD; Power factor: 0,9.

Installation and maintenance

The spotlight is installed on a three-phase track system, enabling easy mounting and repositioning without tools. Its aluminium housing facilitates heat management, contributing to stable operation and longevity. Installation must follow the indicated track system guidelines to ensure safety and optimal performance. Disconnect the power supply before any intervention.


Specialized lighting distribution in Ireland. If you are looking to buy 3-Circuit Track LED Spotlight 38W Carlo White with a professional warranty, it is a leading choice for durability and efficiency. Estimated shipping in 3 to 4 days (subject to stock availability). Check price and availability here.

Frequently asked questions

  • Is this spotlight suitable for outdoor use? — This product is designed exclusively for indoor environments.
  • Can the beam angle be adjusted? — The spotlight features a fixed beam angle of 36º.
  • Does it support dimming control? — This model is not dimmable.
  • What type of track is compatible? — It is compatible with three-phase track systems.
  • What is the expected lifespan of the LED? — The LED module has an estimated lifespan of 40.000 hours.
