Wattage 30 W
Voltage Range 220-240V AC
Lumen 3600 lm
Diameter 70 mm
Wattage
30 W
Voltage Range
220-240V AC
Lumen
3600 lm
Diameter
70 mm
Power Factor
0.9
Glare Factor
UGR <19
IP Rating
IP20
Dimensions
250 mm x Ø70 mm
Height
250 mm
Luminous Efficiency
120 lm/W
Beam Angle
36º
Fitting Material
Aluminium

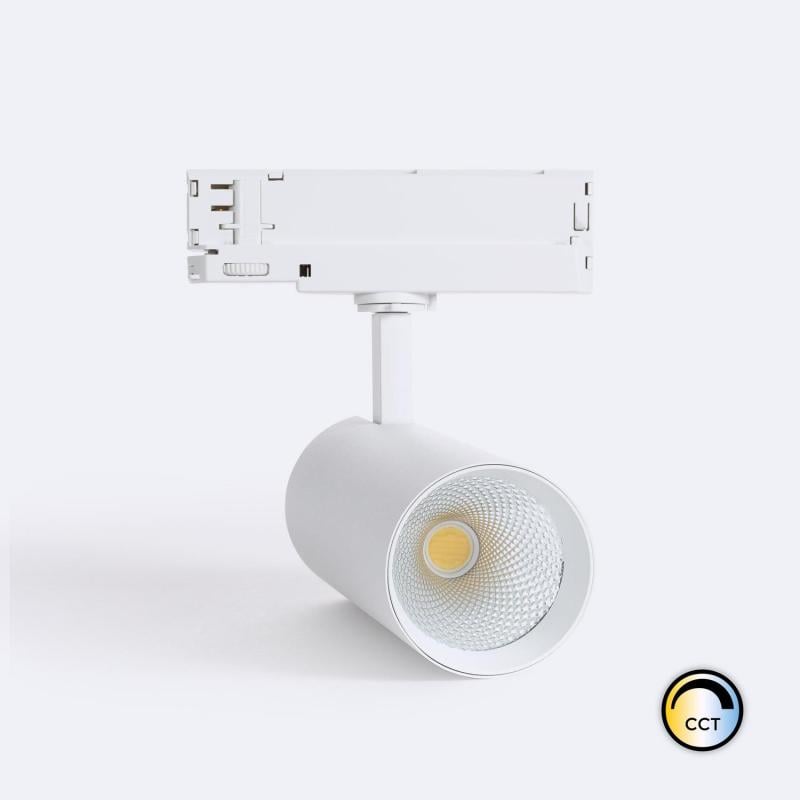

Carlo 30W CCT Selectable LED Spotlight LIFUD for 3-Circuit Track in White
Ref. Ledkia: 99284
Colour Temperature Selectable 4000K - 5000K - 6000K
40,99 €
VAT included
In Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
5-7 days Delivery
If you place your order today before 18:00h, delivery within 5-7 days (working days).
Shipping is free on purchases over 49,99 € (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Weight1.2 kg
- Dimensions250 mm x Ø70 mm
Downloads
PDF Datasheet 99284_205182 IE
DoC_99284_205182
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableNo
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage30 W
LED Features
- Beam Angle36ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index90Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature4000K - 5000K - 6000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <19Low-glare products offer more comfortable lighting, suitable for extended use.
- Hours40.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourSelectable
- Lumen3600 lm
- Luminous Efficiency120 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- No FlickerNo FlickerTechnology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
- Power Factor0.9
Mechanical Features
- Ambient Working Temperature-20 °C~+65 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- DirectionalYesAbility to move or rotate the spotlight to direct the light as desired.
- InstallationTrack
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- Type Of TrackThree Phase
- Working Temperature-20 °C~+50 °CInternal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesCarlo
Materials and Finishes
- ColourWhite
- Fitting MaterialAluminium
Driver Information
- Driver BrandLIFUD
- Driver Intensity450 mA - 800 mA
- Driver Tension36 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of DriverLIFUD
- WifiNo
Description
The Carlo 30W CCT Selectable LED Spotlight features a high-performance LIFUD driver and delivers a luminous flux of 3600 lumens with a luminous efficacy of 120 lm/W. This track spotlight offers precise directional lighting with a selectable 36º beam angle, ensuring optimal visual comfort with a UGR below 19 and a high colour rendering index of 90.
General information about Carlo 30W CCT Selectable LED Spotlight LIFUD for 3-Circuit Track in White
This spotlight is constructed with a robust aluminium housing finished in white, combining durability and an elegant aesthetic suitable for commercial interiors. It integrates a LIFUD driver designed for three-phase track systems, providing stable and efficient power management with a power factor of 0.9. The Carlo series is known for its compact design and energy-efficient LED technology, ensuring a consistent and high-quality light beam without flicker. The spotlight supports directional adjustment, facilitating precise lighting control in professional environments. Certified with CE, RoHS, and UKCA, it meets essential safety and environmental standards.
Use and applications
The Carlo 30W spotlight is designed to enhance visibility and ambiance in indoor settings such as offices and retail stores, where accurate and efficient lighting is crucial. It suits hospitality and accommodation sectors, offering focused illumination for customer service areas and display shelving thanks to its directional capabilities and high CRI. Its three-phase track mounting system allows flexible positioning, ideal for dynamic commercial spaces requiring adaptable lighting solutions.
Operating within a temperature range of -20 °C to +50 °C and compatible with 220–240V AC supply, this spotlight is built for reliable performance in typical indoor conditions. The IP20 rating confirms its suitability for protected interior installations. Its integration into existing track systems ensures easy installation and maintenance, making it a practical choice for professional lighting projects.
Key benefits
- High luminous efficacy thanks to efficient LED technology, delivering 120 lm/W.
- Excellent colour rendering with a CRI of 90, enhancing the appearance of products and spaces.
- Directional control with a selectable 36º beam angle for targeted illumination.
- Reliable LIFUD driver ensuring stable performance and power factor of 0.9.
- Compact aluminium design combining durability with a clean aesthetic for commercial interiors.
Highlighted specifications
Power: 30 W; Luminous flux: 3600 lm; Beam angle: 36º; CRI: 90; UGR <19; Power factor: 0.9; Electrical insulation class: II; Dimensions: 250 mm x Ø70 mm.
Installation and maintenance
The spotlight is designed for easy installation on three-phase track systems, allowing quick mounting and repositioning. Its aluminium construction supports heat dissipation, contributing to long-term reliability. Installation should follow the specified track system guidelines to ensure secure fitting and electrical connection. Disconnect the power supply before any intervention to guarantee safety during installation or maintenance.
Frequently asked questions
- What type of track is compatible? — It is compatible with three-phase track systems.
- Is the spotlight dimmable? — This model does not support dimming functionality.
- What is the expected lifespan? — The spotlight has an operational life of 40,000 hours.
- Can it be used outdoors? — It is intended for indoor use only, with an IP20 rating.
