Range Advanced
  • 40 W
    Wattage 40 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 4800 lm
    Lumen 4800 lm
  • 80 mm
    Diameter 80 mm

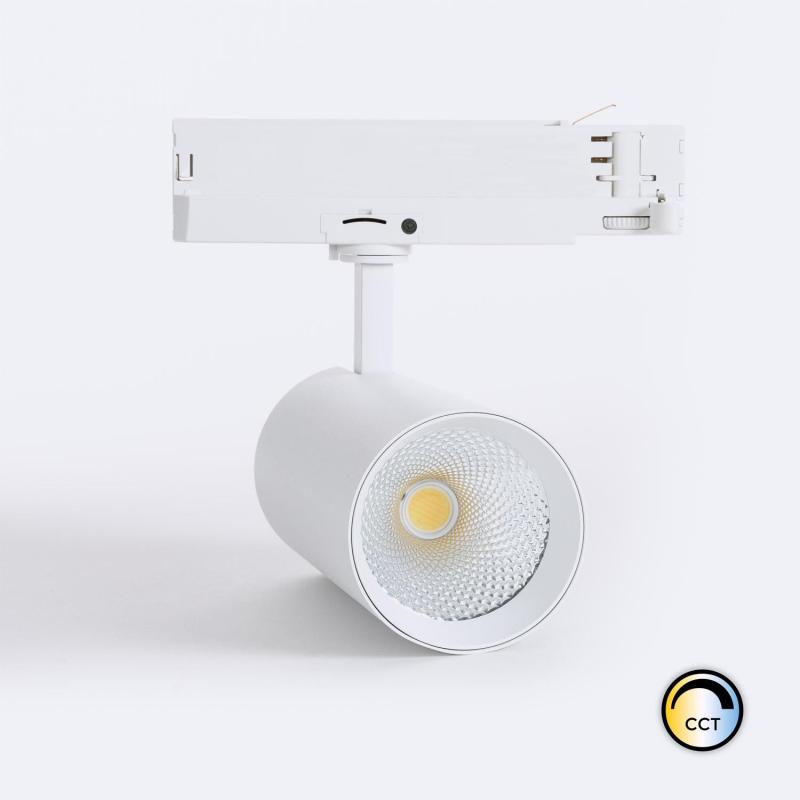

Image of Carlo 40W CCT Selectable LED Spotlight for 3-Circuit Track in White
    Image of Carlo 40W CCT Selectable LED Spotlight for 3-Circuit Track in White
    Image of Carlo 40W CCT Selectable LED Spotlight for 3-Circuit Track in White
    Image of Carlo 40W CCT Selectable LED Spotlight for 3-Circuit Track in White
    Image of Carlo 40W CCT Selectable LED Spotlight for 3-Circuit Track in White
    Image of Carlo 40W CCT Selectable LED Spotlight for 3-Circuit Track in White
1 / 5
  • 40 W

    Wattage

    40 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 4800 lm

    Lumen

    4800 lm

  • 80 mm

    Diameter

    80 mm

  • 0.9

    Power Factor

    0.9

  • UGR <19

    Glare Factor

    UGR <19

  • IP20

    IP Rating

    IP20

  • 250 mm x Ø80 mm

    Dimensions

    250 mm x Ø80 mm

  • 250 mm

    Height

    250 mm

  • 120 lm/W

    Luminous Efficiency

    120 lm/W

  • 36º

    Beam Angle

    36º

  • Aluminium

    Fitting Material

    Aluminium

Carlo 40W CCT Selectable LED Spotlight for 3-Circuit Track in White

Download technical datasheet

Ref. Ledkia: 99312

Colour Temperature Selectable 2700K - 3000K - 4000K

48,99 €

VAT included
Energetic efficiency

In Stock, delivery in 16-21 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 5-7 days Delivery

      If you place your order today before 18:00h, delivery within 5-7 days (working days).


      Shipping is free on purchases over 49,99 € (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

Dimensions

  • Weight1.26 kg
  • Dimensions250 mm x Ø80 mm
Scheme image

Downloads

  • pdf file

    PDF Datasheet 99312_205224 IE

  • pdf file

    DoC_99312_205224

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Electrical Insulation ClassII
    • Frequency50-60 Hz
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage40 W

  • LED Features

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle36º
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index90
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature2700K - 3000K - 4000K
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR <19
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Light ColourSelectable
    • Lumen4800 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency120 lm/W
    • Technology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
      No FlickerNo Flicker
    • Power Factor0.9

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+65 °C
    • Ability to move or rotate the spotlight to direct the light as desired.
      DirectionalYes
    • InstallationTrack
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • LocationIndoor
    • Type Of TrackThree Phase
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-20 °C~+50 °C

  • Product Information

    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years
    • Product SeriesCarlo

  • Materials and Finishes

    • ColourWhite
    • Fitting MaterialAluminium

  • Driver Information

    • Driver BrandLIFUD
    • Driver Intensity700 mA-1050 mA
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension36 V
    • Type Of DriverLIFUD
    • WifiNo
Sales

Description

The Carlo 40W CCT Selectable LED Spotlight is a high-performance track spotlight featuring a LIFUD driver and a precise 36º beam angle. It delivers a luminous flux of 4800 lumens with a CRI of 90, ensuring excellent colour rendering and visual comfort with UGR <19.

General information about Carlo 40W CCT Selectable LED Spotlight for 3-Circuit Track in White

This spotlight is constructed with a robust aluminium fitting, combining durability and lightweight design. It is designed for three-phase track installation, allowing flexible directional control thanks to its directional feature. The product operates at 220-240V AC with a power factor of 0.9, ensuring efficient electrical performance. The Carlo series offers compact, elegant luminaires ideal for modern lighting projects, delivering consistent and efficient light distribution. Certified with CE, RoHS, and UKCA, it meets essential safety and quality standards. The spotlight is finished in white, measuring 250 mm by Ø80 mm, and is rated IP20 for indoor use.

Use and applications

This track spotlight is designed to enhance lighting in indoor environments such as offices and hospitality venues, where precise and efficient lighting is essential. It fits perfectly in customer service areas and workstations, providing controlled light distribution with its 36º beam angle and UGR <19 for visual comfort. The product suits accommodation and retail sectors by highlighting merchandise and creating appealing atmospheres, supported by its high luminous efficiency of 120 lm/W.

Operating within an ambient temperature range of -20 °C to +65 °C, it is compatible with three-phase track systems and provides stable performance through its LIFUD driver. Its directional capability allows targeted illumination, making it a versatile solution for varied commercial lighting needs.

Key benefits

  • High luminous efficacy of 120 lm/W ensures efficient energy use.
  • Excellent colour fidelity with a CRI of 90 enhances visual clarity.
  • UGR <19 provides comfortable lighting with controlled glare.
  • Directional design allows precise light positioning.
  • Robust aluminium construction offers durability and quality finish.

Highlighted specifications

Power: 40 W; Luminous flux: 4800 lm; Beam angle: 36º; Driver brand: LIFUD; Power factor: 0.9.

Installation and maintenance

The spotlight is installed on a three-phase track system, enabling easy mounting and adjustment. Its directional feature allows precise aiming without tools. Installation must follow the specified track system guidelines to ensure secure fitting and optimal performance. The product has electrical insulation class II, providing enhanced safety during installation and operation. Disconnect the power supply before any intervention.

Frequently asked questions

  • Is the spotlight dimmable? — This model is not dimmable and operates at a fixed output.
  • Can it be used outdoors? — It is rated IP20, suitable only for indoor environments.
  • What is the lifespan of the LED? — The LED module has a rated life of 40,000 hours.
  • Does it include emergency lighting? — This product does not contain integrated emergency lighting.
